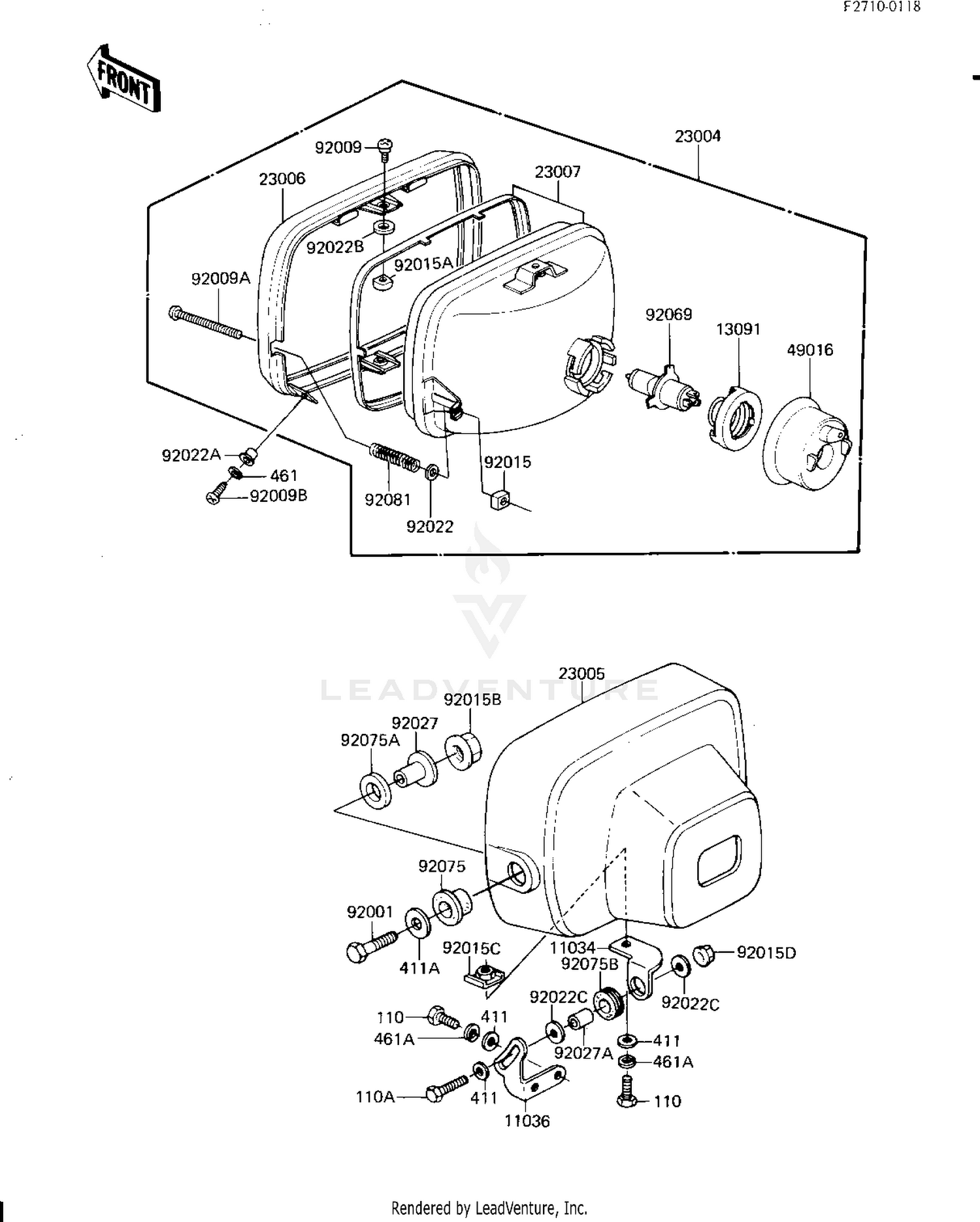

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11034
BRACKET,HEAD LAMP BDY
11034-1289
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#11036
BRACKET,HEAD LAMP
11036-1042
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,HEAD LAMP SOCK
13091-1036
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#23004
LAMP-HEAD
23004-1075
|
$526.04 | ||
|
Available to order. Add to View Price |
|||
|
#23005
BODY-COMP-HEAD LAMP,F
23005-1024-21
|
$125.63 | ||
|
Available to order. Add to View Price |
|||
|
#23006
RIM,HEAD LAMP
23006-1005
|
$79.37 | ||
|
Available to order. Add to View Price |
|||
|
#23007
LENS-COMP
23007-1041
|
$232.38 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER,HEAD LAMP SOCKE
49016-1023
|
$14.28 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT 8X38
92001-1405
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW-PAN HEAD,5X12
23019-023
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,HEAD LAMP LENS
92009-1047
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,5MM
92011-024
Superseded by 92009-1947
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,4MM,FOCUS ADJUST
23020-018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,HEAD LAMP RIM FIT
23020-023
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,FLANGED,8MM
92015-1014
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT,HEAD LAMP BODY FT
92015-1050
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#92015D
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
23021-004
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER
23021-010
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER-PLAIN,5MM
23021-012
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#92022C
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=20
92027-1131
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,6.8X10X12
92027-162
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 60/55W,H4
92069-1002
Superseded by 92069-0050
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,HEAD LAMP FITTING
92075-1109
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,HEAD LAMP FITTING
92075-1110
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,FOCUS ADJUSTING
92081-1103
Superseded by 92081-1701
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET,6X16
112G0616
Superseded by 112BA0616
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#110A
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#411A
WASHER-PLAIN,8MM
411D0800
Superseded by 411S0800
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
