1982 Kawasaki KZ1300A4 SPORTS Carburetor Parts OEM Parts

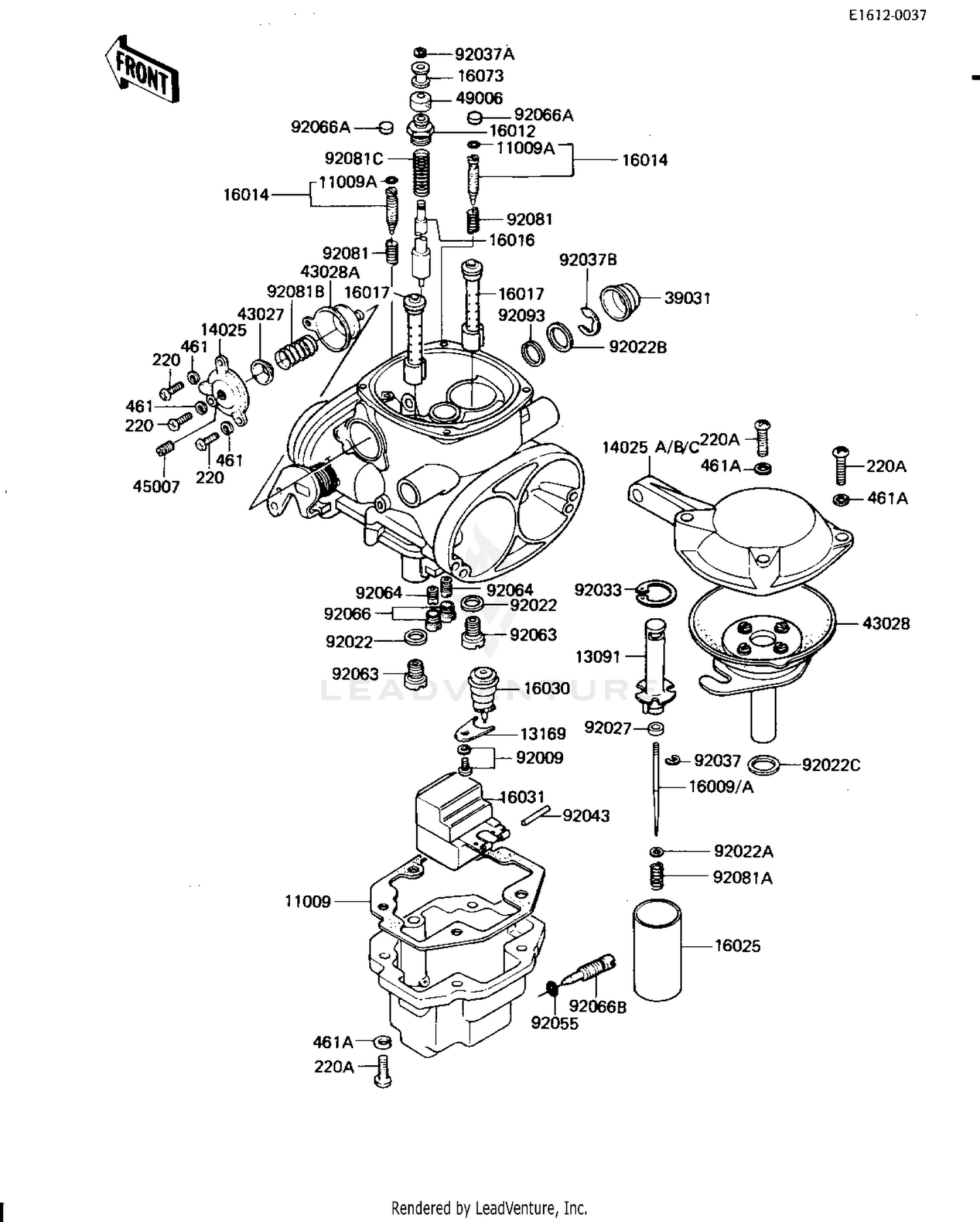

Carburetor Parts Diagram

Item	MSRP	Qty
#11009 GASKET,FLOAT CHAMBER 11009-1148 Superseded by 11060-1609	$41.11
Available to order. Add to View Price
#11009A O RING 16038-022	$6.67
Available to order. Add to View Price
#13091 HOLDER,PISTON VALVE 13091-1056	$8.30
Available to order. Add to View Price
#13169 PLATE, LOCK 13169-1190	$6.33
Available to order. Add to View Price
#14025 COVER,COASTING RICHER 14025-1158	$23.32
Available to order. Add to View Price
#14025A TOP,MXNG CHAMBER,L.H. 14025-1159	$105.84
Available to order. Add to View Price
#14025B TOP,MXNG CHAMBER,CENT 14025-1160	$103.75
Available to order. Add to View Price
#14025C TOP,MXNG CHAMBER,R.H. 14025-1161	$105.84
Available to order. Add to View Price
#16009 JET NEEDLE,5P3 (Canada) 16009-1038
Unavailable
#16009A JET NEEDLE,5P4 16009-1050	$24.76
Available to order. Add to View Price
#16012 CAP,STARTER PLUNGER 16012-1005	$22.48
Available to order. Add to View Price
#16014 SCREW,PILOT ADJUSTING 16014-1016	$32.41
Available to order. Add to View Price
#16016 PLUNGER,STARTER 16016-1005	$54.10
Available to order. Add to View Price
#16017 NEEDLE JET,Y-8 16017-1038	$50.68
Available to order. Add to View Price
#16025 VALVE,PISTON 16025-1029	$69.17
Available to order. Add to View Price
#16030 FLOAT VALVE ASSY 16030-1005	$95.26
Available to order. Add to View Price
#16031 FLOAT 16031-1006	$103.20
Available to order. Add to View Price
#16073 COLLAR 16073-014	$10.10
Available to order. Add to View Price
#39031 CAP,STEEL 39031-1002	$6.44
Available to order. Add to View Price
#43027 RETAINER,DPHRGM SPRNG 43027-1004	$10.78
Available to order. Add to View Price
#43028 DIAPHRAGM ASSY,VACUUM 43028-1014	$189.64
Available to order. Add to View Price
#43028A DIAPHRAGM,RICHER 43028-1017	$154.17
Available to order. Add to View Price
#45007 SCREW,SLOTTED 45007-1001	$4.98
Available to order. Add to View Price
#49006 RUBBER CAP,STARTER PL 16036-017	$10.29
Available to order. Add to View Price
#92009 SCREW-CLAMP 16033-014	$4.55
Available to order. Add to View Price
#92022 WASHER MAIN JET 16034-001	$4.17
Available to order. Add to View Price
#92022A WASHER,JET NEEDLE 92022-1123	$8.67
Available to order. Add to View Price
#92022B WASHER,PLAIN 92022-1150	$4.56
Available to order. Add to View Price
#92022C WASHER,PLAIN,DURACON 92022-1155	$7.75
Available to order. Add to View Price
#92027 UNAVAILABLE IN PRICE BOOK 92027-11
Unavailable
#92033 CIRCLIP 92033-1009	$9.06
Available to order. Add to View Price
#92037 CIRCLIP 16008-014	$9.30
Available to order. Add to View Price
#92037A CIRCLIP 16076-003	$8.61
Available to order. Add to View Price
#92037B CIRCLIP 92037-1140	$3.13
Available to order. Add to View Price
#92043 PIN,FLOAT 16032-003 Superseded by 16032-008	$6.36
Available to order. Add to View Price
#92055 RING-O 92055-044	$10.02
Available to order. Add to View Price
#92063 MAIN JET,#110R 92063-1038	$15.91
Available to order. Add to View Price
#92064 PILOT JET,#42.5 92064-1024	$23.49
Available to order. Add to View Price
#92066 SCREW,HOLE PLUG 92066-1044	$10.88
Available to order. Add to View Price
#92066A PLUG,PILOT AIR SCREW,6.9X2 92066-1051	$4.89
Available to order. Add to View Price
#92066B SCREW,DRAIN 92066-1064	$11.93
Available to order. Add to View Price
#92081 SPRING,PILOT SCREW 16022-016	$8.78
Available to order. Add to View Price
#92081A SPRING,JET NEEDLE 92081-1126	$8.07
Available to order. Add to View Price
#92081B SPRING,RICHER DPHRGM 92081-1156	$4.56
Available to order. Add to View Price
#92081C SPRING,STARTER PLUNGR 92081-1163	$3.96
Available to order. Add to View Price
#92093 OIL SEAL 92093-1027	$7.68
Available to order. Add to View Price
#220 SCREW-PAN-CROS,4X10 220B0410 Superseded by 220AA0410	$2.39
Available to order. Add to View Price
#220A SCREW-PAN+- 214B0516A Superseded by 214AA0516	$0.17
Available to order. Add to View Price
#461 WASHER SPRING 4MM 461F0400	$0.46
Available to order. Add to View Price
#461A WASHER-SPRING,5MM 461F0500 Superseded by 461DA0500	$0.69
Available to order. Add to View Price
