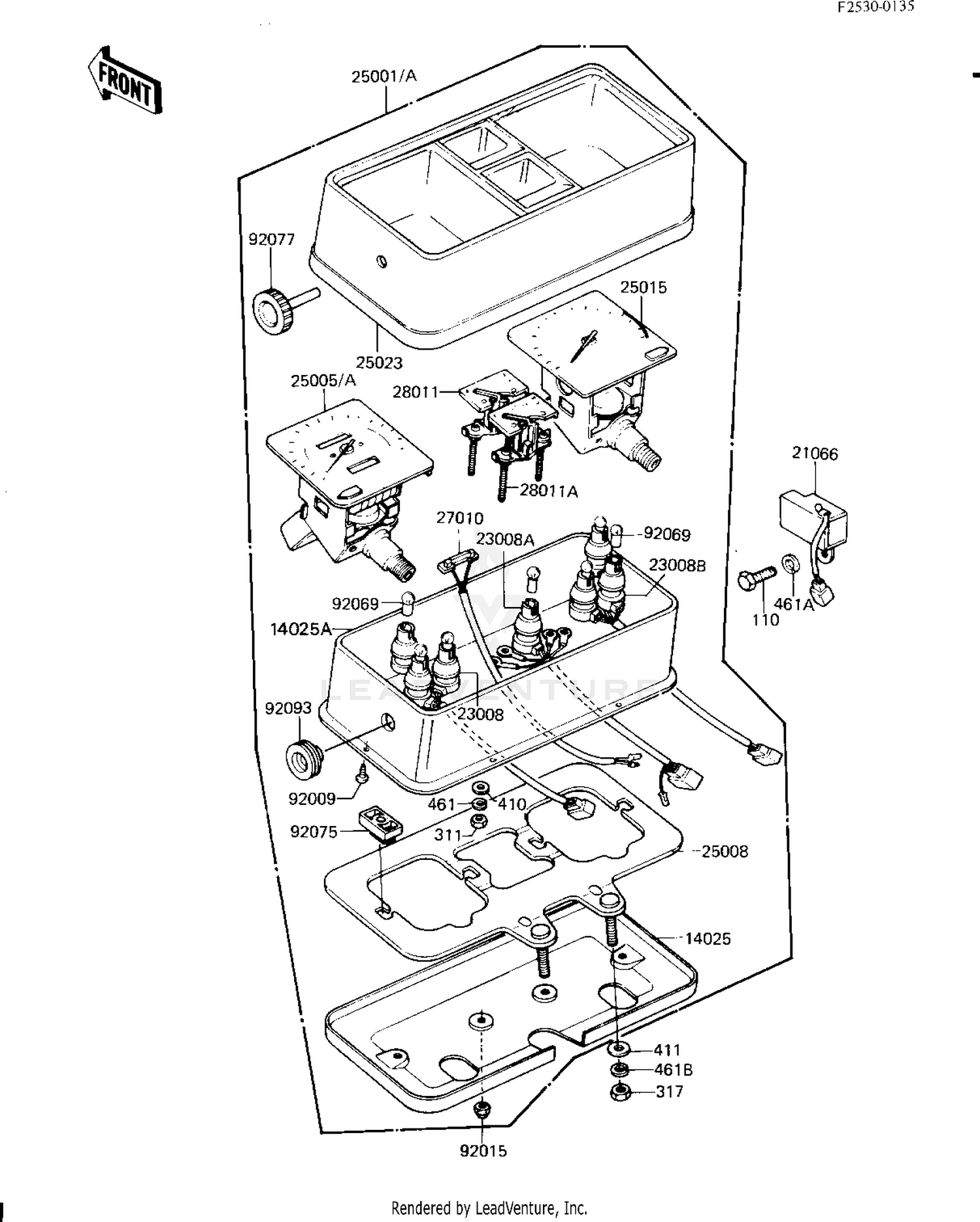

Meters Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14025
COVER,METER,LOWER
14025-1098
|
$43.86 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,METER CASE
14025-1805
|
$155.56 | ||
|
Available to order. Add to View Price |
|||
|
#21066
REGULATOR,VOLTAGE
21066-1006
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,SPEEDOMET
23008-1132
|
$46.37 | ||
|
Available to order. Add to View Price |
|||
|
#23008A
SOCKET-ASSY,FUEL METE
23008-1133
|
$32.74 | ||
|
Available to order. Add to View Price |
|||
|
#23008B
SOCKET-ASSY,TACHOMETE
23008-1134
|
$33.60 | ||
|
Available to order. Add to View Price |
|||
|
#25001
METER-ASSY,MPH
25001-1296
|
$919.95 | ||
|
Available to order. Add to View Price |
|||
|
#25001A
METER-ASSY,KPHX1000RPM (Canada
25001-1297
|
|||
|
Unavailable |
|||
|
#25005
SPEEDOMETER UNIT,KPH (Canada)
25005-1051
|
|||
|
Unavailable |
|||
|
#25005A
SPEEDOMETER UNIT,MPH
25005-1069
|
$275.23 | ||
|
Available to order. Add to View Price |
|||
|
#25008
BRACKET,METER
25008-1015
|
$40.68 | ||
|
Available to order. Add to View Price |
|||
|
#25015
TACHOMETER UNIT
25015-1037
|
$434.18 | ||
|
Available to order. Add to View Price |
|||
|
#25023
COVER,METER,UPPER
25023-1010
|
$230.84 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SENSOR,DISTANCE
27010-1032
|
$34.08 | ||
|
Available to order. Add to View Price |
|||
|
#28011
METER,FUEL
28011-1003
|
$102.89 | ||
|
Available to order. Add to View Price |
|||
|
#28011A
METER,TEMPERATURE
28011-1007
|
$102.89 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING
92008-012
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT-CAP,5MM
322C0500
Superseded by 322AB0500
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 3.4W,T10
92069-1007
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,METER BRACKET
92075-1140
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#92077
KNOB,TRIP
92077-1008
|
$8.23 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,TRIP KNOB
92093-1029
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,4MM
311B0400
Superseded by 311AA0400
|
$0.52 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM
317B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,4MM
410B0400
Superseded by 410AA0400
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461B
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
