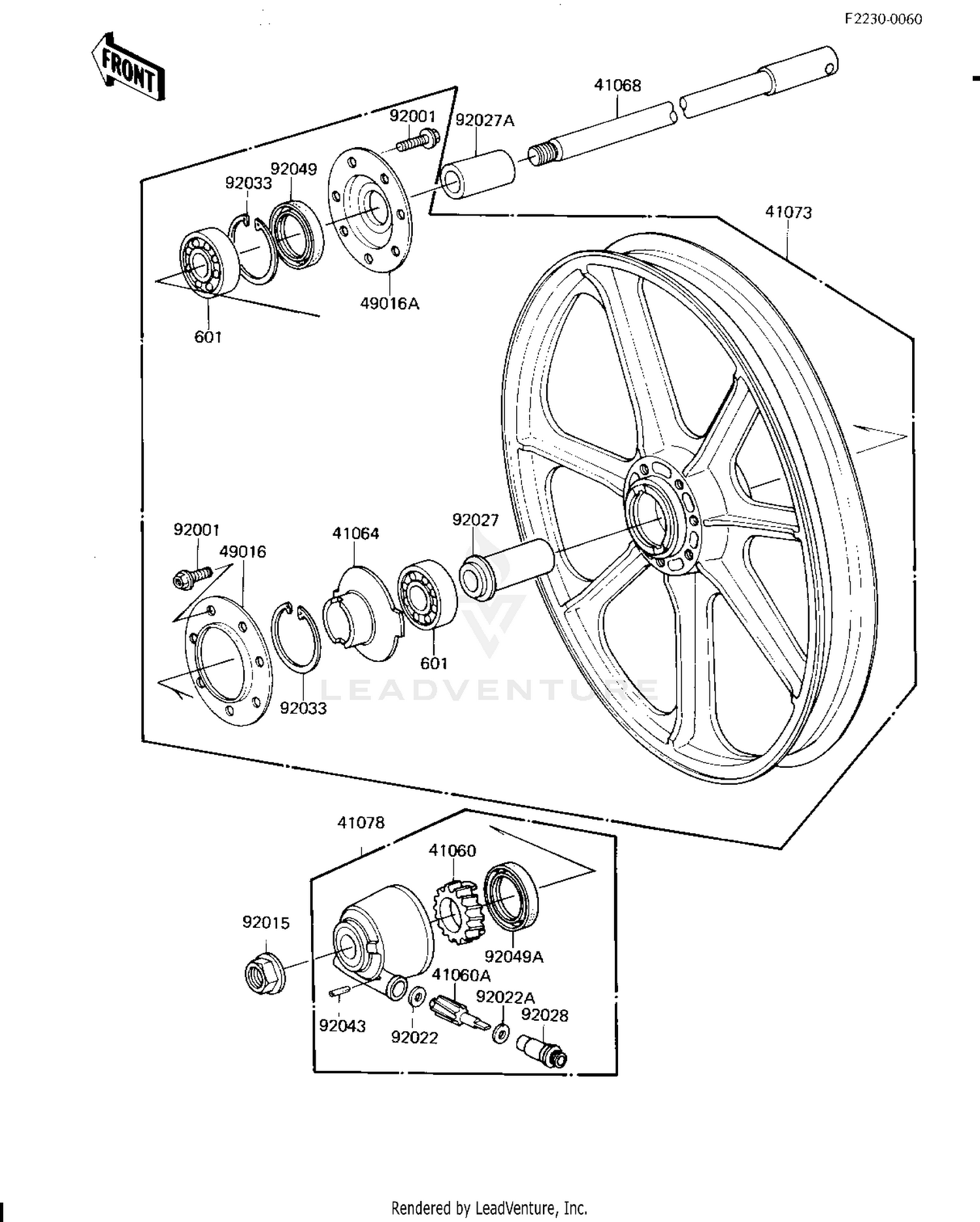

Front Wheel/hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41060
GEAR-METER SCREW,26T
41059-026
|
$40.89 | ||
|
Available to order. Add to View Price |
|||
|
#41060A
PINION,SPEEDOMETER
41060-1021
|
$26.52 | ||
|
Available to order. Add to View Price |
|||
|
#41064
RECEIVER,SPEEDOMETER
41064-1003
|
$29.06 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,FRONT
41068-1016
|
$75.92 | ||
|
Available to order. Add to View Price |
|||
|
#41073
SOLID WHEEL ASSY,FRON
41073-1023
|
$738.07 | ||
|
Available to order. Add to View Price |
|||
|
#41078
GEAR BOX ASSY
41078-1008
|
$124.28 | ||
|
Available to order. Add to View Price |
|||
|
#49016
DUST COVER,R.H
49016-1018
|
$15.92 | ||
|
Available to order. Add to View Price |
|||
|
#49016A
DUST COVER,R.H
49016-1018
|
$15.92 | ||
|
Unavailable |
|||
|
#92001
BOLT,FLANGED,8X28
92001-1095
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,16MM
92015-1041
Superseded by 92015-1946
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.1X9X0.4
41063-001
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,5.1X9X0.4
41063-001
|
$4.54 | ||
|
Unavailable |
|||
|
#92027
COLLAR,FRONT HUB BEAR
92027-1123
|
$16.75 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,FRONT AXLE
92027-1125
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,SPEEDOMETER
92028-1045
|
$21.91 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,47MM
92033-1042
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,SPRING
41082-001
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,N0K AE1351EO
92049-1008
|
$16.95 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,BJN30427-C3
92049-1057
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING BALL #6303Z
601B6303Z
|
$23.63 | ||
|
Available to order. Add to View Price |
|||
