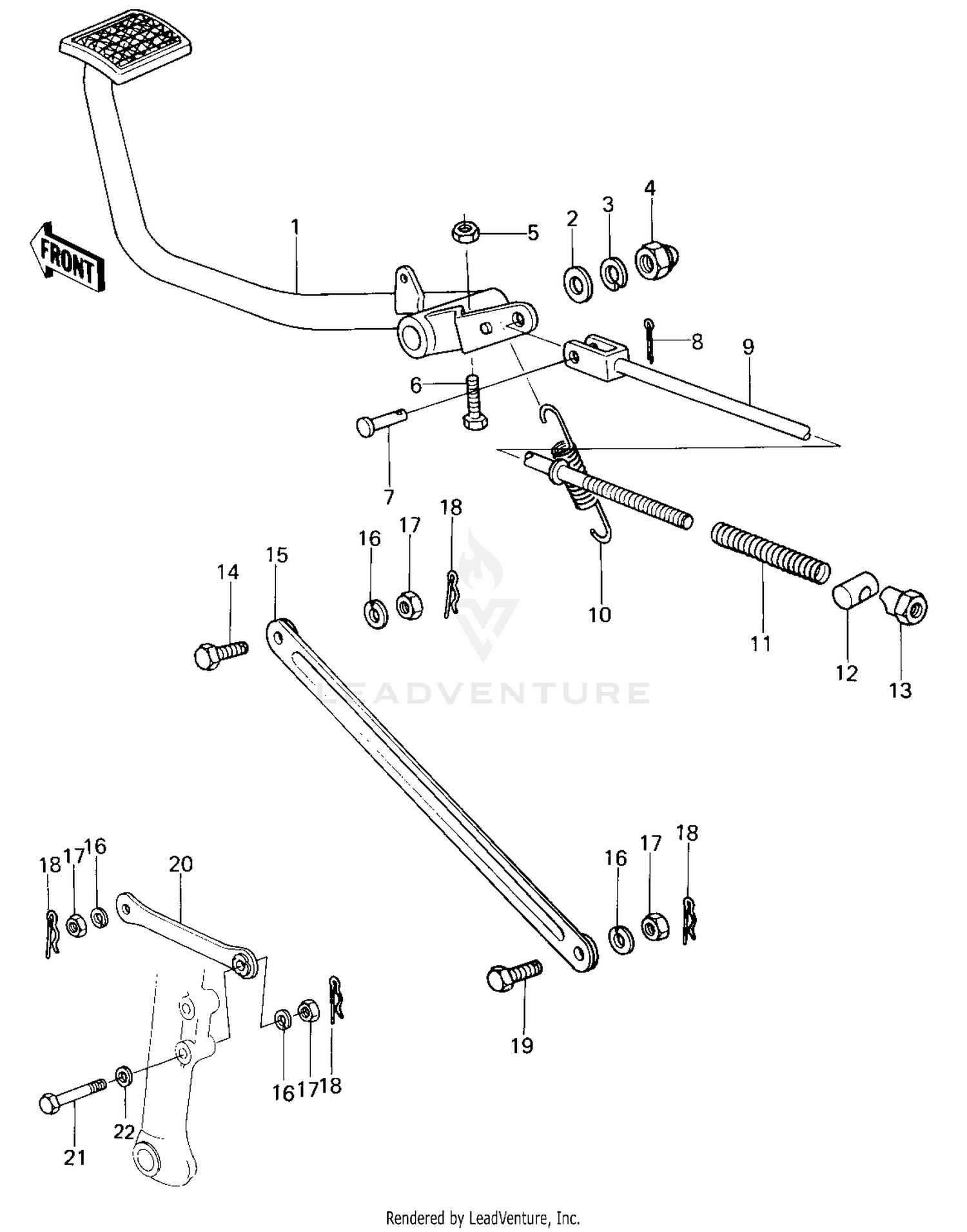

Brake Pedal/torque Link ('80 B1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL,BRAKE
43001-1010
|
$181.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER,8.5X20X1.6
92022-1561
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT,CAP AND LOCK,8MM
92019-013
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN,BRAKE ROD FITTING
92043-090
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN COTTER 2.5X16
550D2516
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD,BRAKE
43011-026
|
$18.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING,BRAKE PEDAL
43005-029
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING,BRAKE ROD
43012-001
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN-BRAKE ROD
92043-065
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT,BRAKE ROD
92015-042
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT TORQUE LINK FIT
92003-017
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
TORQUE LINK REAR BRK
43007-016
|
$25.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN-SNAP
554A0800
Superseded by 554DA0800
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT HEX HEAD 10MM
92003-034
|
$12.74 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD,TORQUE
43007-1004
|
$13.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,10X62
92001-1070
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
