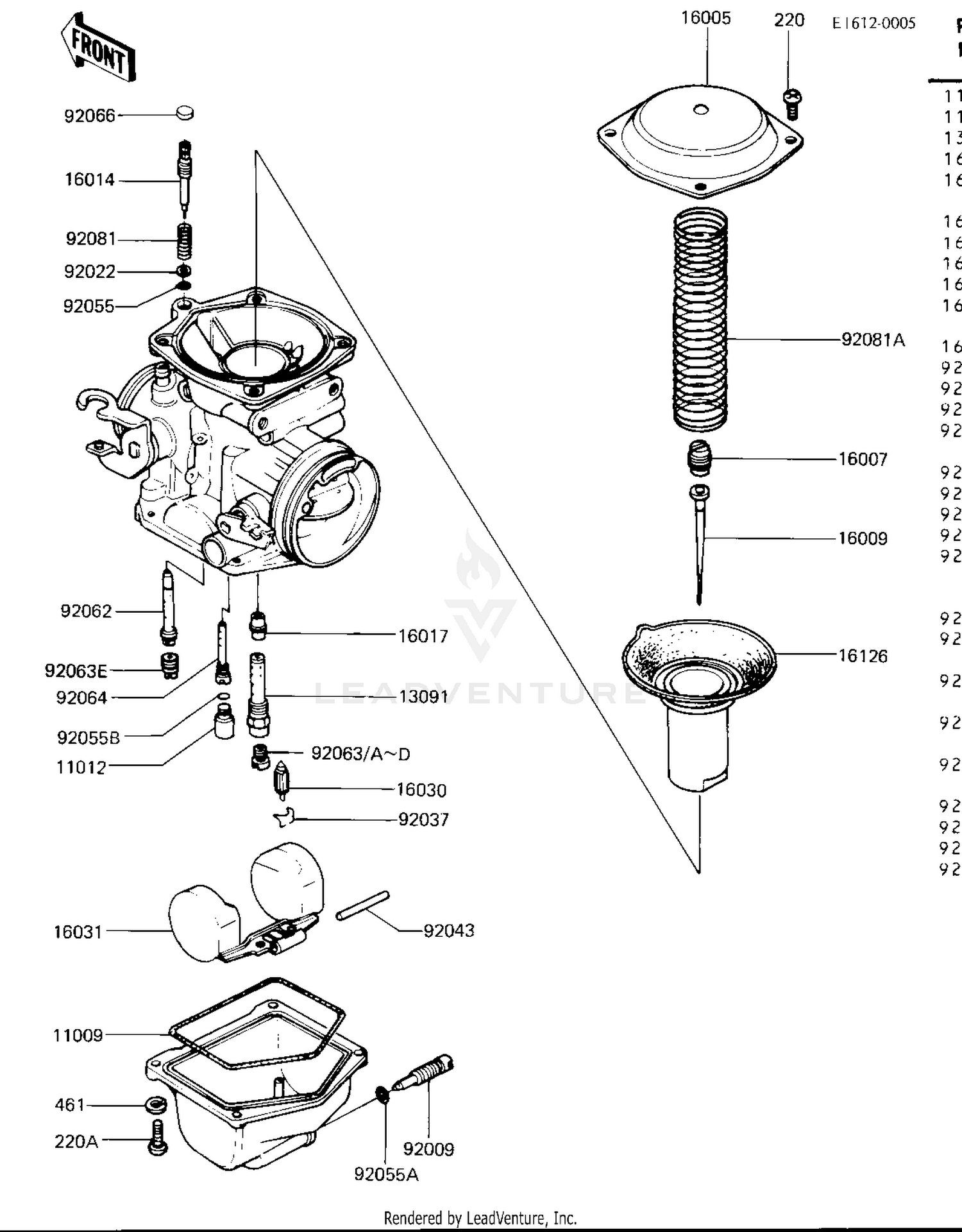

Carburetor Parts ('81 B2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
O RING,FLOAT BALL
16019-024
|
$24.38 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,POLYESTER
11012-1128
|
$22.21 | ||
|
Unavailable |
|||
|
#13091
HOLDER,NEEDLE JET
13091-1050
|
$28.19 | ||
|
Available to order. Add to View Price |
|||
|
#16005
TOP,MIXING CHAMBER
16005-1012
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SCREW,NEEDLE SET
16007-1022
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#16009
JET NEEDLE,#N03A
16009-1065
|
$29.37 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW,PILOT ADJUST
16014-1011
|
$15.68 | ||
|
Available to order. Add to View Price |
|||
|
#16017
NEEDLE JET
16017-1059
|
$47.22 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1001
|
$61.81 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,VACUUM
16126-1044
|
$412.44 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,DRAIN,M6X1.0
92009-1095
Superseded by 92009-1434
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,PLAIN
92022-1003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#92043
FLOAT PIN
92043-1002
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,PILOT ADJUST
92055-1002
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1053
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
O RING
92055-1088
|
$20.64 | ||
|
Available to order. Add to View Price |
|||
|
#92062
NOZZLE,MAIN
92062-1001
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#92063
MAIN JET,2ND,#95
92063-1001
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
MAIN JET,2ND,#90
92063-1003
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
MAIN JET,#92,2ND
92063-1004
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
MAIN JET,2ND,#85
92063-1023
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
MAIN JET,2ND #88
92063-1024
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
MAIN JET,PRI,#68
92063-1050
|
$19.17 | ||
|
Available to order. Add to View Price |
|||
|
#92064
PILOT JET,#35
92064-1001
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,PILOT ADJUST SCREW
92081-1002
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING
92081-1257
|
$25.22 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,4X12
220B0412
Superseded by 220AA0412
|
$0.21 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
