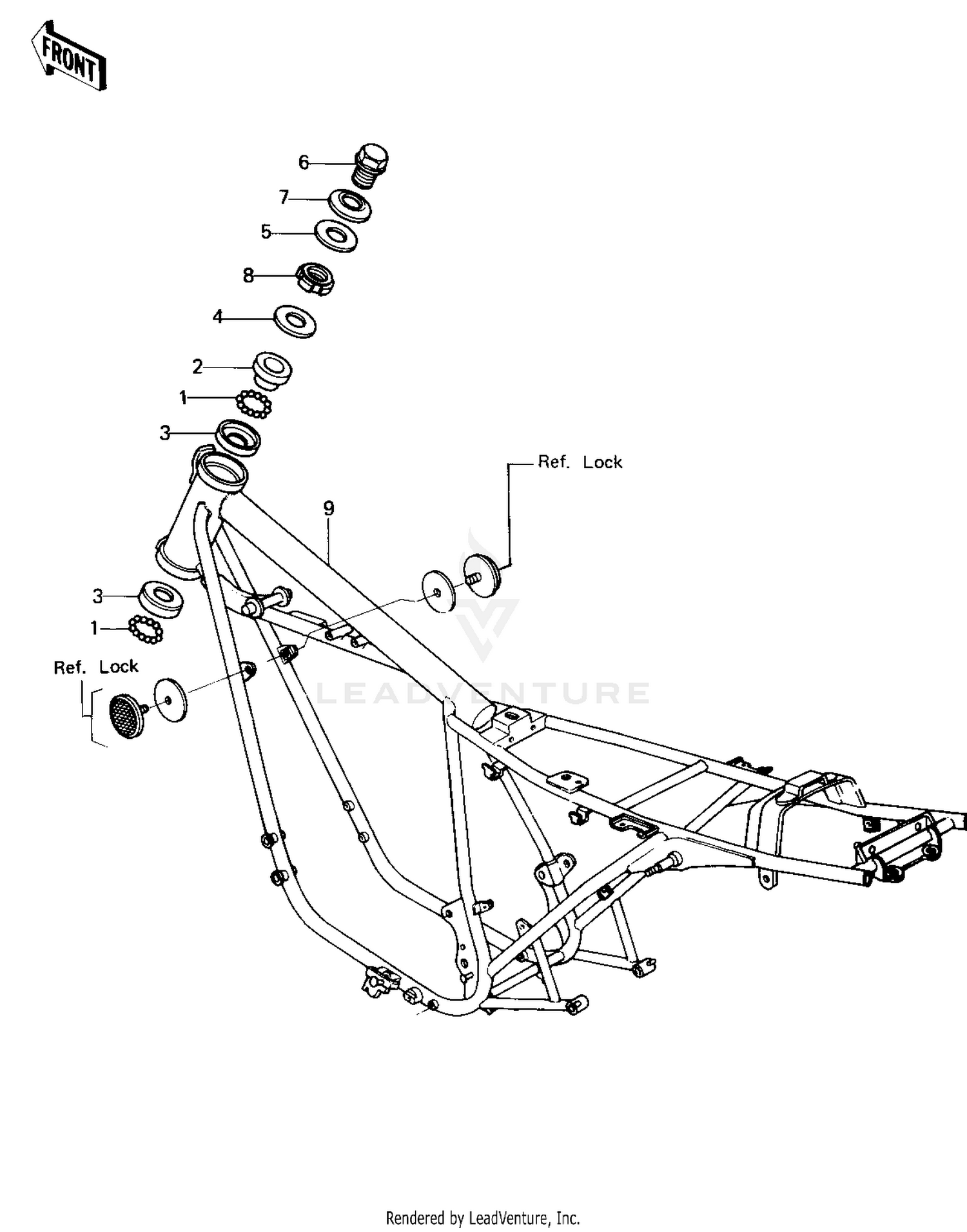

Frame ('80 B1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONE STRNG STEM BERNG
92047-006
|
$12.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE,STEERING STEM BEARING
92048-006
Superseded by 92048-0036
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP,STEERING STEM
46098-016
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER,WAVE
46100-003
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,STEERG STEM HEAD
92007-031
|
$28.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,16X41X4.5
92022-230
Superseded by 92200-1273
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT,30MM
92090-007
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
FRAME-COMP
32002-1260
|
$910.40 | ||
|
Available to order. Add to View Price |
|||
