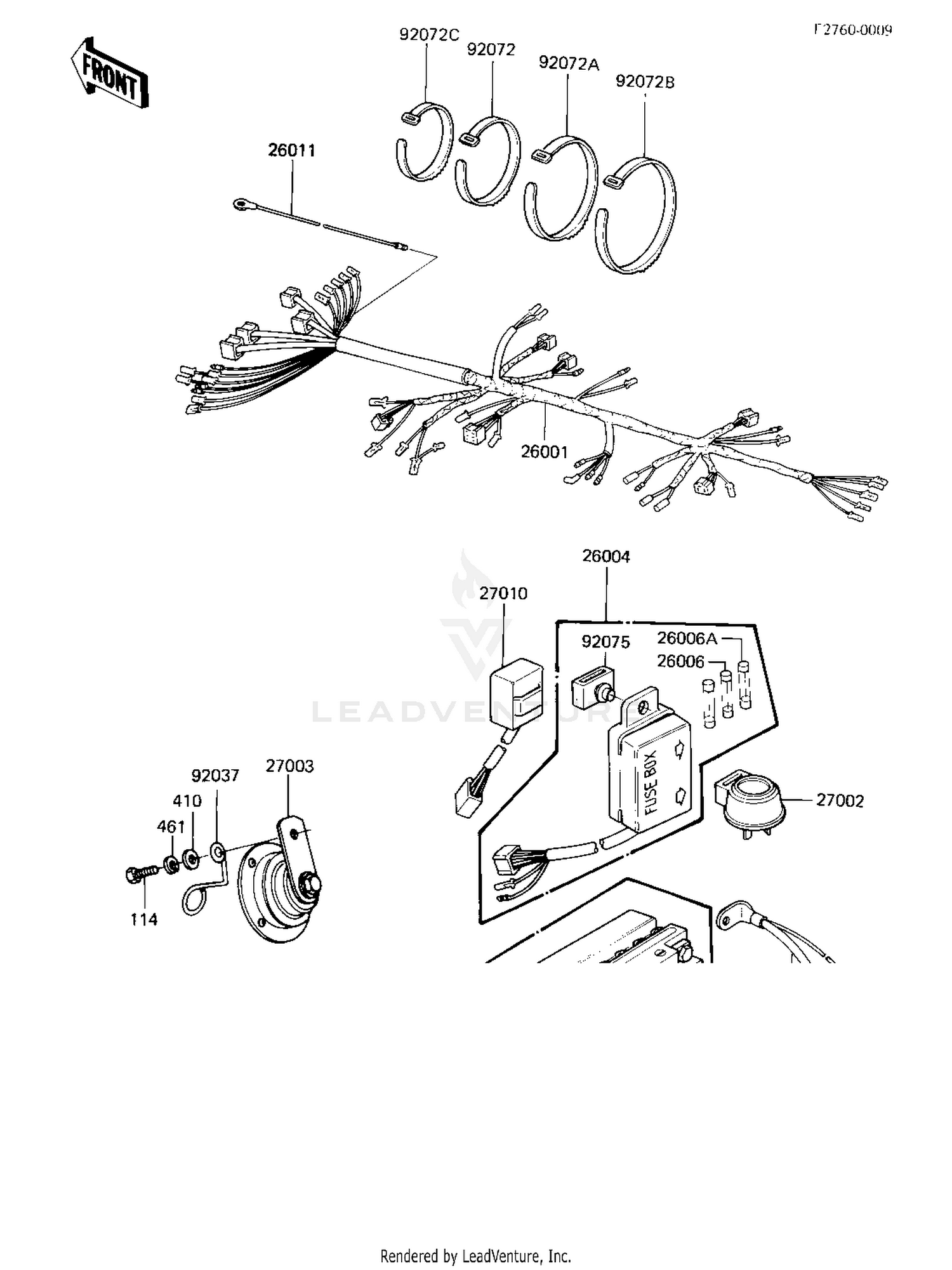

Chassis Electrical Equipment ('81 B2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#26001
HARNESS,MAIN
26001-1236
|
$135.46 | ||
|
Available to order. Add to View Price |
|||
|
#26004
FUSE ASSY
26004-035
|
$72.65 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,GLASS TUBE,6.4X25,10
26006-003
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#26006A
FUSE,GLASS TUBE,6.4X25,20
26006-005
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#26011
LEAD WIRE,SIGNAL LAMP
26011-063
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#26011A
WIRE LEAD,BATTERY GRD
26011-1022
|
$33.15 | ||
|
Available to order. Add to View Price |
|||
|
#26012
YUA BAT YB12A-A
26012-1004
Superseded by 26012-1061
|
$91.95 | ||
|
Available to order. Add to View Price |
|||
|
#27002
RELAY-ASSY
27002-011
Superseded by 27002-0003
|
$97.49 | ||
|
Available to order. Add to View Price |
|||
|
#27003
HORN
27003-1005
|
$61.36 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BK LIGHT IND
28019-002
|
$65.59 | ||
|
Available to order. Add to View Price |
|||
|
#56037
LABEL-WARNING,BATTERY
56040-1036
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,CABLE
92037-155
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=149
92072-031
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,L=218
92072-032
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072C
BAND,BREATHER WIRE
92072-067
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER RUBBER,FUSE
92075-279
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#114
BOLT-SMALL-UPSET,8X20
115G0820
Superseded by 115BA0820
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
