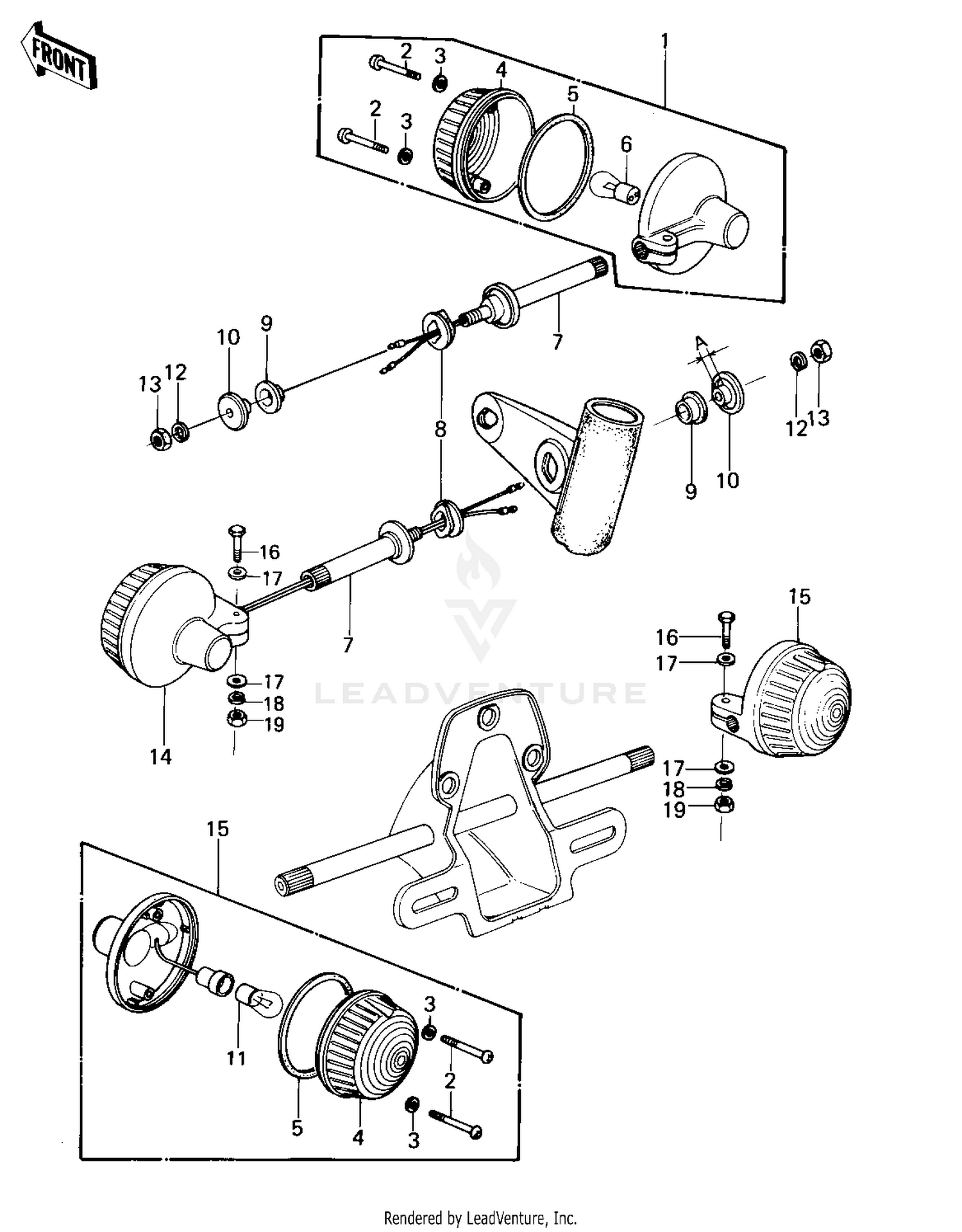

Turn Signals ('80 B1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LIGHT ASSY,TRN SG,R.H
23040-1005
|
$86.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW-PAN HEAD,4X35
220E0435A
|
$8.26 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,PLAIN,4MM
23058-002
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS-SIGNAL LAMP
23048-1024
|
$10.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET,TURN SIG LAMP
23050-002
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB,12V 32/3CP(23/8W)
92069-060
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET,TURN SIGNAL.L
23051-053
|
$66.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER RUBBER
92075-128
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER RUBBER,SIG LM
92075-158
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR,SIGNAL LAMP
92027-1060
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULB,12V 32CP(23W)
92069-055
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
LIGHT ASSY,TRN,SG,L.H
23040-1006
|
$86.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
LAMP-TURN SIGNAL
23040-029
|
$146.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
