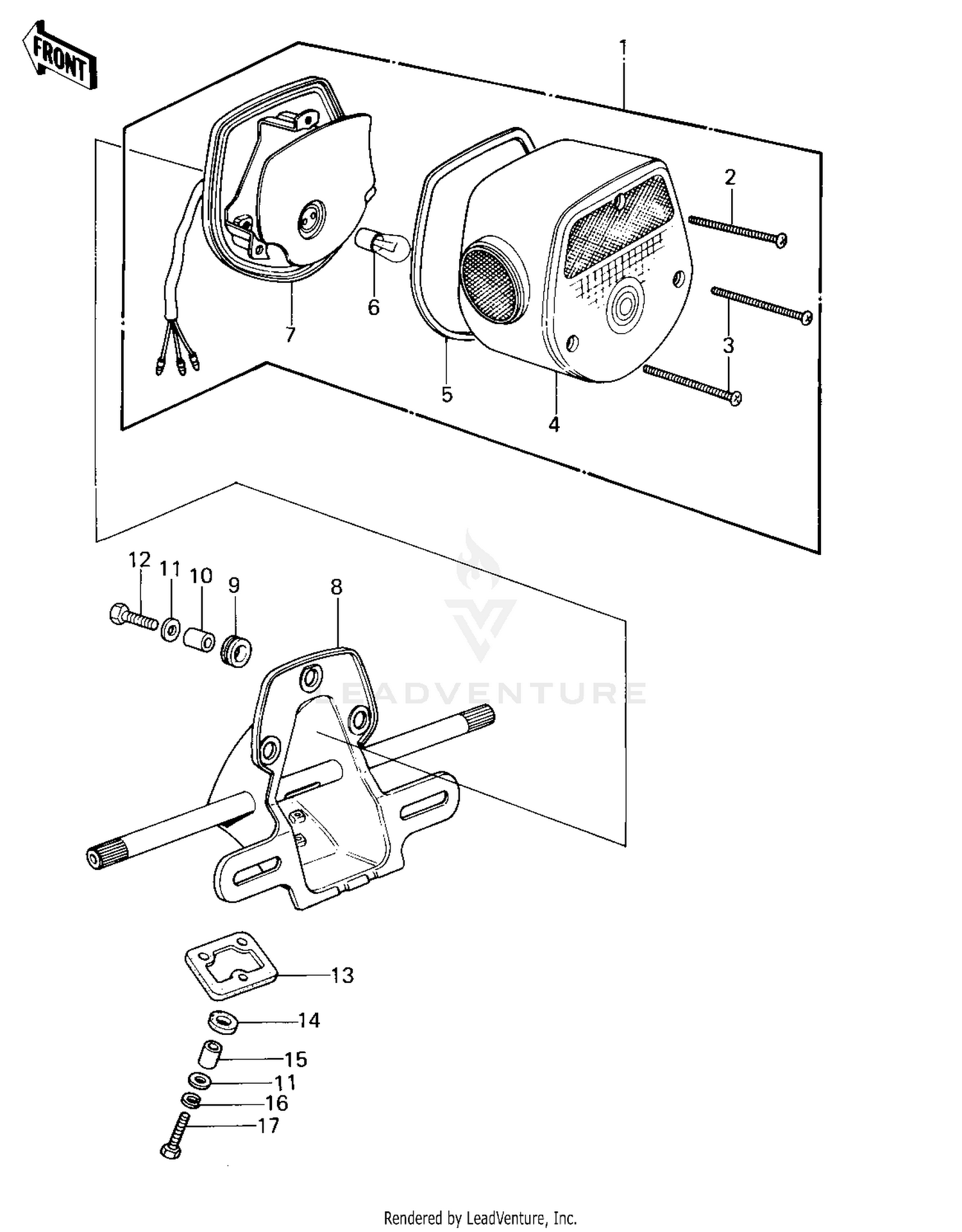

Taillight ('80 B1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP-TAIL
23025-1031
|
$124.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
220R0455
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW PAN HEAD 4X50
220E0450
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS,TAIL LAMP
23026-028
|
$54.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET,TAIL LAMP LENS
23028-019
|
$9.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB,12V 27/8W
92069-059
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY-COMP-TAIL LAMP
23027-1019
|
$66.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET,TAIL LAMP
23036-1002
|
$104.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER RUBBER
92075-076
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR,6.8X10X8.5
92027-129
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER RUBBER,RR FEND
35039-004
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER RUBBER,RR FEND
92075-121
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR,6.8X10X14.5
92027-156
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
