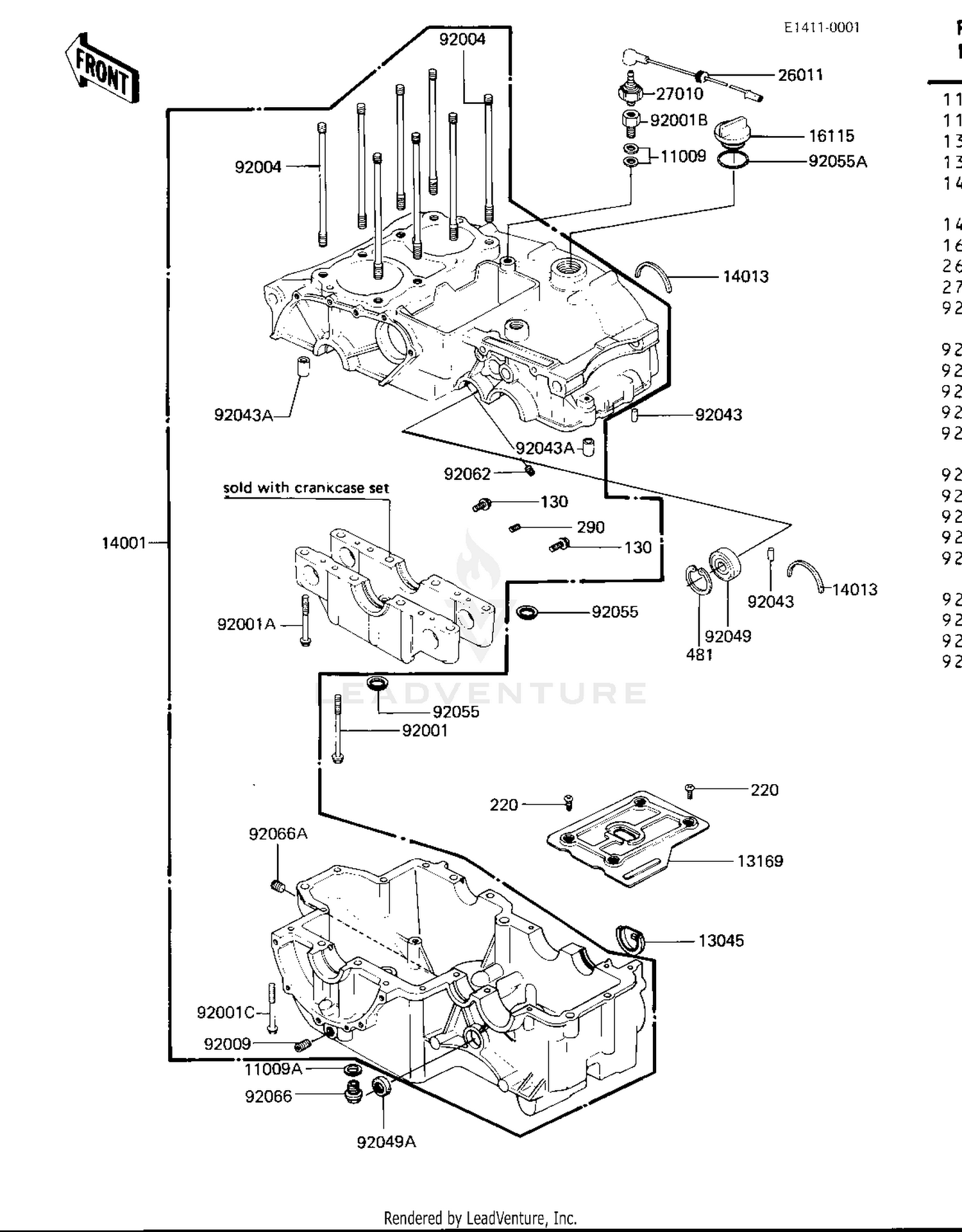

Crankcase ('81 B2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,10X14.5X1.5
11009-1105
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,12X22X2
92065-097
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#13045
RECEIVER,OIL
13045-1001
|
$18.97 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE,CRANKCASE
13169-1103
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#14001
SET-CRANKCASE
14001-5087
|
$907.60 | ||
|
Available to order. Add to View Price |
|||
|
#14013
RING-POSITION
14013-004
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-013
Superseded by 16115-1062
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE,LEAD,OIL SWITCH
26011-1078
|
$23.24 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,OIL PRESSURE
27010-1157
|
$41.08 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,10X91
92001-1004
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,8X58
92001-1005
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,OIL SWITCH
92001-1020
|
$11.66 | ||
|
Available to order. Add to View Price |
|||
|
#92001C
BOLT,FLANGED,6X55
92003-110
Superseded by 130BA0655
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X153
92004-062
Superseded by 92004-1232
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SET SCREW,PT 1/4
92013-010
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,6X16
92042-016
Superseded by 92043-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,DOWEL,10X14
92043-1037
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,PUSH ROD
92049-1041
|
$24.84 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#92055
O RING,0.D=18MM
92055-048
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,31.5X2.6
92055-049
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92062
NOZZLE,6X8,BLACK
92062-011
Superseded by 92062-1079
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,OIL DRAIN,12X15
92066-1174
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG,OIL SWITCH
92066-059
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT,FLANGED,6X8
130P0608
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#290
SCREW-SET-SOCKET,6X6
290Q0606
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP,36M/M
481J3600
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
