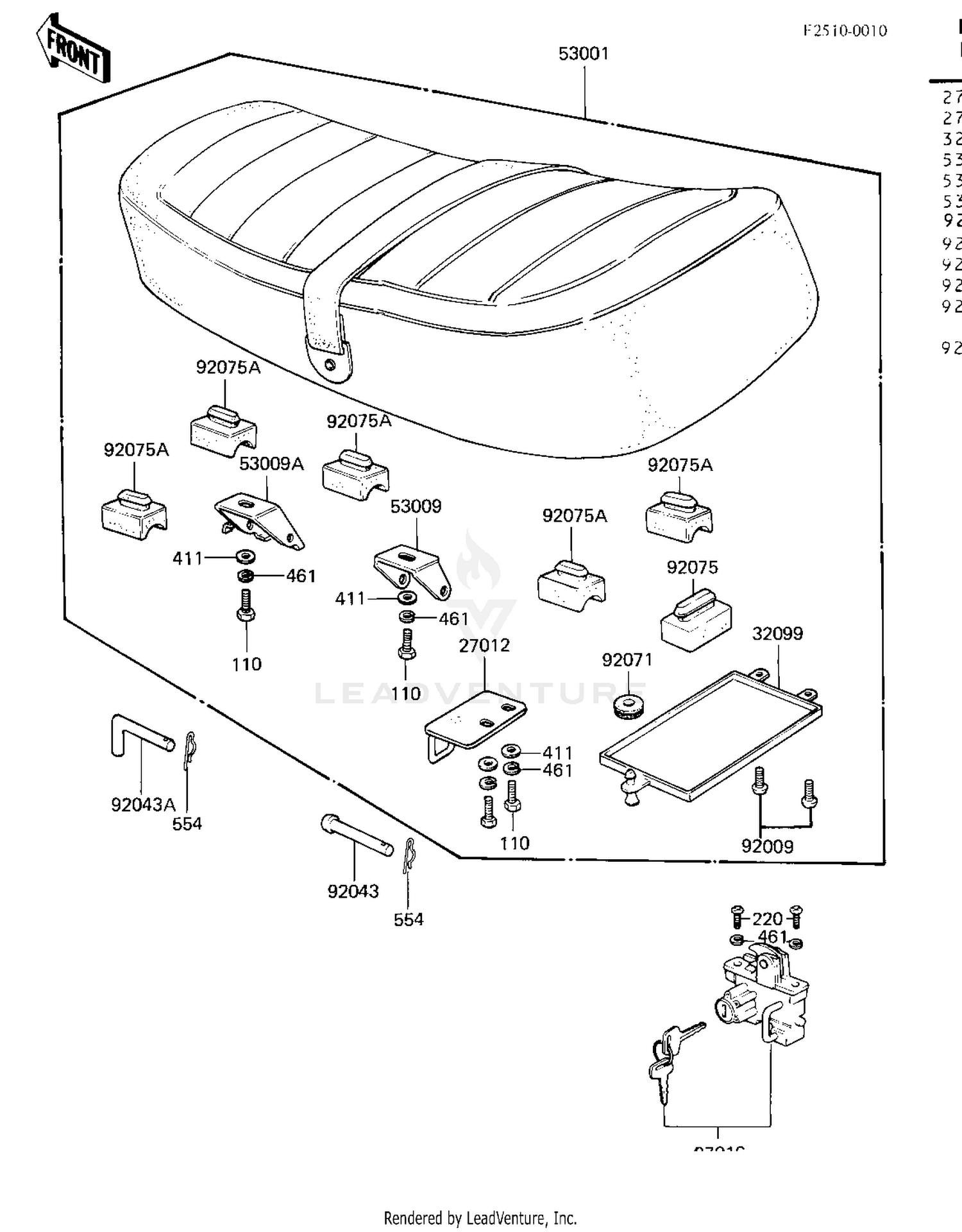

Seat ('81 B2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#27012
HOOK,SEAT
53008-024
|
$14.39 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK ASSY,SEAT HELMET
27016-5028
|
$88.48 | ||
|
Available to order. Add to View Price |
|||
|
#32099
CASE
32099-011
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#53001
SEAT-ASSY,DUAL
53001-1139
|
$346.78 | ||
|
Available to order. Add to View Price |
|||
|
#53009
HINGE, REAR
53009-026
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#53009A
HINGE,SEAT
53009-1007
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1043
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN, DUAL SEAT PIVOT
53011-006
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,SEAT PIVOT
92043-1064
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-056
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-099
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER RUBBER-SEAT
92075-156
|
$10.74 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#554
PIN-SNAP,1.2X21.2
554A0600
Superseded by 554DA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
