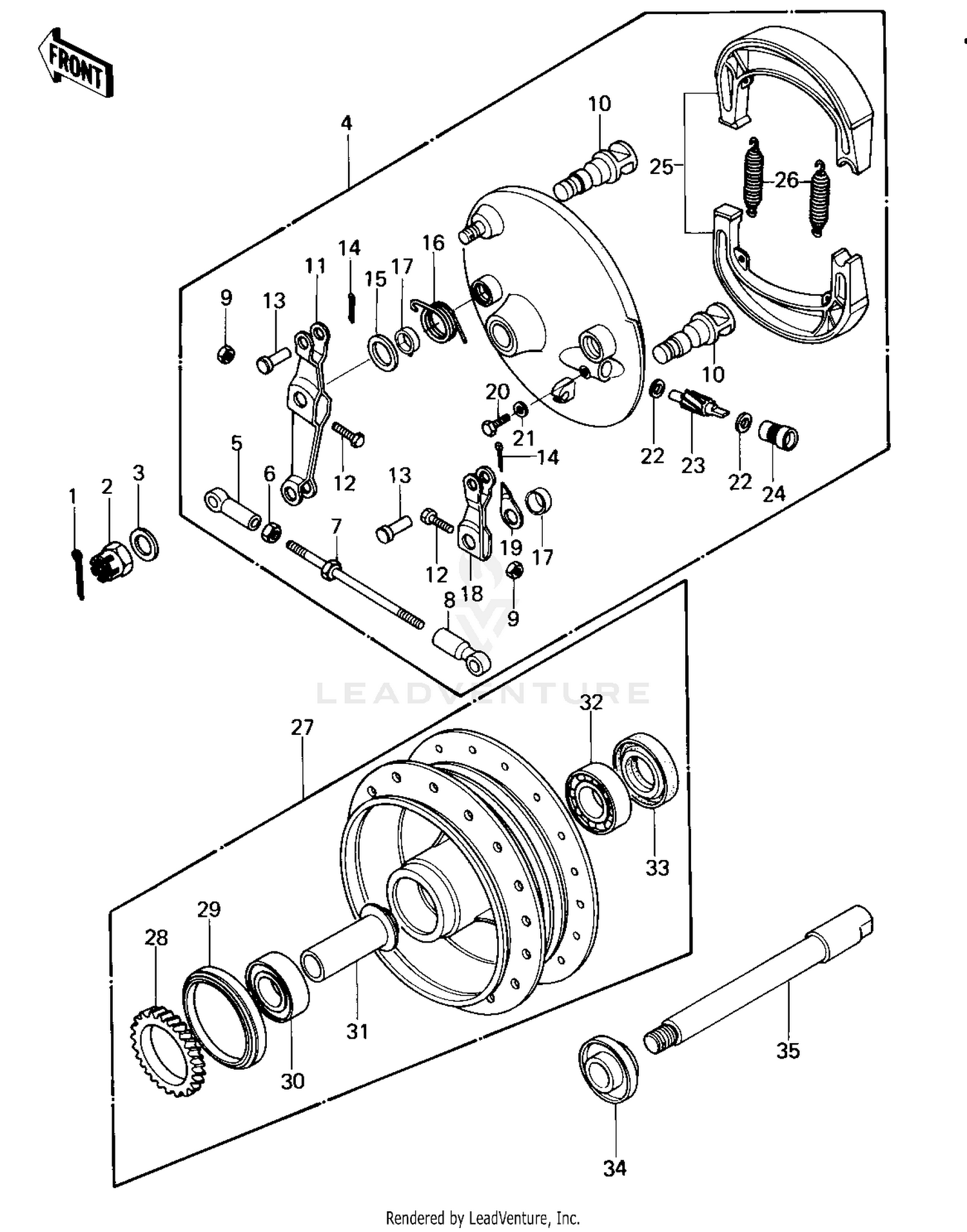

Front Hub/brake ('80 B1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN-COTTER,3.0X25
550D3025
Superseded by 550AA3025
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT,CASTLE,14MM
42045-020
Superseded by 92015-1765
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-PLAIN-SMALL,14MM
410B1400
Superseded by 410AA1400
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
PANEL-ASY,FR BRK
41035-1005
|
$367.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD END,BRK CONNECT
41058-008
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD BRK CAM LEV CONCT
41057-004
|
$38.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD END,BRK CONNECT
41058-009
|
$13.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT,6MM
41072-007
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAM SHAFT,FRONT BRAKE
41050-016
|
$45.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER FRT BRK CAM 1ST
41053-011
|
$29.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN BRAKE CONNECT ROD
41055-003
|
$8.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN-COTTER,1.2X10
550D1210
Superseded by 550AA1210
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,BRAKE CAMSHAFT
41052-005
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING FR BRK CAM LEV
41056-001
|
$9.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL,BRAKE CAM
41051-001
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER FRT BRK CAM 2ND
41053-012
|
$21.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
INDICATOR,FR BK SHOE
41085-015
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER PINION THRUST
41063-003
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PINION SPEEDOMETER
41060-007
|
$15.79 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSH SPEDMETER PINION
41062-003
|
$28.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHOE-BRAKE
41048-019
Superseded by 41048-1090
|
$31.02 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING FRNT BRK SHOE
41049-004
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#27
DRUM-ASSY,FR BRK
41034-1008
|
$202.79 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR,SPEEDOMETER,30T
41060-1014
|
$16.57 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL WOC55687
92050-017
|
$34.36 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING BALL #6302Z
601B6302Z
|
$26.41 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPACER F AXLE BEARING
41039-011
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING BALL #6302
601B6302
|
$8.73 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL WTC25428
92052-005
|
$23.94 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR,FRONT AXLE
92027-1049
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#35
AXLE,FRONT
41068-045
|
$36.25 | ||
|
Available to order. Add to View Price |
|||
