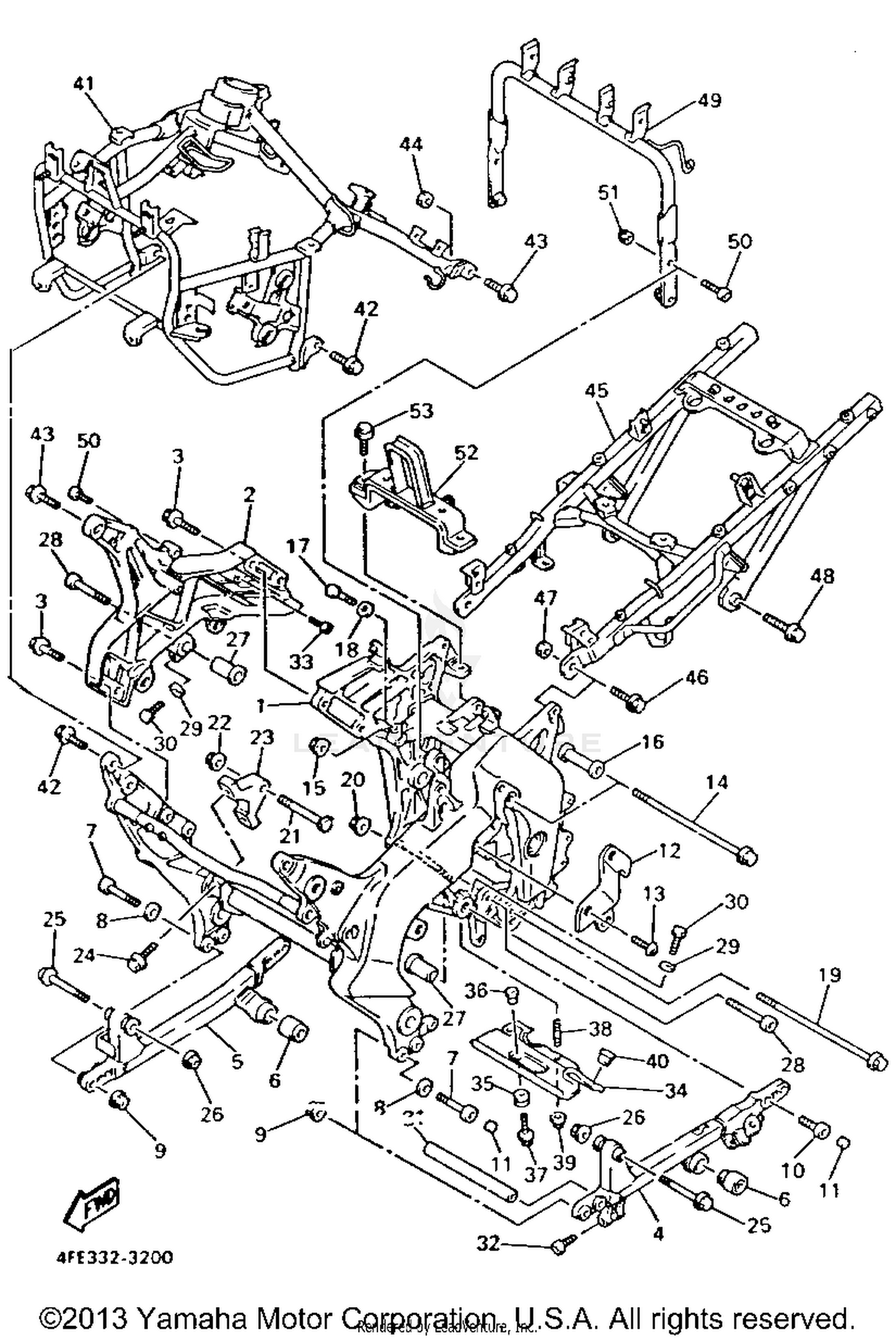

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
4HH-21110-00-P1
Superseded by 4BH-21110-01-P1
|
$4,083.99 | ||
|
Unavailable |
|||
|
#2
SIDE MEMBER SUB-ASSEMBLY
4BH-21102-00-P1
|
$972.99 | ||
|
Unavailable |
|||
|
#3
BOLT, WASHER BASED
90105-10678-00
|
$3.16 | ||
|
Unavailable |
|||
|
#4
DOWN TUBE COMP.
4BH-21140-00-35
|
$563.99 | ||
|
Unavailable |
|||
|
#5
DOWN TUBE COMP.2
4BH-21150-00-35
|
$532.99 | ||
|
Unavailable |
|||
|
#6
DAMPER, FOOTREST 2
4FU-27424-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-10218-00
|
$2.97 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-112R5-00
|
$2.37 | ||
|
Unavailable |
|||
|
#9
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-10219-00
|
$3.57 | ||
|
Unavailable |
|||
|
#11
PLUG, STRAIGHT
90334-08234-00
|
$1.18 | ||
|
Unavailable |
|||
|
#12
COVER
4BH-2117F-00-P1
|
$257.99 | ||
|
Unavailable |
|||
|
#13
SCREW
90149-06302-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WASHER BASED
90105-10401-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90179-10590-00
Superseded by 90179-10682-00
|
$11.99 | ||
|
Unavailable |
|||
|
#16
SPACER
3TJ-21459-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#17
BOLT
97026-08035-00
Superseded by 97017-08035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-10044-00
Superseded by 90105-10N53-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
90105-10451-00
Superseded by 90105-10737-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$8.49 | ||
|
Unavailable |
|||
|
#23
STAY, ENGINE 2
4BH-21315-00-00
|
$88.52 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
95811-10025-00
Superseded by 95817-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-10480-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
COLLAR
90387-115V8-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
91311-10045-00
Superseded by 91317-10045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Unavailable |
|||
|
#30
BOLT
97021-08035-00
Superseded by 97017-08035-00
|
$6.49 | ||
|
Unavailable |
|||
|
#31
TUBE, CROSS
4BH-21423-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
91311-08025-00
Superseded by 91314-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW,PAN
98511-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLATE
4BH-21183-00-00
|
$174.99 | ||
|
Unavailable |
|||
|
#35
GROMMET
90480-20571-00
|
$2.77 | ||
|
Unavailable |
|||
|
#36
COLLAR
90387-083R4-00
|
$3.57 | ||
|
Unavailable |
|||
|
#37
BOLT, WITH WASHER
90119-08113-00
|
$2.37 | ||
|
Unavailable |
|||
|
#38
BOLT, STUD
95622-06312-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#40
GROMMET
90480-14153-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
FRONT FRAME COMP.
4BH-21101-00-00
Superseded by 99999-02335-00
|
$2,133.99 | ||
|
Unavailable |
|||
|
#42
BOLT, FLANGE
90105-10285-00
Superseded by 95817-10025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#43
BOLT, FLANGE
95811-10035-00
Superseded by 95817-10035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$8.49 | ||
|
Unavailable |
|||
|
#45
REAR FRAME COMP.
4FE-21190-00-00
|
$622.99 | ||
|
Unavailable |
|||
|
#46
BOLT, FLANGE
95811-10035-00
Superseded by 95817-10035-00
|
$8.49 | ||
|
Unavailable |
|||
|
#47
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$8.49 | ||
|
Unavailable |
|||
|
#48
BOLT, FLANGE
90105-10433-00
Superseded by 95817-10030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
BRACKET, TANK FITTING
4BH-21348-00-00
|
$231.99 | ||
|
Unavailable |
|||
|
#50
BOLT
91316-08025-00
Superseded by 91317-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
NUT (CROWN)
95303-08800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
BRACKET, TANK FITTING
4FE-21345-00-00
|
$103.99 | ||
|
Unavailable |
|||
|
#53
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
