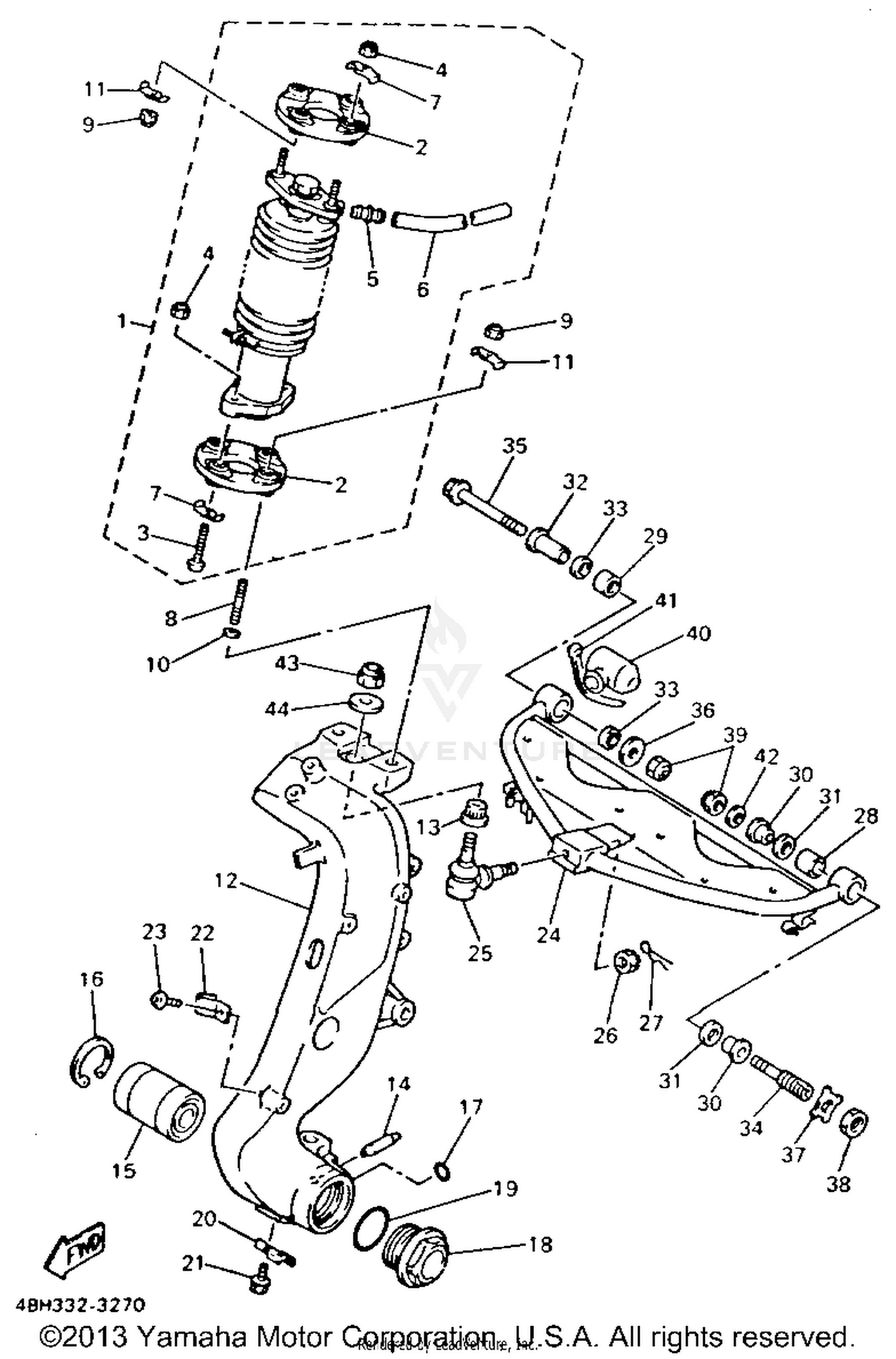

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TUBE STEERING COMP.
4BH-23530-00-00
|
$1,738.99 | ||
|
Unavailable |
|||
|
#2
JOINT, RING
4BH-2353A-00-00
|
$154.99 | ||
|
Unavailable |
|||
|
#3
BOLT, BUTTON HEAD
90109-087F9-00
Superseded by 92017-08040-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, U
95616-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE, CONNECTING
4BH-24119-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#6
HOSE
4BH-2384R-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#7
WASHER, SPECIAL
4BH-23392-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#8
BOLT, STUD
95611-08630-00
Superseded by 95617-08630-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U
95616-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-08085-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPECIAL
4BH-23392-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#12
ARM, KNUCKLE 1
4BH-23512-10-P1
|
$899.99 | ||
|
Unavailable |
|||
|
#13
BUSH
4BH-23526-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#14
PIN, SPRING
91609-40032-00
|
$0.95 | ||
|
Unavailable |
|||
|
#15
BEARING
93307-20602-00
|
$555.99 | ||
|
Unavailable |
|||
|
#16
CIRCLIP
93420-62070-00
Superseded by 99009-62500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-18322-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP 1
4BH-23741-00-00
|
$56.69 | ||
|
Unavailable |
|||
|
#19
O-RING
93210-59748-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, SUPPORT
4BH-2332U-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95811-06010-00
Superseded by 95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER, CABLE
4BH-23317-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#23
BOLT, BUTTON HEAD
92011-06012-00
Superseded by 92014-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
FRONT UPPER ARM COMP. (LEFT)
4FE-23540-00-33
|
$531.99 | ||
|
Unavailable |
|||
|
#25
BALL JOINT 1
4BH-23549-00-00
|
$161.99 | ||
|
Unavailable |
|||
|
#26
NUT, U FLANGE
95611-10200-00
Superseded by 95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90468-20100-00
|
$5.99 | ||
|
Unavailable |
|||
|
#28
BEARING
93399-99901-00
|
$33.43 | ||
|
Unavailable |
|||
|
#29
BEARING
93317-31701-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-1200E-00
|
$7.94 | ||
|
Unavailable |
|||
|
#31
OIL SEAL
93104-15101-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR 2
4BH-23364-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#33
OIL SEAL (SDO 17-24-4)
93109-17048-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FITTING 1
4BH-23451-00-00
|
$53.87 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE
90105-10451-00
Superseded by 90105-10737-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-105A2-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, SPECIAL
4BH-23418-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#38
NUT
90170-18412-00
Superseded by 90170-18392-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, U
95611-10100-00
Superseded by 95614-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
COVER, DUST
4BH-2384L-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#41
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, SELF-LOCKING
90185-12119-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, PLATE
90201-120A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
