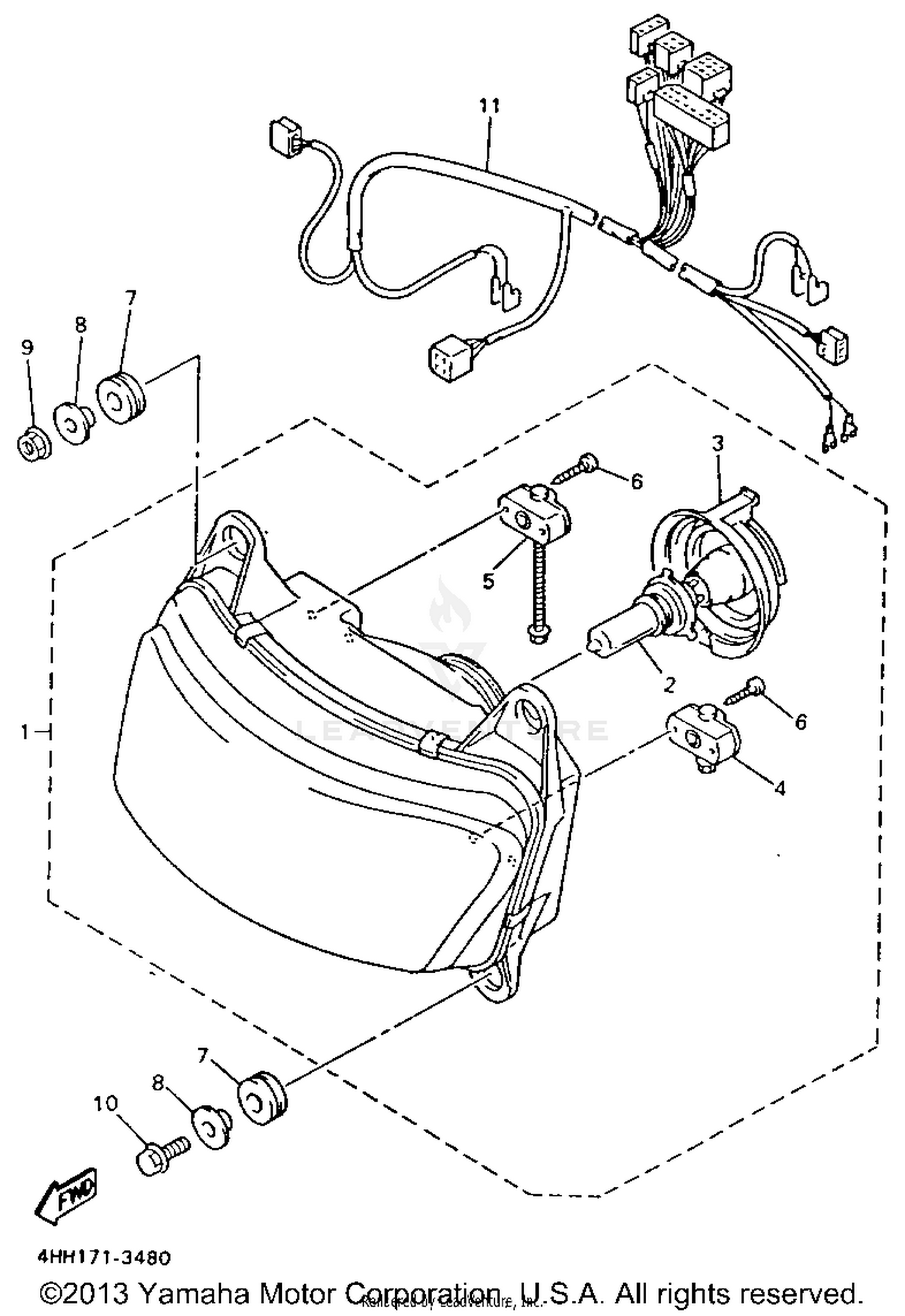

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSEMBLY
4BH-84300-30-00
|
$327.99 | ||
|
Unavailable |
|||
|
#2
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, SOCKET
36Y-84397-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR UNIT ASSEMBLY
3LD-8430M-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#5
GEAR UNIT ASSEMBLY
4BH-8430M-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#6
SCREW,TAPPING(4HP)
97706-40616-00
Superseded by 97707-40616-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-20564-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-084Y3-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT,FLANGE (JN5)
95706-08500-00
Superseded by 95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95816-08025-00
Superseded by 95817-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CORD, HEADLIGHT
4HH-84359-00-00
|
$153.99 | ||
|
Unavailable |
|||
