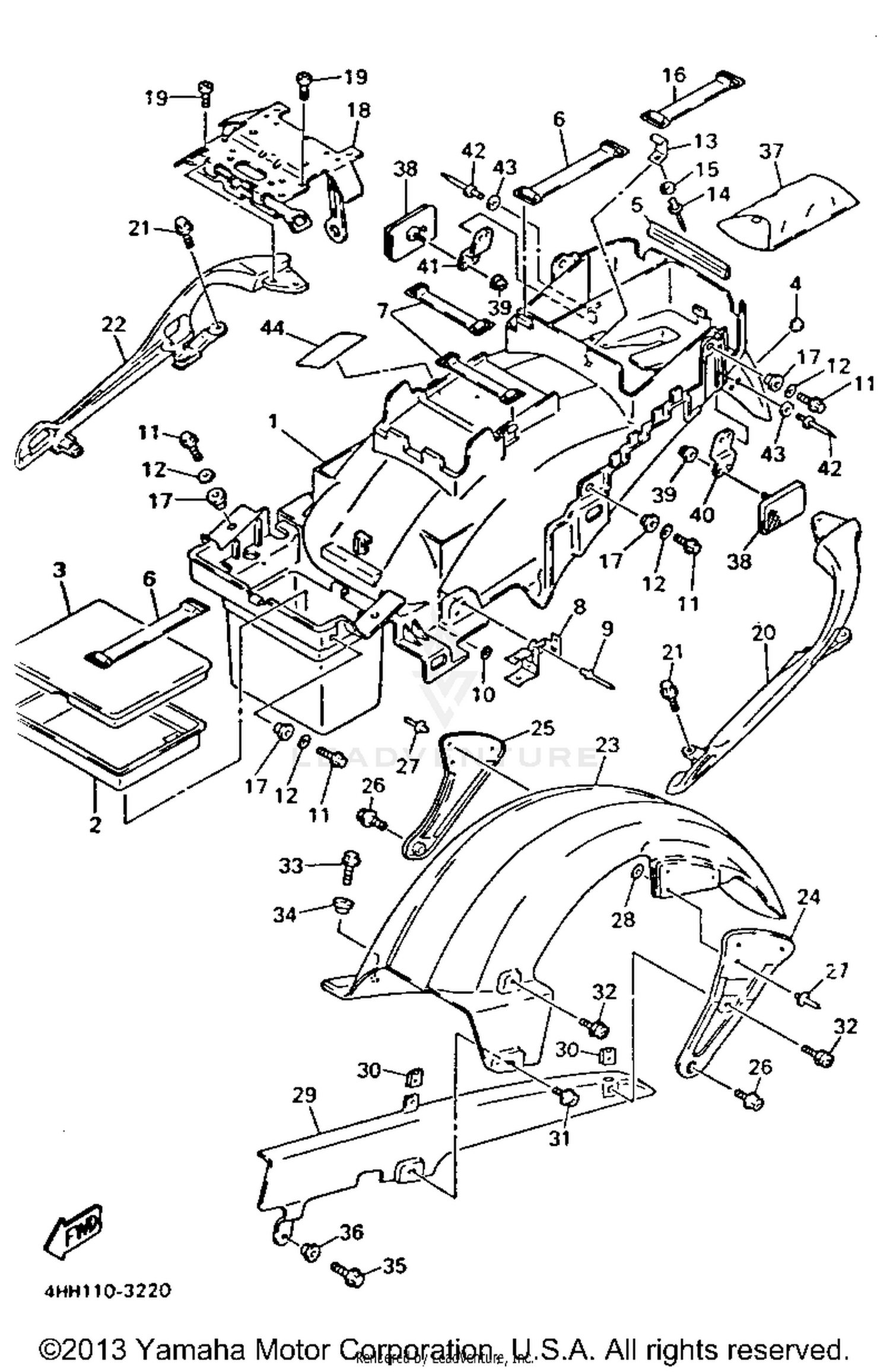

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUARD, MUD
4FV-21629-00-00
|
$192.99 | ||
|
Unavailable |
|||
|
#2
CASE 1
4BH-2384G-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#3
CASE 2
4BH-2384H-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#4
PLUG
4G0-21639-00-00
Superseded by 90338-07018-00
|
$6.49 | ||
|
Unavailable |
|||
|
#5
MOLE, SIDE COVER 1
4BH-2171L-00-00
Superseded by 4WV-2171L-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, BATTERY
26H-82131-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, BATTERY
2T4-82131-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, STARTER SWITCH
4BH-2139A-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#9
RIVET, BLIND
90267-40105-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-044H9-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOOK, BAND
36Y-2175R-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#14
RIVET, BLIND
90267-40105-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-044H9-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
BAND, BATTERY
26H-82131-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#17
COLLAR
90387-07717-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, TAILLIGHT
4BH-2117E-00-00
|
$110.99 | ||
|
Unavailable |
|||
|
#19
BOLT
91316-08016-00
Superseded by 91317-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY, REAR
4BH-21644-00-P2
|
$492.99 | ||
|
Unavailable |
|||
|
#21
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY, REAR
4BH-21645-00-P2
|
$459.99 | ||
|
Unavailable |
|||
|
#23
REAR FENDER COMP.
4BH-21650-00-00
|
$279.99 | ||
|
Unavailable |
|||
|
#24
STAY 1
4BH-2164F-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#25
STAY 2
4BH-2164G-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#26
BOLT
90109-085E2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
RIVET, BLIND
90267-48162-00
|
$5.49 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
90201-04325-00
Superseded by 90201-04027-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
CASE, CHAIN
4BH-22311-00-00
|
$70.09 | ||
|
Unavailable |
|||
|
#30
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, WITH WASHER
90159-06071-00
Superseded by 90159-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95826-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-062M9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE
95816-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
90387-06737-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
TOOL KIT
4BH-28100-00-00
Superseded by 4BH-28100-01-00
|
$171.99 | ||
|
Unavailable |
|||
|
#38
REAR REFLECTOR ASSY
3G1-85130-01-00
Superseded by 4KM-85130-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BRACKET, REAR STAY 2
2LJ-21689-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#41
BRACKET, REAR STAY
2LJ-21688-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#42
RIVET, BLIND
90267-40076-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLATE
90201-044A2-00
Superseded by 90201-044H9-00
|
$7.49 | ||
|
Unavailable |
|||
|
#44
PLATE, EPA CAL
4HH-2179U-00-00
Superseded by 4HH-2179U-01-00
|
$82.99 | ||
|
Unavailable |
|||
|
#
PLATE, EPA(NON-CA)
4HH-2179W-00-00
Superseded by 4HH-2179W-01-00
|
$69.99 | ||
|
Unavailable |
|||
