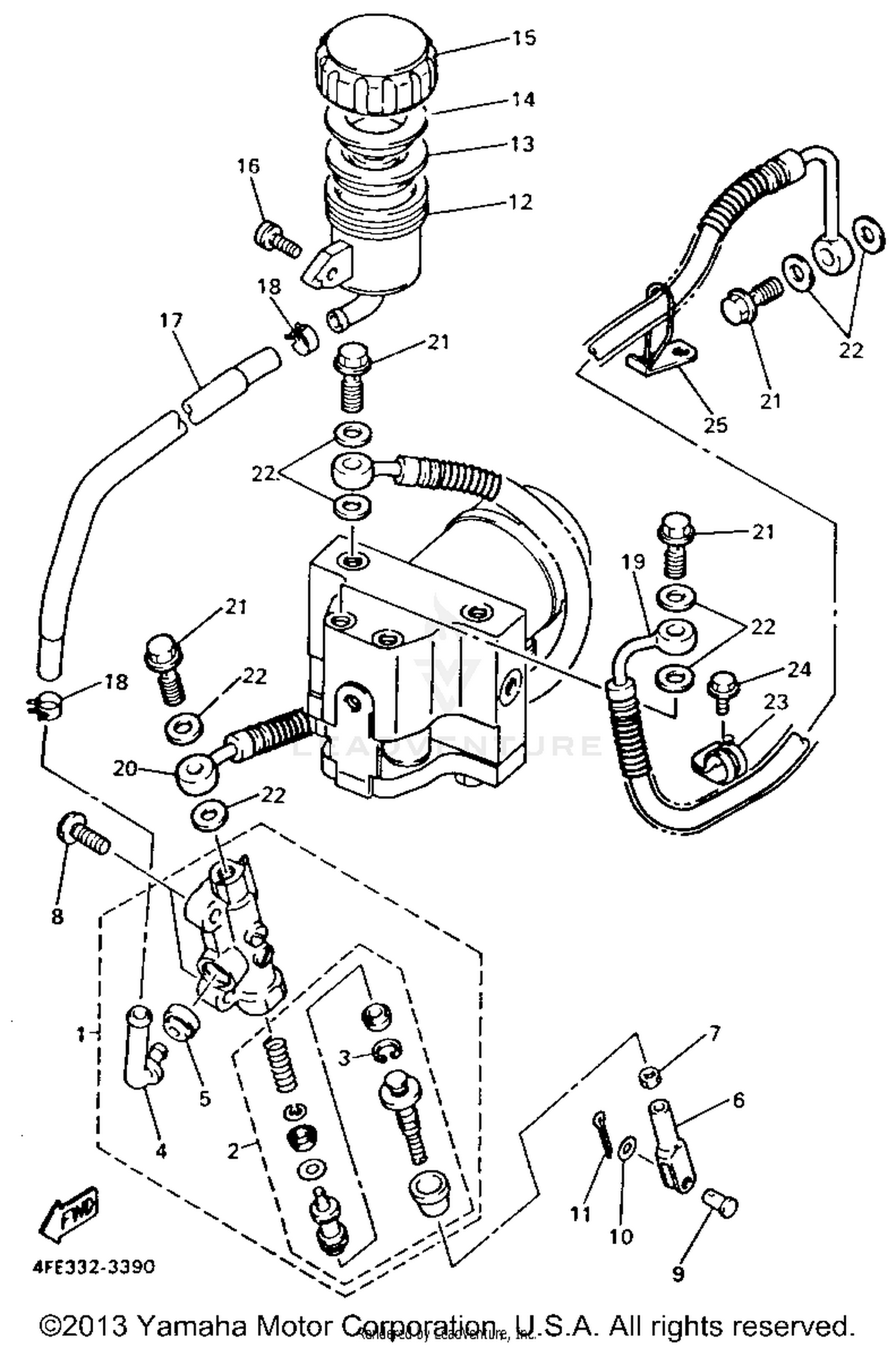

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RR. MASTER CYLINDER ASSY.
4BH-2583V-00-00
|
$188.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
4BH-W0042-50-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
3LN-2585G-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT
4BP-2582A-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
4BP-2585F-00-00
Superseded by 4BP-2585F-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT
31A-27222-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, ROUND HEAD
90150-08034-00
|
$1.59 | ||
|
Unavailable |
|||
|
#9
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK, RESERVOIR
47X-25894-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM, RESERVOIR
360-25854-00-00
Superseded by 360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, WITH WASHER
90159-06056-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, RESERVOIR
4BH-25895-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#18
CLIP
90467-14057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRAKE HOSE SET (4FE)
4FE-2582J-00-00
Superseded by 99999-02450-00
|
$153.99 | ||
|
Unavailable |
|||
|
#20
HOSE, BRAKE 7
4FE-2582K-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER, BRAKE HOSE 1
3XV-25875-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
95026-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, BRAKE HOSE
4BH-25886-10-00
|
$22.99 | ||
|
Unavailable |
|||
