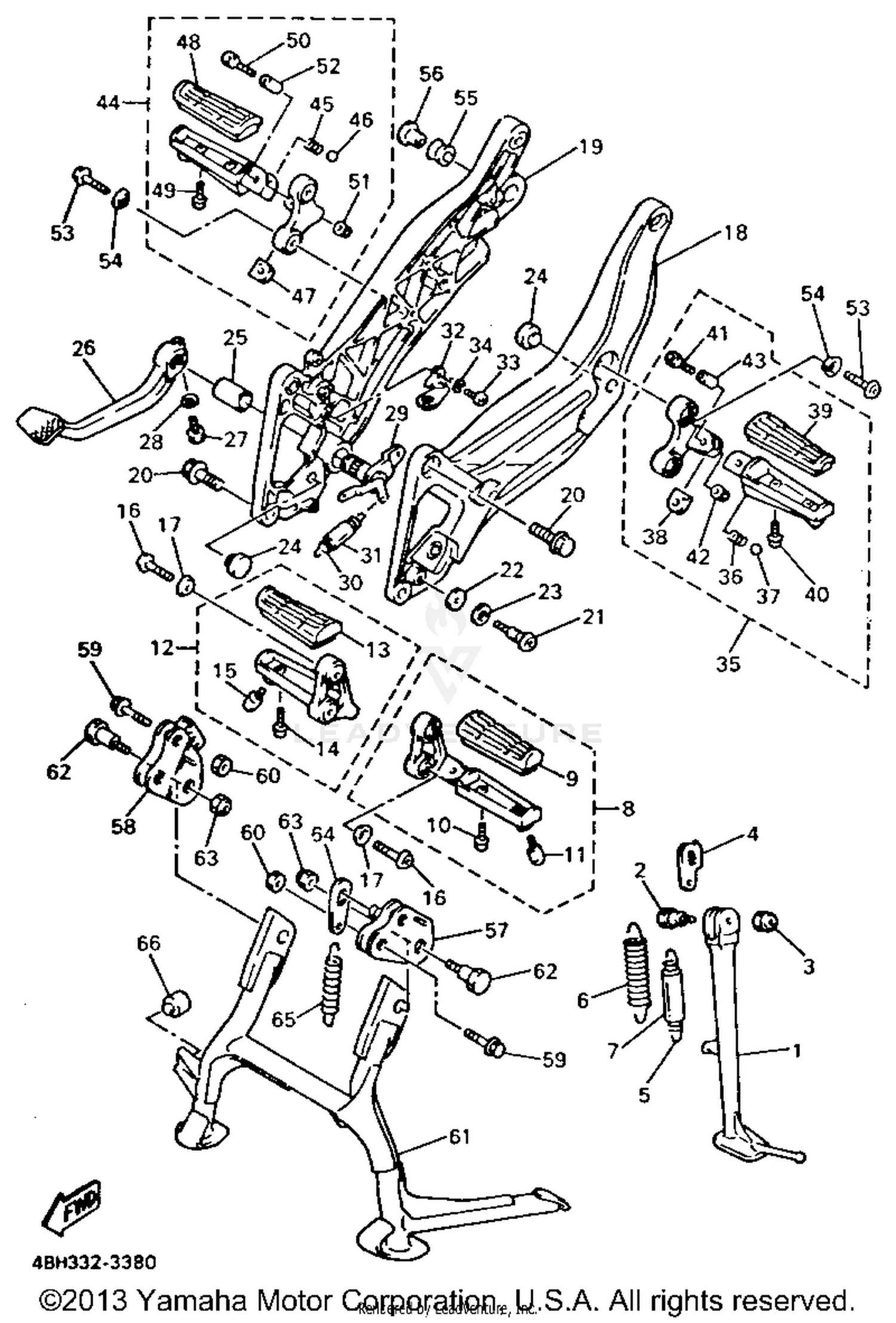

Stand Footrest Diagram

Item MSRP Qty
#1 STAND, SIDE
4BH-27311-00-00
 $113.99
Unavailable
#2 BOLT
90109-107F8-00
 $5.70
Unavailable
#3 NUT, SELF-LOCKING
90185-10037-00
 $8.49
Available to order.
Add to View Price
#4 LINK, SIDE STAND
2KT-27315-00-00
Superseded by 3VD-27315-00-00
 $7.49
Available to order.
Add to View Price
#5 SPRING, TENSION
90506-18224-00
 $5.49
Available to order.
Add to View Price
#6 SPRING, TENSION
90506-26225-00
 $10.49
Available to order.
Add to View Price
#7 GUIDE, SIDE STAND
1TX-27351-00-00
 $7.49
Available to order.
Add to View Price
#8 FRT FOOTREST ASY L
4BH-27410-00-00
Superseded by 4BH-27410-01-00
 $154.99
Unavailable
#9 COVER, FOOTREST
3YX-27413-00-00
 $27.99
Available to order.
Add to View Price
#10 SCREW, PAN HEAD
90159-05122-00
Superseded by 98507-05014-00
 $7.49
Available to order.
Add to View Price
#11 BOLT
3HE-27435-00-00
 $26.99
Available to order.
Add to View Price
#12 FRT FOOTREST ASY R
4BH-27420-00-00
Superseded by 4BH-27420-01-00
 $176.99
Unavailable
#13 COVER, FOOTREST
3YX-27413-00-00
 $27.99
Unavailable
#14 SCREW, PAN HEAD
90159-05122-00
Superseded by 98507-05014-00
 $7.49
Unavailable
#15 BOLT
3HE-27435-00-00
 $26.99
Unavailable
#16 BOLT, HEXAGON SOCKET HEAD
90110-08071-00
 $8.49
Available to order.
Add to View Price
#17 WASHER
90209-08295-00
 $7.49
Available to order.
Add to View Price
#18 BRACKET 2
4BH-27442-00-P1
 $423.99
Unavailable
#19 BRACKET 3
4BH-27443-00-P1
 $266.99
Unavailable
#20 BOLT, WASHER BASED
90105-10678-00
 $3.16
Unavailable
#21 BOLT
4BP-27434-01-00
Superseded by 4BP-27434-11-00
 $3.05
Available to order.
Add to View Price
#22 WASHER, PLATE
90201-08326-00
 $7.49
Available to order.
Add to View Price
#23 WASHER, PLATE
90201-127J6-00
 $7.49
Available to order.
Add to View Price
#24 STOPPER, MAIN STAND
128-27114-00-00
 $7.49
Available to order.
Add to View Price
#25 BUSH, SOLID
90380-20213-00
 $26.99
Available to order.
Add to View Price
#26 PEDAL, BRAKE
4BH-27211-00-00
 $153.99
Unavailable
#27 BOLT
90109-06468-00
 $6.49
Available to order.
Add to View Price
#28 WASHER, SPRING
92995-06100-00
 $3.20
Available to order.
Add to View Price
#29 SHAFT, BRAKE PEDAL
4BH-27212-00-00
 $52.67
Unavailable
#30 SPRING, TENSION
90506-20192-00
 $6.49
Available to order.
Add to View Price
#31 HOSE
90446-14359-00
 $8.49
Available to order.
Add to View Price
#32 BRACKET 4
4BH-2741L-00-00
 $11.49
Unavailable
#33 SCREW, PAN HEAD
98580-05012-00
 $7.49
Available to order.
Add to View Price
#34 WASHER, SPRING
92990-05100-00
 $0.30
Available to order.
Add to View Price
#35 RR FOOTREST ASY 1
4BH-27430-00-00
Superseded by 4BH-27430-01-00
 $138.99
Unavailable
#36 SPRING, COMPRESSION
90501-12743-00
 $3.90
Available to order.
Add to View Price
#37 BALL
93501-04011-00
 $7.49
Available to order.
Add to View Price
#38 WASHER, SPECIAL
1HX-27437-00-00
 $9.49
Available to order.
Add to View Price
#39 COVER, FOOTREST
3YX-27413-00-00
 $27.99
Unavailable
#40 SCREW, PAN HEAD
90159-05122-00
Superseded by 98507-05014-00
 $7.49
Unavailable
#41 BOLT, HEXAGON SOCKET HEAD
91311-06035-00
Superseded by 91314-06035-00
 $7.49
Available to order.
Add to View Price
#42 NUT, U
95601-06100-00
Superseded by 95617-06100-00
 $7.49
Available to order.
Add to View Price
#43 COLLAR
90387-064H8-00
 $7.49
Available to order.
Add to View Price
#44 REAR FOOTREST ASSY 2
4BH-27440-00-00
Superseded by 4BH-27440-01-00
 $138.99
Unavailable
#45 SPRING, COMPRESSION
90501-12743-00
 $3.90
Unavailable
#46 BALL
93501-04011-00
 $7.49
Unavailable
#47 WASHER, SPECIAL
1HX-27437-00-00
 $9.49
Unavailable
#48 COVER, FOOTREST
3YX-27413-00-00
 $27.99
Unavailable
#49 SCREW, PAN HEAD
90159-05122-00
Superseded by 98507-05014-00
 $7.49
Unavailable
#50 BOLT, HEXAGON SOCKET HEAD
91311-06035-00
Superseded by 91314-06035-00
 $7.49
Unavailable
#51 NUT, U
95601-06100-00
Superseded by 95617-06100-00
 $7.49
Unavailable
#52 COLLAR
90387-064H8-00
 $7.49
Unavailable
#53 BOLT, HEXAGON SOCKET HEAD
90110-08071-00
 $8.49
Unavailable
#54 WASHER
90209-08295-00
 $7.49
Unavailable
#55 DAMPER, FOOTREST
2H7-27414-00-00
 $8.49
Available to order.
Add to View Price
#56 COLLAR
90387-10636-00
 $13.99
Available to order.
Add to View Price
#57 BRACKET, MAIN STAND
4BH-27151-00-00
 $57.99
Unavailable
#58 BRACKET, MAIN STAND 2
4BH-27152-00-00
 $66.99
Unavailable
#59 BOLT, WASHER BASED
90105-10188-00
 $12.49
Available to order.
Add to View Price
#60 NUT
90179-10247-00
Superseded by 90179-10658-00
 $8.49
Available to order.
Add to View Price
#61 STAND, MAIN
4BH-27111-00-00
Superseded by 4BH-27111-01-00
 $639.99
Unavailable
#62 BOLT
90109-100E6-00
 $10.99
Available to order.
Add to View Price
#63 NUT, SELF-LOCKING
90185-10091-00
 $8.49
Available to order.
Add to View Price
#64 LINK, MAIN STAND
4BH-27115-00-00
 $9.49
Unavailable
#65 SPRING, TENSION
90506-45278-00
 $17.99
Available to order.
Add to View Price
#66 STOPPER, MAIN STAND
2GM-27114-00-00
 $10.49
Available to order.
Add to View Price
