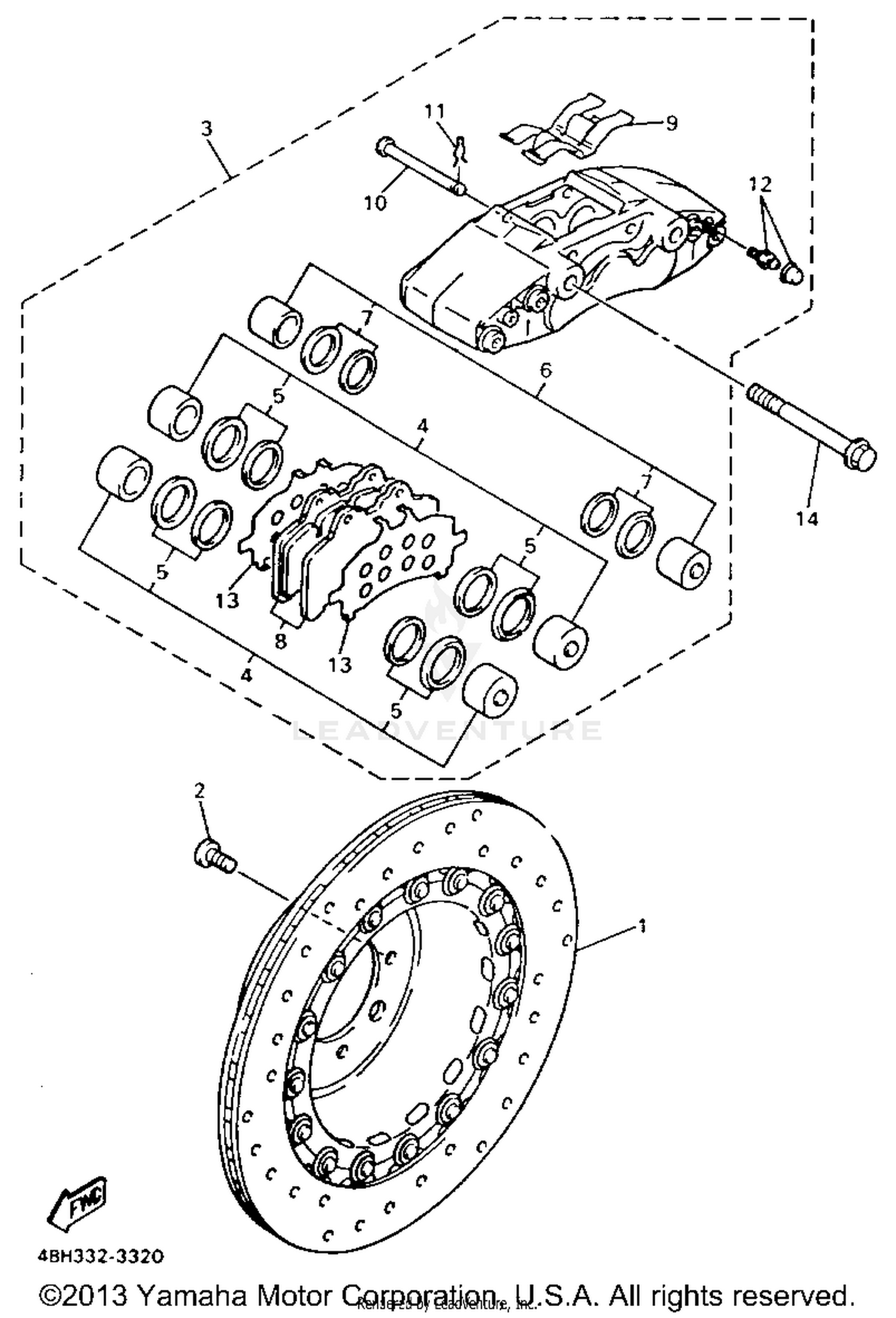

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC BRAKE ASSEMBLY
4BH-2581T-01-00
|
$839.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-08789-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSEMBLY (LEFT)
4BH-2580T-01-00
Superseded by 4BH-2580T-02-00
|
$1,216.99 | ||
|
Unavailable |
|||
|
#4
PISTON ASSEMBLY, CALIPER
4BH-W0057-00-00
Superseded by 4BH-W0057-01-00
|
$82.99 | ||
|
Unavailable |
|||
|
#5
CALIPER SEAL KIT
4BH-W0047-00-00
Superseded by 4BH-W0047-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#6
PISTON ASSEMBLY, CALIPER
4BH-W0057-10-00
Superseded by 4BH-W0057-01-00
|
$82.99 | ||
|
Unavailable |
|||
|
#7
CALIPER SEAL KIT
3GM-W0047-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT
4BH-W0045-01-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUPPORT, PAD
4BH-25919-01-00
|
$61.99 | ||
|
Unavailable |
|||
|
#10
PIN, PAD
4BH-25924-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#11
CLIP
3MA-25925-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM, CALIPER
4BH-25827-01-00
|
$19.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
90105-12689-00
|
$7.49 | ||
|
Unavailable |
|||
