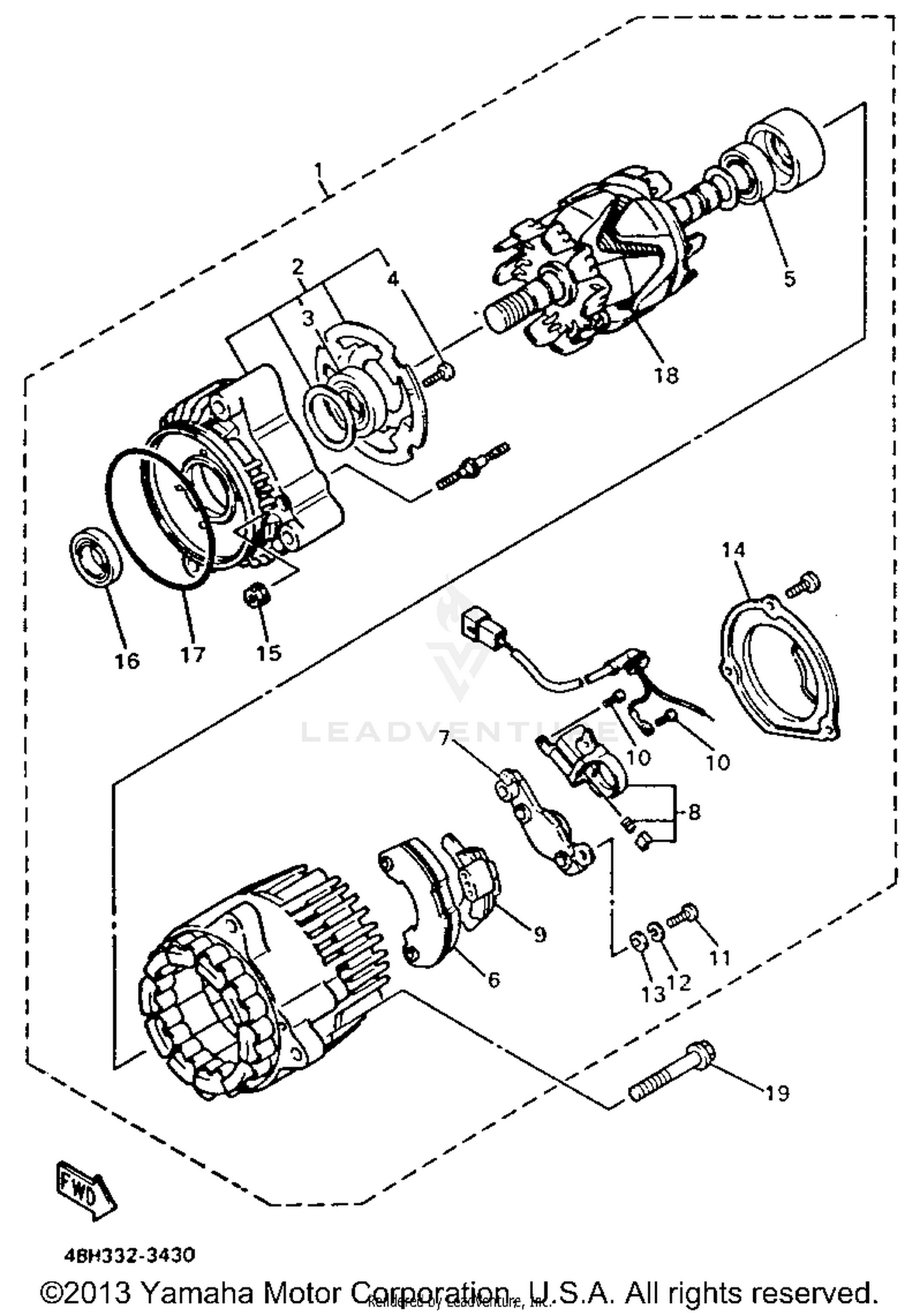

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
A.C. GENERATOR ASSY
4BH-81600-00-00
Superseded by 4KM-81600-10-00
|
$712.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STATOR ASSY
4BH-81634-00-00
Superseded by 4KG-81634-00-00
|
$361.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
4BH-81643-00-00
Superseded by 93306-20226-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
4BH-81645-00-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
4BH-81643-10-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RECTIFIER ASSEMBLY
4BH-81970-00-00
|
$297.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
VOLTAGE REGULATOR ASSEMBLY
36Y-81910-50-00
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRUSH HOLDER ASSEMBLY
3FV-81619-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, RECTIFIER
4BH-81972-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
3FV-81645-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98501-05018-00
Superseded by 98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER ASSEMBLY
4BH-81604-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
36Y-81638-50-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
2KT-81642-50-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROTOR ASSEMBLY
4BH-81660-00-00
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95816-08065-00
Superseded by 90105-084A1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
