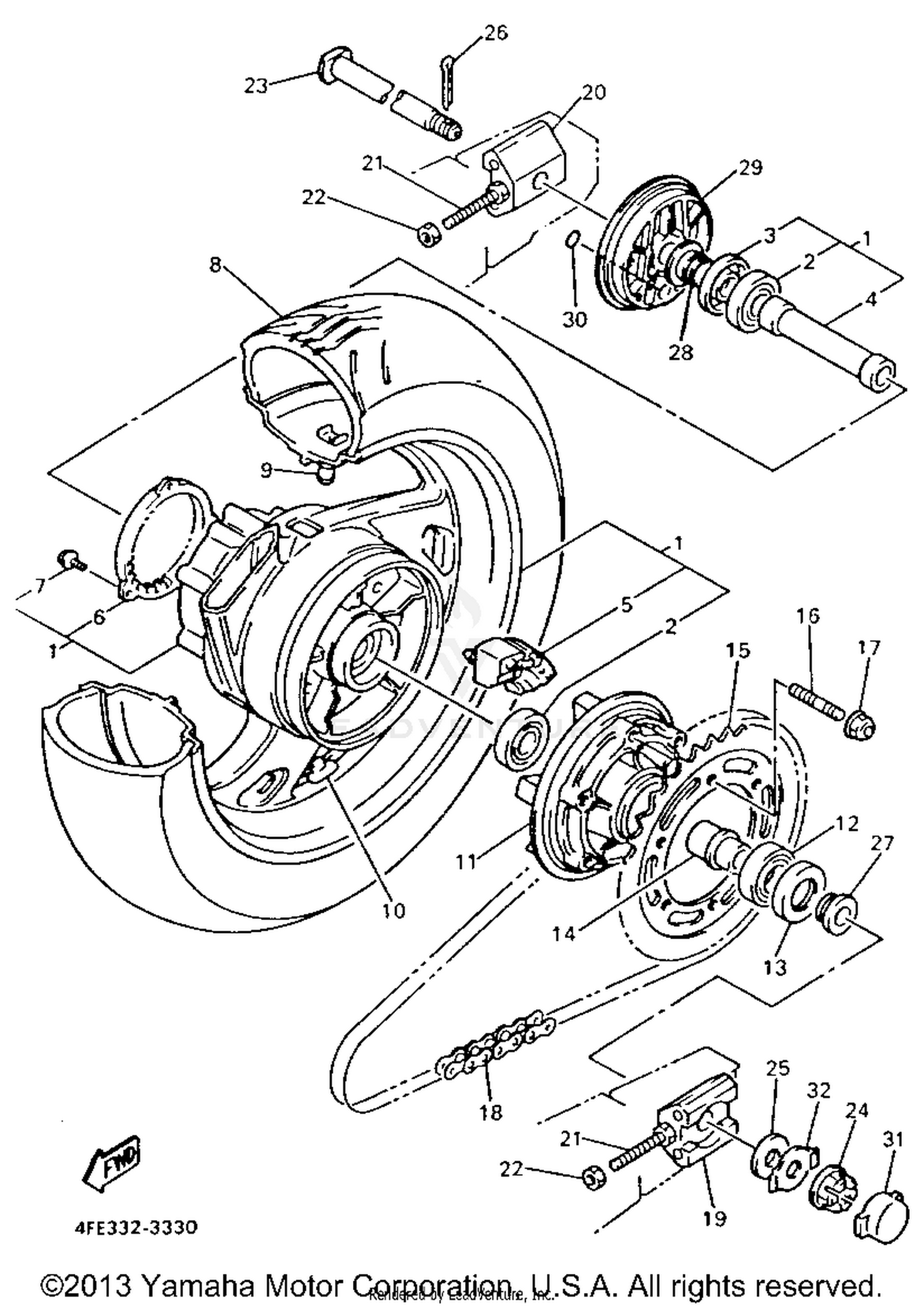

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
4FE-25370-00-P0
|
$1,083.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-30437-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93106-30029-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER
90560-20386-00
|
$14.56 | ||
|
Unavailable |
|||
|
#5
DAMPER
2GH-25364-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROTOR, SENSOR
3YA-2517G-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#7
SCREW, WITH WASHER
90159-05155-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
TIRE (170/60 ZR17 D202)
94117-176Y0-00
|
$213.99 | ||
|
Unavailable |
|||
|
#9
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH, HUB
36Y-25366-01-00
|
$162.99 | ||
|
Unavailable |
|||
|
#12
BEARING
93306-30562-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93106-35030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, WHEEL
36Y-25377-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#15
SPROCKET, DRIVEN (47T)
2GH-25447-21-00
Superseded by 2GH-25447-22-00
|
$76.99 | ||
|
Unavailable |
|||
|
#16
BOLT, STUD
90116-10485-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CHAIN (DID532ZLVKA1-118L)
94571-31118-00
Superseded by 94581-57118-00
|
$421.99 | ||
|
Unavailable |
|||
|
#
CHAIN (DID532ZLVKA1-118L)
94581-57118-00
|
$421.99 | ||
|
Unavailable |
|||
|
#19
PULLER, CHAIN 1
3GM-25388-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#20
PULLER, CHAIN 2
3GM-25389-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#21
BOLT
90101-08705-00
Superseded by 90101-08777-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
AXLE, WHEEL
3GM-25381-00-00
Superseded by 3GM-25381-10-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, CASTLE
90171-18051-00
|
$13.99 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-18264-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-203X0-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
90387-202X9-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOUSING, SENSOR REAR
4FE-2537A-00-P0
|
$268.99 | ||
|
Unavailable |
|||
|
#30
O-RING
93210-18322-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
