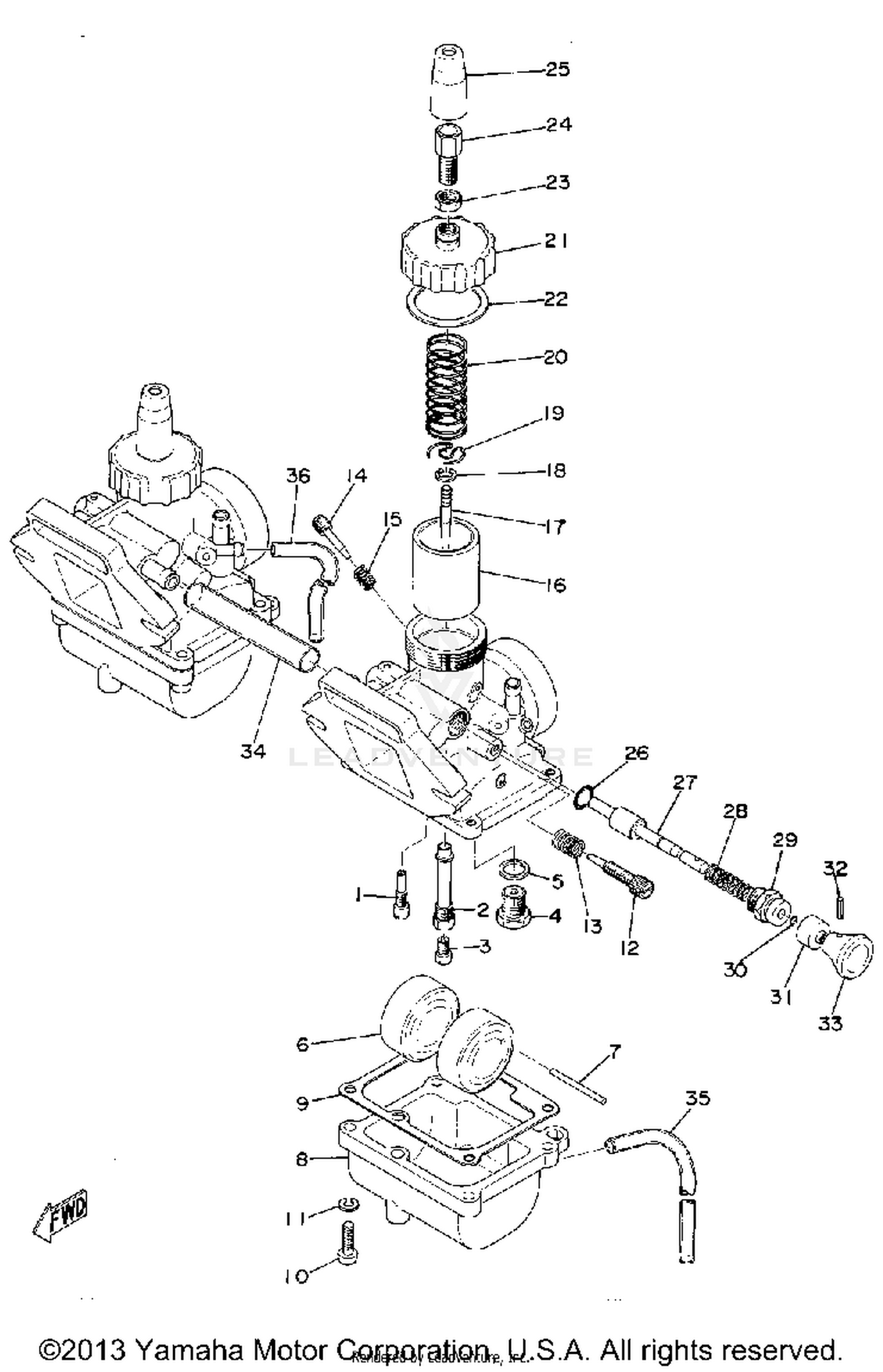

1974 Yamaha RD200 CARBURETOR OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
397-14301-63-00
|
$79.18 | ||
|
Unavailable |
|||
|
#
JET, PILOT #42
367-14342-21-00
|
$4.84 | ||
|
Unavailable |
|||
|
#2
NOZZLE, MAIN
396-14341-00-00
|
$22.72 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 2
397-14302-63-00
|
$79.72 | ||
|
Unavailable |
|||
|
#3
JET, MAIN #94
396-14343-47-00
|
$7.90 | ||
|
Unavailable |
|||
|
#
JET, MAIN #88
396-14343-44-00
|
$5.64 | ||
|
Unavailable |
|||
|
#
JET, MAIN #96
396-14343-48-00
|
$4.35 | ||
|
Unavailable |
|||
|
#
JET, MAIN #100
396-14343-50-00
|
$7.99 | ||
|
Unavailable |
|||
|
#
JET, MAIN #92
396-14343-46-00
|
$5.04 | ||
|
Unavailable |
|||
|
#4
NEEDLE VALVE ASSEMBLY (396-1
1J2-14390-25-00
|
$19.99 | ||
|
Unavailable |
|||
|
#5
GASKET
367-14195-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLOAT
367-14385-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, FLOAT
367-14386-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BODY, FLOAT CHMBR 1
397-14181-14-00
|
$39.99 | ||
|
Unavailable |
|||
|
#9
GASKET, FLOAT CHMBR
389-14384-00-00
|
$11.46 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98580-04010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PILOT ADJUSTING
396-14211-00-00
|
$10.76 | ||
|
Unavailable |
|||
|
#13
SPRING, PILOT ADJUSTING
389-14212-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#14
SCREW, AIR ADJUSTING
396-14323-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#15
SPRING, THRTL STOP
389-14333-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#16
VALVE, THROTTLE 1
397-14312-20-00
|
$14.49 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE 2
397-14313-20-00
|
$18.49 | ||
|
Unavailable |
|||
|
#17
NEEDLE
397-14336-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#18
CLIP
389-14137-00-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAT, SPRING
396-14136-02-00
|
$2.90 | ||
|
Unavailable |
|||
|
#20
SPRING, THRTL VALVE
396-14331-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#21
CAP, MIXING CHAMBER
389-14168-00-33
|
$7.26 | ||
|
Unavailable |
|||
|
#22
GASKET
389-14126-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#23
NUT, CABLE ADJUSTING
288-14161-00-00
Superseded by 85L-14161-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, CABLE ADJUSTING
396-14124-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#25
CAP
367-14169-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#26
O-RING
389-14147-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#27
PLUNGER, STARTER
396-14371-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#28
SPRING, PLUNGER
389-14335-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#29
CAP, PLUNGER
396-14374-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#30
CLIP, PLUNGER
389-14138-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#31
COVER, PLUNGER CAP
389-14373-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#32
PIN, SPRING
91690-20008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
KNOB, STARTER
389-14261-01-00
|
$8.06 | ||
|
Unavailable |
|||
|
#34
PIPE
397-14349-00-00
|
$0.89 | ||
|
Unavailable |
|||
|
#35
PIPE
389-14396-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#36
PIPE 1
396-14348-00-00
|
$3.57 | ||
|
Unavailable |
|||
