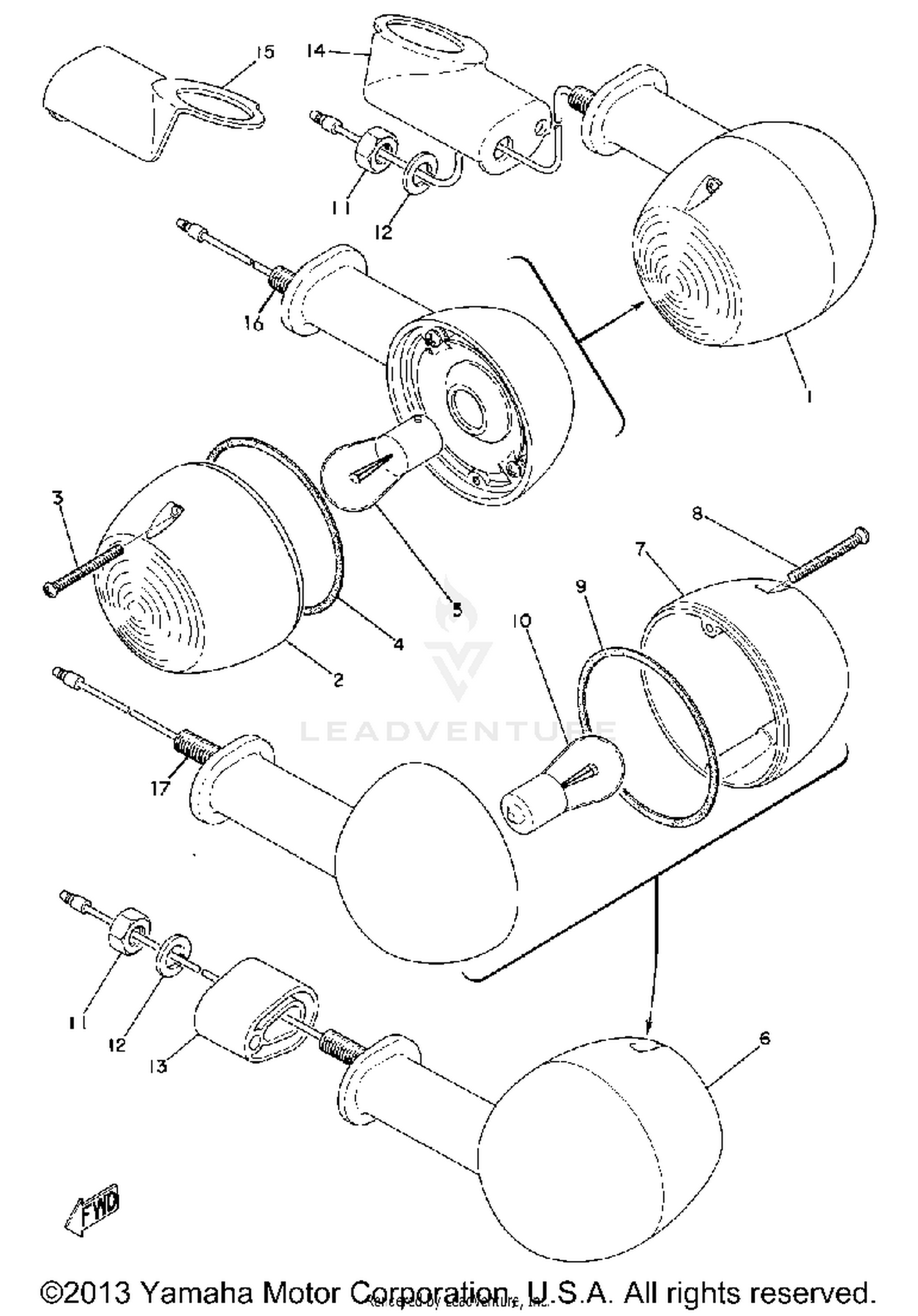

1974 Yamaha RD200 FLASHER LAMP OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT FLSHR LITE ASSEMBLY
278-83310-71-93
|
$49.99 | ||
|
Unavailable |
|||
|
#2
LENS, FLASHER
183-83312-70-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, LENS FITTING
183-83333-71-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, FLSHR LENS
183-83313-70-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB (12V-27W)
256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
R FLSHR LITE ASSEMBLY
287-83330-75-93
|
$26.99 | ||
|
Unavailable |
|||
|
#7
LENS, FLASHER
211-83332-75-00
|
$3.75 | ||
|
Unavailable |
|||
|
#8
SCREW, LENS FITTING
183-83333-71-00
|
$5.99 | ||
|
Unavailable |
|||
|
#9
GASKET, FLSHR LENS
183-83313-70-00
|
$6.99 | ||
|
Unavailable |
|||
|
#10
BULB (12V-27W)
256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#11
NUT
95333-08600-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR,FLASHER 1
249-83316-95-93
Superseded by 249-83316-95-00
|
$10.49 | ||
|
Unavailable |
|||
|
#14
STAY, FLASHER 1
337-83318-00-98
|
$3.70 | ||
|
Unavailable |
|||
|
#15
STAY, FLASHER 2
337-83328-00-98
|
$5.99 | ||
|
Unavailable |
|||
|
#16
BOLT, STUD
360-83367-09-00
|
$9.99 | ||
|
Unavailable |
|||
|
#17
BOLT, STUD
341-83367-09-00
|
$21.99 | ||
|
Unavailable |
|||
