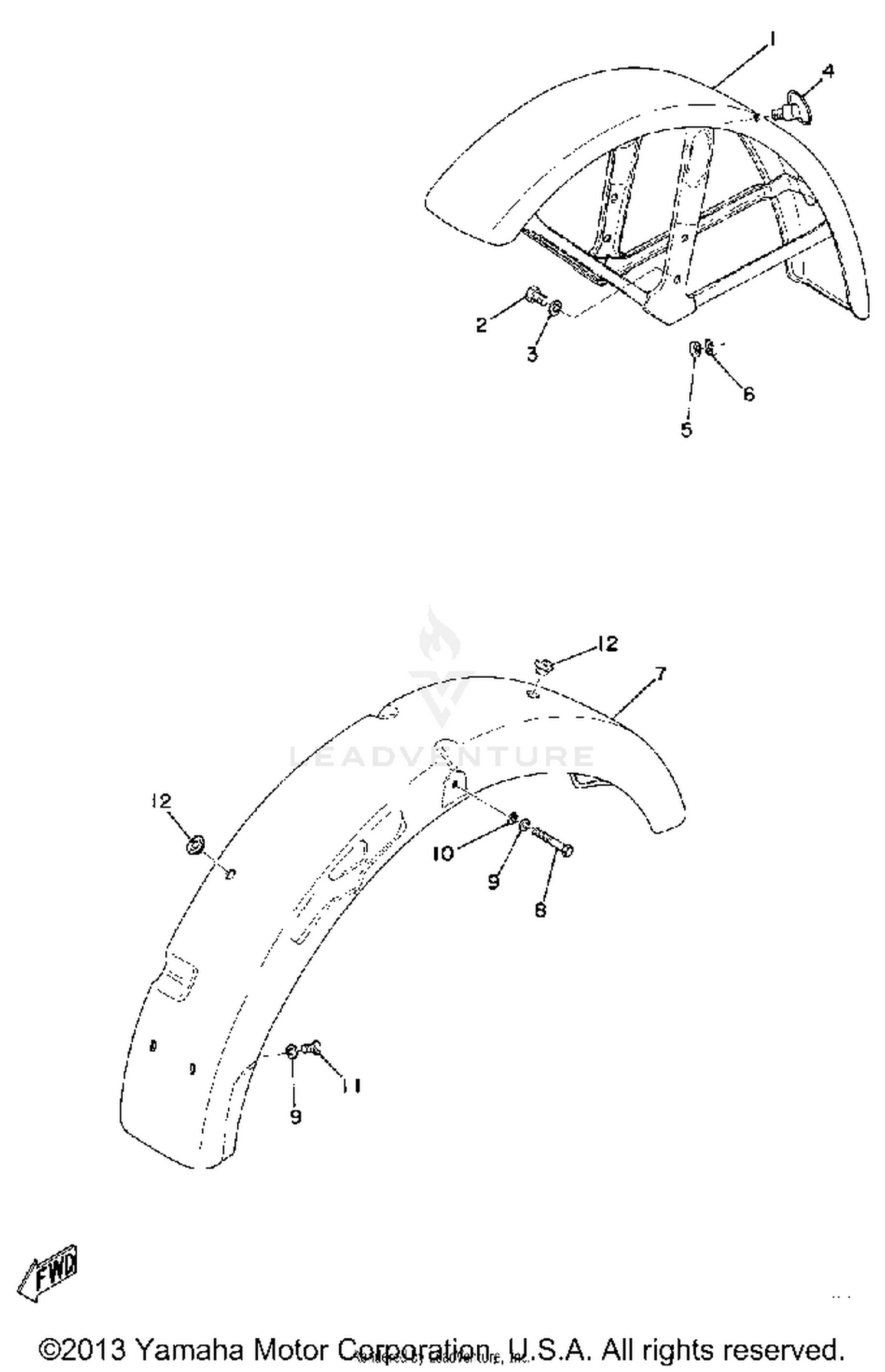

1974 Yamaha RD200 FRONT FENDER REAR FENDER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
337-21510-00-93
|
$59.81 | ||
|
Unavailable |
|||
|
#2
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, CABLE
174-21518-00-00
|
$3.20 | ||
|
Unavailable |
|||
|
#5
NUT, HEXAGON
95380-06600-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR
337-21610-00-93
|
$101.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97313-06045-00
Superseded by 97013-06045-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Unavailable |
|||
|
#10
WASHER, PLAIN
92990-06200-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97013-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-12013-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
