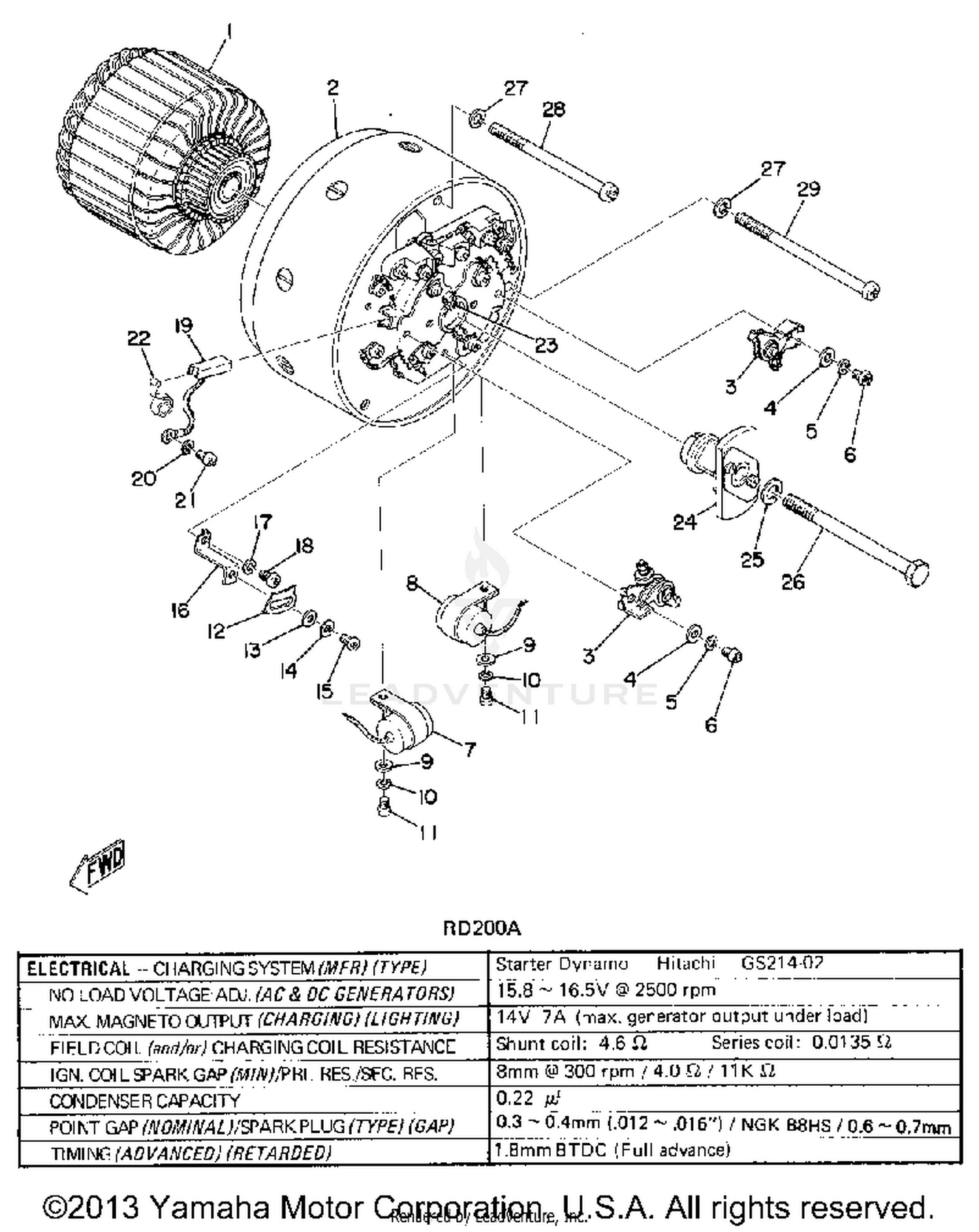

1974 Yamaha RD200 STARTER GENERATOR OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER GEN ASSEMBLY
397-81100-11-00
|
$379.99 | ||
|
Unavailable |
|||
|
#
ARMATURE
397-81155-11-00
|
$189.99 | ||
|
Unavailable |
|||
|
#2
STATOR ASSEMBLY
397-81110-10-00
|
$216.99 | ||
|
Unavailable |
|||
|
#3
CONTACT BRKR ASSEMBLY
183-81421-19-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLAIN
92990-04200-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-04008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CNDSR 2
132-81226-90-00
Superseded by 278-81625-91-00
|
$13.49 | ||
|
Unavailable |
|||
|
#8
CNDSR 2
132-81225-90-00
Superseded by 278-81625-91-00
|
$13.49 | ||
|
Unavailable |
|||
|
#9
WASHER, PLAIN
92990-04200-00
|
$1.55 | ||
|
Unavailable |
|||
|
#10
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98580-04008-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
PLATE, TIMING
133-81132-10-00
|
$2.77 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN
92990-04200-00
|
$1.55 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
FIXTURE, TMNG PLATE
299-81133-10-00
|
$3.45 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.05 | ||
|
Unavailable |
|||
|
#19
BRUSH
101-81111-10-00
|
$41.99 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98580-04008-00
|
$6.99 | ||
|
Unavailable |
|||
|
#22
SPRING, BRUSH
141-81113-10-00
|
$20.99 | ||
|
Unavailable |
|||
|
#23
LUBRICATOR
207-81331-10-00
|
$6.99 | ||
|
Unavailable |
|||
|
#24
GOVERNOR ASSEMBLY
337-81153-10-00
|
$49.72 | ||
|
Unavailable |
|||
|
#25
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, HEXAGON
90143-07021-00
|
$3.80 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN HEAD
98511-06085-00
Superseded by 98507-06085-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98501-06095-00
Superseded by 98507-06095-00
|
$1.75 | ||
|
Unavailable |
|||
