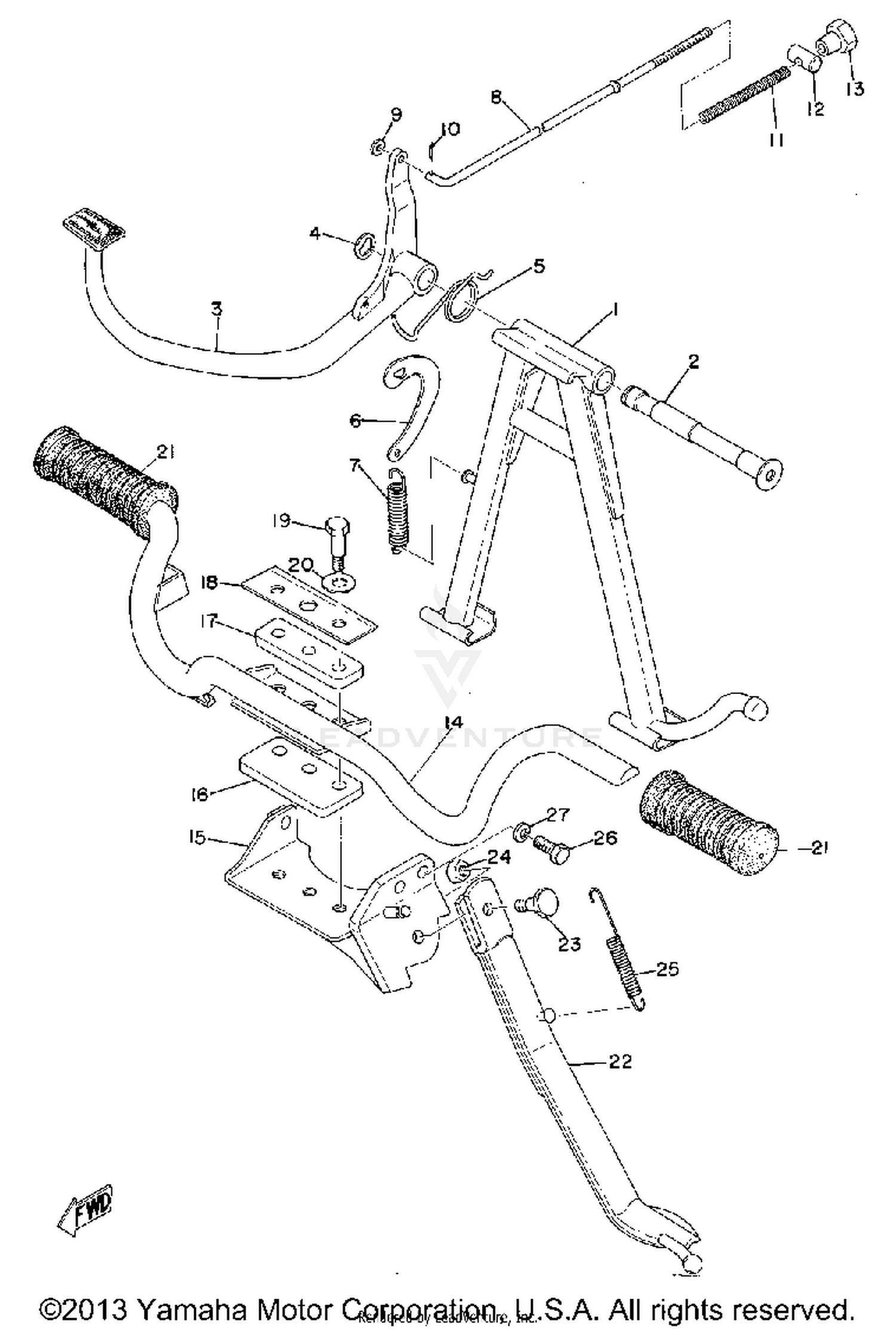

1974 Yamaha RD200 STAND FOOTREST BRAKE PEDAL OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
337-27111-00-00
|
$33.74 | ||
|
Unavailable |
|||
|
#2
SHAFT, MAIN STAND
122-27112-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PEDAL, BRAKE
1E8-27211-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#4
CIRCLIP
93430-12008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-32056-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
LINK, MAIN STAND
174-27115-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#7
SPRING, TENSION (174-27116-00)
90506-32056-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD, BRAKE
337-27231-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#9
WASHER, PLAIN
92990-06200-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-10245-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
90249-12008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90179-06411-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FOOTREST 1
337-27411-00-00
|
$29.94 | ||
|
Unavailable |
|||
|
#15
BRACKET, FOOTREST 1
337-27412-00-00
|
$15.04 | ||
|
Unavailable |
|||
|
#16
DAMPER, FOOTREST 2
132-27424-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#17
DAMPER, FOOTREST
132-27414-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#18
WASHER, FOOTREST
132-27417-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#19
BOLT (132-27416-00)
90109-08193-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-10132-00
Superseded by 90201-10774-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, FOOTREST
156-27413-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAND, SIDE
337-27311-00-00
|
$48.77 | ||
|
Unavailable |
|||
|
#23
BOLT
90109-08032-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, TENSION
90506-29052-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
