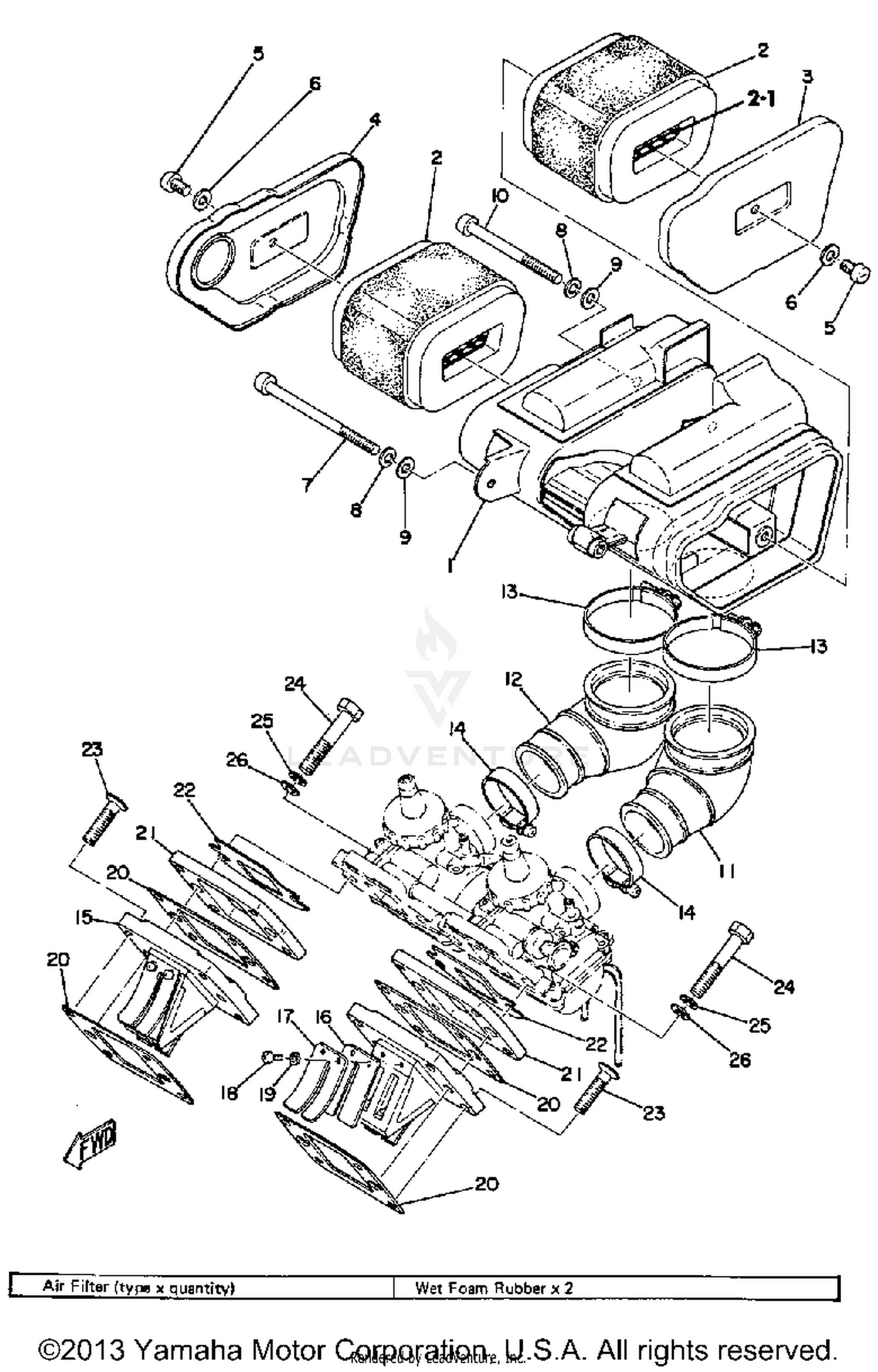

1974 Yamaha RD200 INTAKE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, AIR CLEANER 1
397-14411-00-00
|
$53.90 | ||
|
Unavailable |
|||
|
#2
ELEMENT, AIR CLNR
396-14451-09-00
|
$14.49 | ||
|
Unavailable |
|||
|
#3
CAP, CLEANER CASE 1
389-14412-01-00
|
$17.16 | ||
|
Unavailable |
|||
|
#4
CAP, CLEANER CASE 2
397-14422-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLAIN
92990-06200-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98580-06580-00
|
$5.49 | ||
|
Unavailable |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92990-06200-00
|
$5.99 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98501-06070-00
Superseded by 98580-06570-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, AIR CLNR 1
397-14453-01-00
|
$6.44 | ||
|
Unavailable |
|||
|
#12
JOINT, AIR CLNR 2
397-14463-01-00
|
$11.18 | ||
|
Unavailable |
|||
|
#13
CLAMP, HOSE
90460-49058-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, HOSE
90460-39052-00
Superseded by 90460-41191-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
REED VALVE ASSEMBLY
389-13610-01-00
|
$44.32 | ||
|
Unavailable |
|||
|
#16
REED, VALVE
389-13613-00-00
|
$16.26 | ||
|
Unavailable |
|||
|
#17
STOPPER, REED VALVE
389-13616-01-00
|
$4.35 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98580-03008-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92990-03100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET,VALVE SEAT
389-13621-00-00
Superseded by 389-13621-09-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
MANIFOLD, INTAKE
389-13555-00-00
|
$12.50 | ||
|
Unavailable |
|||
|
#22
GASKET, VALVE SEAT
389-13622-00-00
Superseded by 389-13622-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
UNAVAILABLE IN PRICE BOOK
92706-06050-0
|
|||
|
Unavailable |
|||
|
#24
BOLT
91316-08040-00
Superseded by 91317-08040-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
92906-08200-00
Superseded by 92907-08200-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
