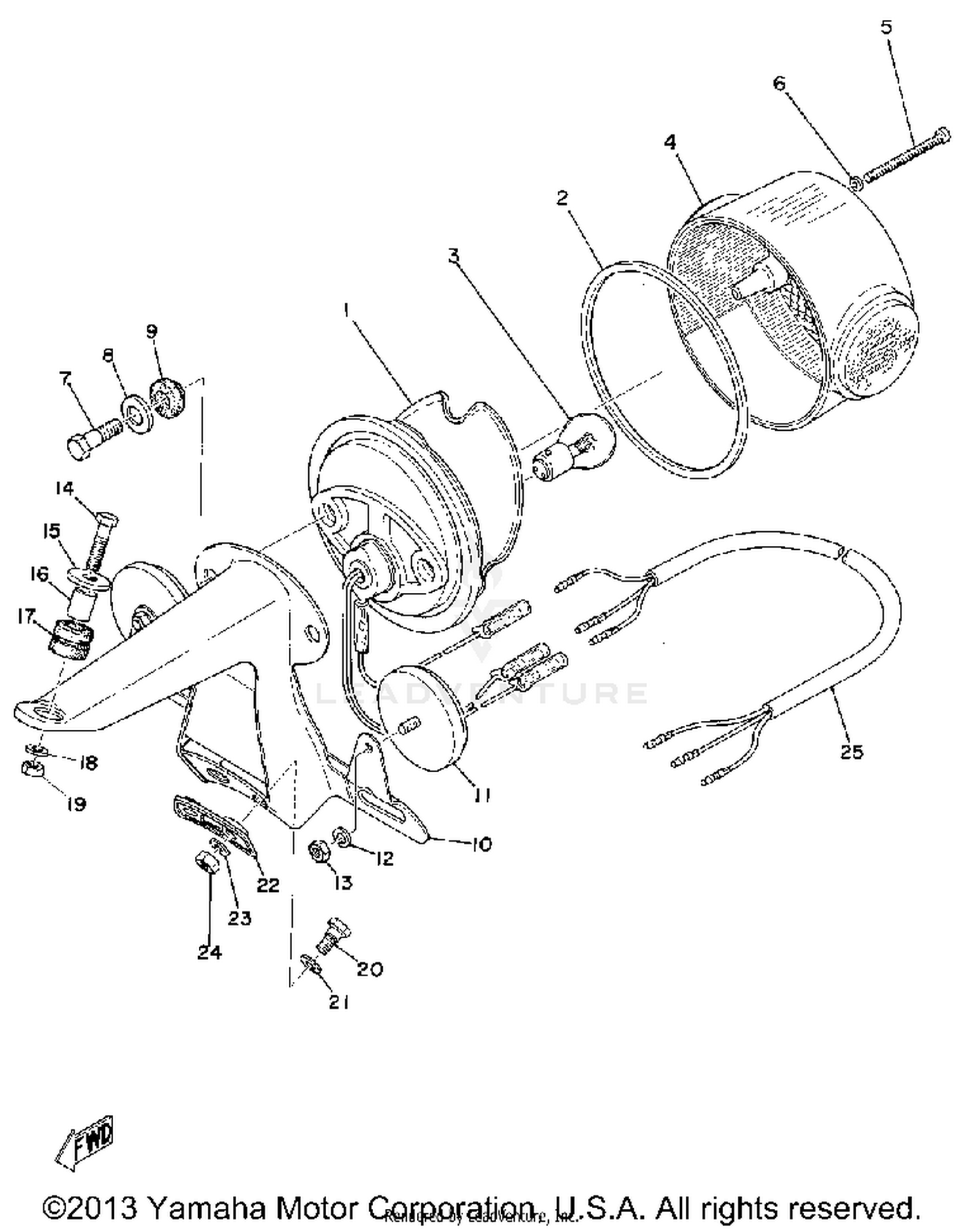

1974 Yamaha RD200 TAIL LAMP OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
341-84710-61-00
|
$46.99 | ||
|
Unavailable |
|||
|
#
BASE, TAILLIGHT
306-84711-61-00
|
$40.99 | ||
|
Unavailable |
|||
|
#2
GASKET, LENS
275-84523-60-00
|
$9.20 | ||
|
Unavailable |
|||
|
#3
BULB (12V-21/5W)
256-84714-61-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, TAILLIGHT
341-84721-60-00
|
$21.16 | ||
|
Unavailable |
|||
|
#5
SCREW, LENS FITTING
98580-04055-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
341-84722-60-00
|
$3.96 | ||
|
Unavailable |
|||
|
#7
SCREW
479-84526-00-00
|
$3.95 | ||
|
Unavailable |
|||
|
#8
WASHER, SPECIAL
2H7-84754-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
275-84527-60-00
|
$6.68 | ||
|
Unavailable |
|||
|
#10
BRACKET, LICENSE
341-84751-61-93
|
$76.99 | ||
|
Unavailable |
|||
|
#11
REFLECTOR, REAR 1
449-85131-02-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
95380-05600-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
90209-06095-00
Superseded by 90209-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-065L7-00
Superseded by 90387-06026-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-14023-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEXAGON
95380-06600-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90109-06005-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-08200-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER
337-84753-00-00
|
$0.70 | ||
|
Unavailable |
|||
|
#23
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Unavailable |
|||
|
#24
NUT, HEXAGON
95380-06600-00
|
$4.35 | ||
|
Unavailable |
|||
|
#25
CORD, TAILLIGHT
214-84517-00-00
|
$4.15 | ||
|
Unavailable |
|||
