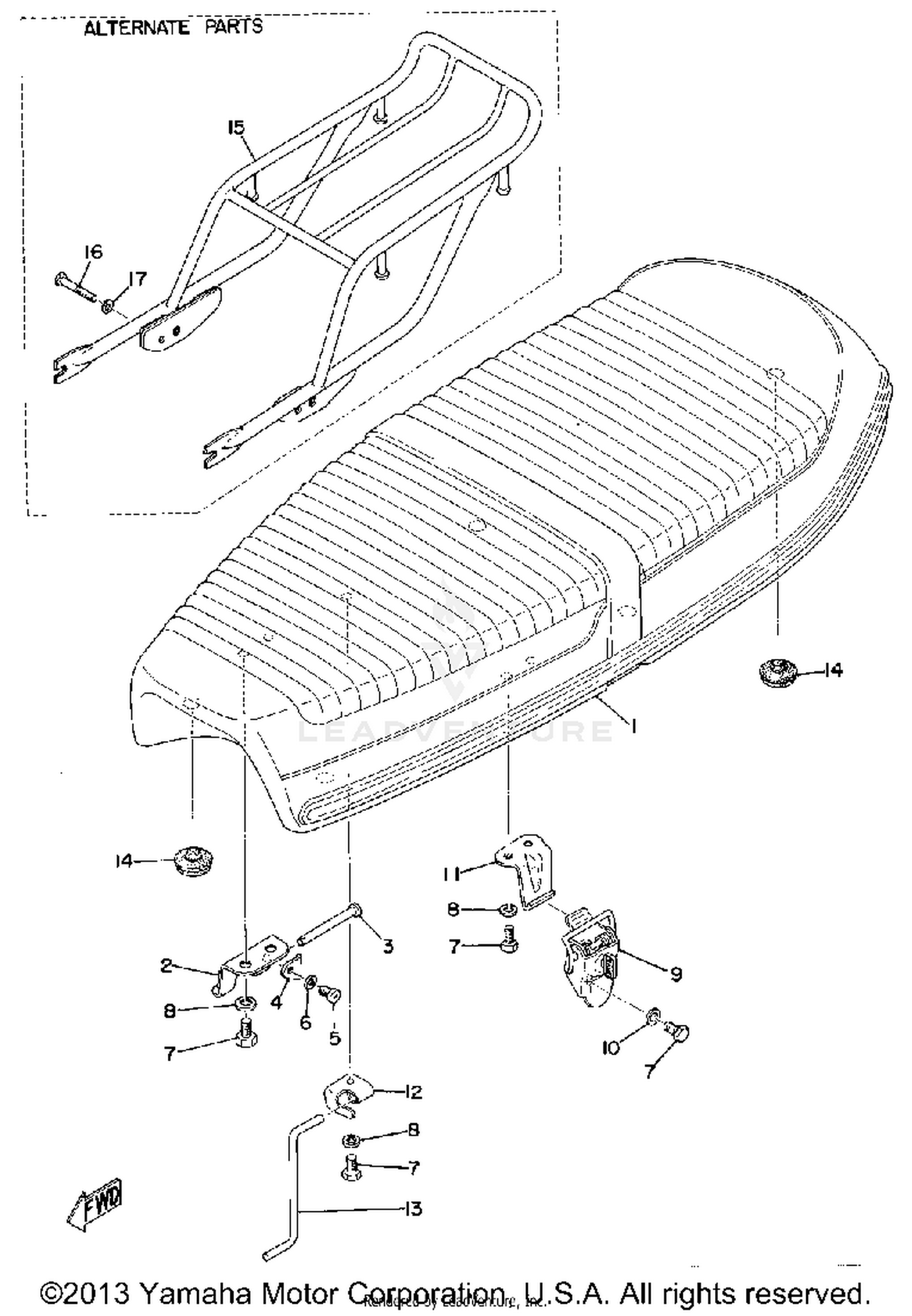

1974 Yamaha RD200 SEAT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLY
398-24730-02-00
|
$175.99 | ||
|
Unavailable |
|||
|
#
COVER, DOUBLE SEAT
398-24731-00-00
|
$45.96 | ||
|
Unavailable |
|||
|
#2
HINGE, SEAT
389-24726-00-33
|
$8.88 | ||
|
Unavailable |
|||
|
#3
PIN, CLEVIS
91701-05055-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, TAIL
389-24756-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97013-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Unavailable |
|||
|
#9
SEAT LOCK ASSEMBLY
526-24705-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#10
WASHER, PLAIN
92990-06200-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, SEAT
278-24728-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#12
BRACKET, SEAT
278-24748-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#13
STOPPER
337-24768-00-00
|
$0.89 | ||
|
Unavailable |
|||
|
#14
PAD, SEAT
1L9-24741-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
