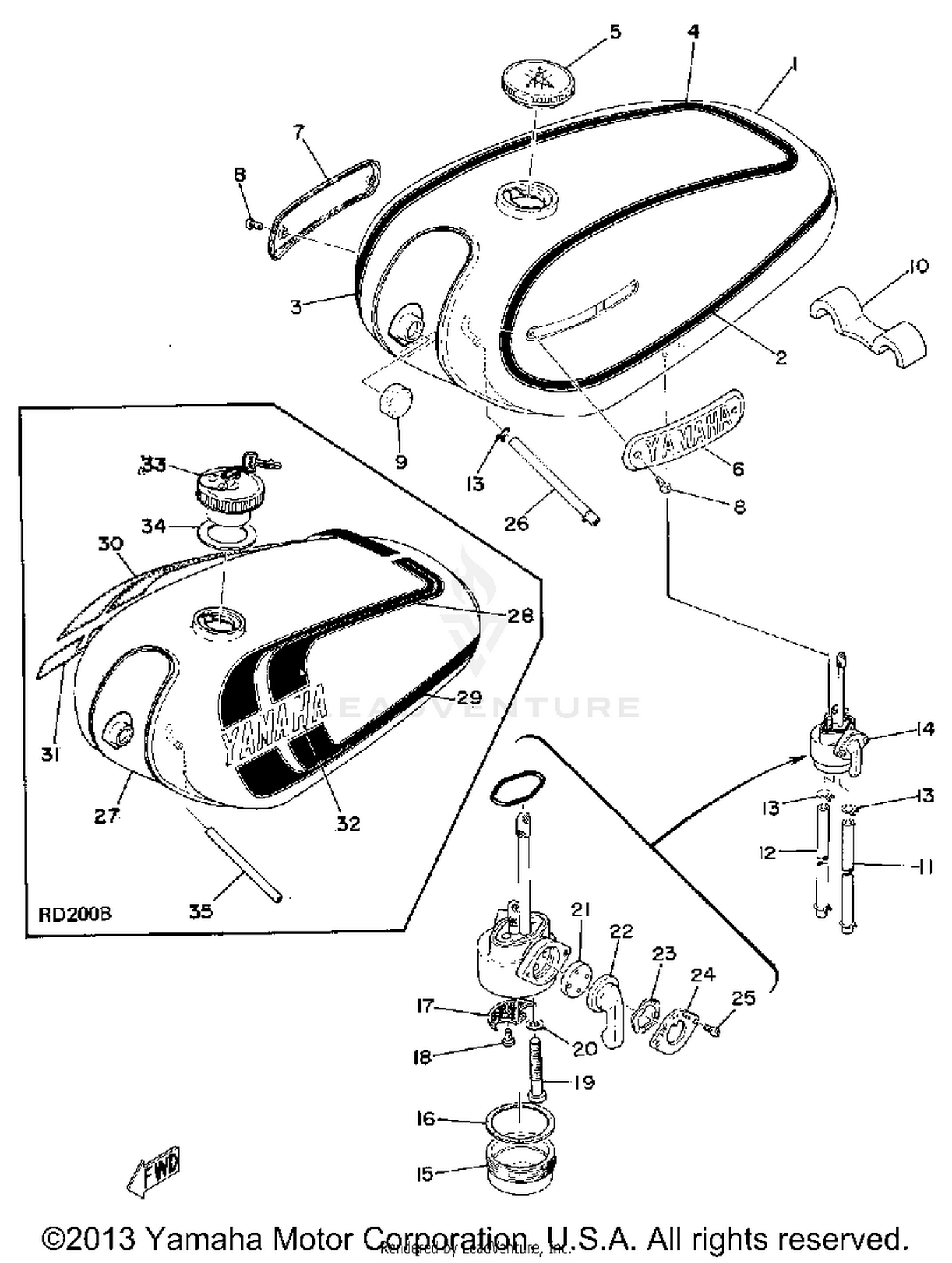

1974 Yamaha RD200 FUEL TANK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
398-24110-11-75
|
$241.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
397-24244-11-00
|
$7.88 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 2
397-24245-11-00
|
$13.78 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 3
397-24246-11-00
|
$13.78 | ||
|
Unavailable |
|||
|
#5
CAP ASSEMBLY
122-24610-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
EMBLEM 1
337-24161-10-00
|
$17.99 | ||
|
Unavailable |
|||
|
#7
EMBLEM 2
337-24162-10-00
|
$17.99 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98580-04008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, LOCATING 1
122-24181-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, LOCATING 2
307-24182-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#11
HOSE
90445-09091-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE 5
90445-09078-00
Superseded by 5RB-24315-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-08003-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUEL COCK ASSEMBLY 1
360-24500-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#15
CUP, FILTER
360-24521-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#16
GASKET
168-24522-00-00
|
$6.64 | ||
|
Unavailable |
|||
|
#17
NET, FILTER 2
168-24515-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98580-03008-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98580-06035-00
Superseded by 97885-06035-00
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
90430-06013-00
Superseded by 90430-06218-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
VALVE
132-24523-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#22
LEVER, COCK
168-24524-00-00
|
$7.32 | ||
|
Unavailable |
|||
|
#23
WASHER, WAVE
132-24518-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, LVR FITTING
132-24525-01-00
|
$3.30 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD
98580-03008-00
|
$3.05 | ||
|
Unavailable |
|||
|
#26
PIPE 5
90445-09083-00
Superseded by 5RB-24315-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#27
FUEL TANK
398-24110-11-W3
|
$245.99 | ||
|
Unavailable |
|||
|
#28
GRAPHIC, FUEL TNK 7
397-24254-20-00
|
$13.78 | ||
|
Unavailable |
|||
|
#29
GRAPHIC, FUEL TNK 9
397-24256-20-00
|
$12.99 | ||
|
Unavailable |
|||
|
#30
GRAPHIC, FUEL TNK 8
397-24255-20-00
|
$12.99 | ||
|
Unavailable |
|||
|
#31
GRPHC, FUEL TANK 10
397-24257-20-00
|
$14.42 | ||
|
Unavailable |
|||
|
#32
EMBLEM, YAMAHA
322-24161-00-00
Superseded by 99221-00140-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP ASY.
3FR-24602-00-00
Superseded by 3FU-24650-12-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET, CAP
498-24612-00-00
|
$10.32 | ||
|
Unavailable |
|||
|
#35
PIPE 5
90445-09083-00
Superseded by 5RB-24315-00-00
|
$6.99 | ||
|
Unavailable |
|||
