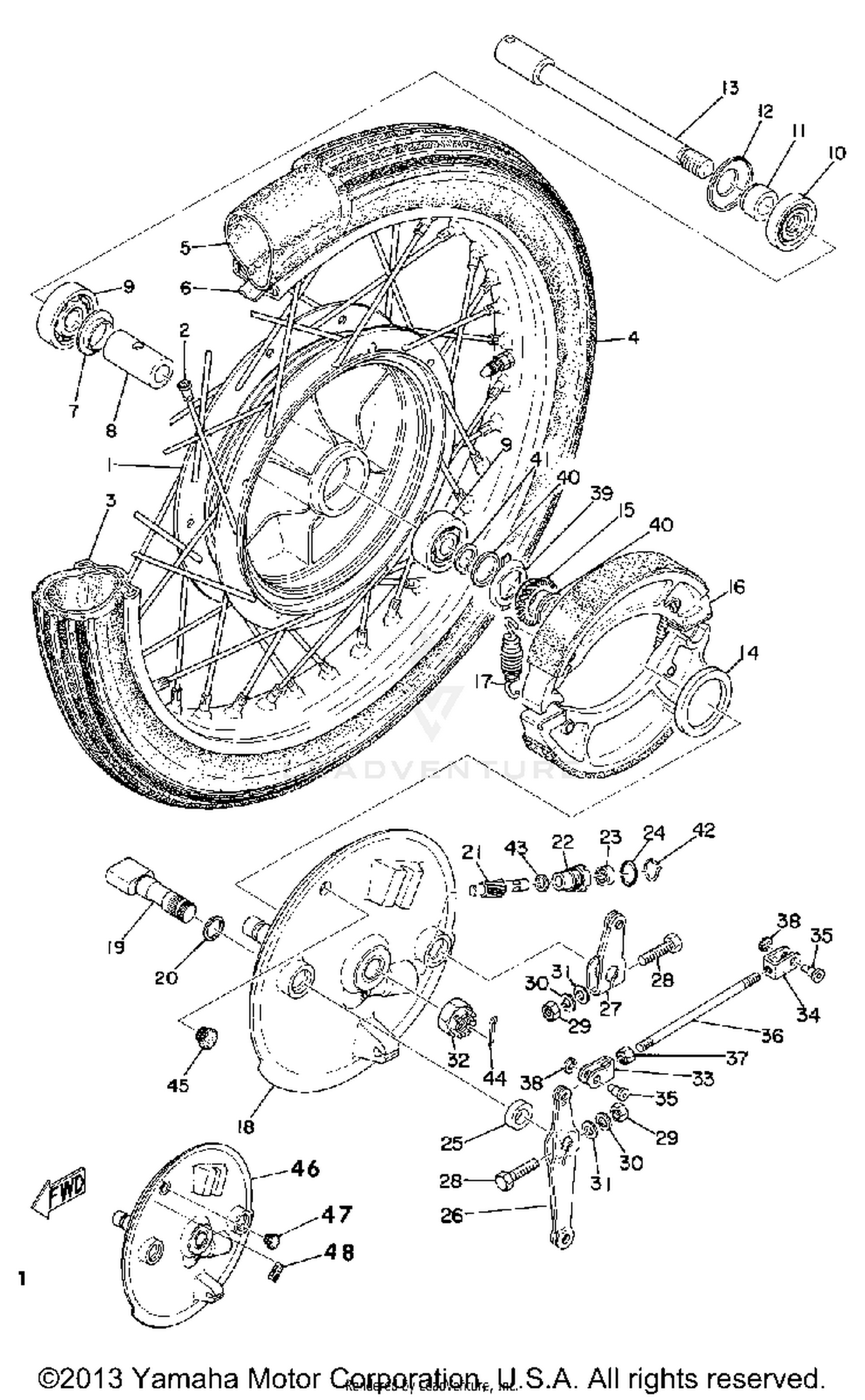

1974 Yamaha RD200 FRONT WHEEL OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
246-25111-00-38
|
$83.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
174-25104-00-00
|
$17.16 | ||
|
Unavailable |
|||
|
#3
RIM 1.60X18
94416-18013-00
|
$42.99 | ||
|
Unavailable |
|||
|
#4
275X18 YOKO Y506
94127-18309-00
|
$20.99 | ||
|
Unavailable |
|||
|
#5
TUBE
94227-18010-00
|
$9.99 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLANGE, SPACER
146-25115-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER (136-25317-00)
90560-15136-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93102-22014-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-15421-00
|
$2.80 | ||
|
Unavailable |
|||
|
#12
COVER, HUB DUST
246-25118-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#13
AXLE, WHEEL
246-25181-00-00
|
$15.48 | ||
|
Unavailable |
|||
|
#14
OIL SEAL, SDD-TYPE
93105-53013-00
|
$6.14 | ||
|
Unavailable |
|||
|
#15
GEAR, DRIVE
246-25135-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRAKESHOE SET-2PCS
168-W2535-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#17
SPRING, TENSION
90507-20002-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRAKE SHOE PLT ASSEMBLY
397-25120-10-00
|
$40.99 | ||
|
Unavailable |
|||
|
#19
CAMSHAFT
4R5-25151-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#20
SHIM, CAMSHAFT
148-25353-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, METER
214-25138-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BUSH
109-25136-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93104-07003-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, CAMSHAFT
148-25359-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
LEVER, CAMSHAFT 1
337-25155-00-00
|
$8.88 | ||
|
Unavailable |
|||
|
#27
LEVER, CAMSHAFT 2
337-25156-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#28
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, HEXAGON
95380-06600-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLAIN
92990-06200-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
END, ROD 1
152-25163-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#34
END, ROD 2
152-25164-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#35
PIN, SPEC''L SHAPE
90249-06095-00
|
$5.99 | ||
|
Unavailable |
|||
|
#36
ROD, CONNECTING
152-25161-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#37
NUT
95380-06700-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CIRCLIP
99080-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLUTCH, METER
246-25149-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#40
WASHER, PLATE
90201-22283-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
CIRCLIP
93410-22014-00
Superseded by 99009-22400-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
RING, STOP
102-25137-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLATE
90201-07076-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
GROMMET
90480-10068-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BRAKE SHOE PLT ASSEMBLY
397-25120-10-00
|
$40.99 | ||
|
Unavailable |
|||
|
#47
GROMMET
90480-10068-00
|
$6.99 | ||
|
Unavailable |
|||
|
#48
UNAVAILABLE IN PRICE BOOK
437-25134-10-00
|
|||
|
Unavailable |
|||
