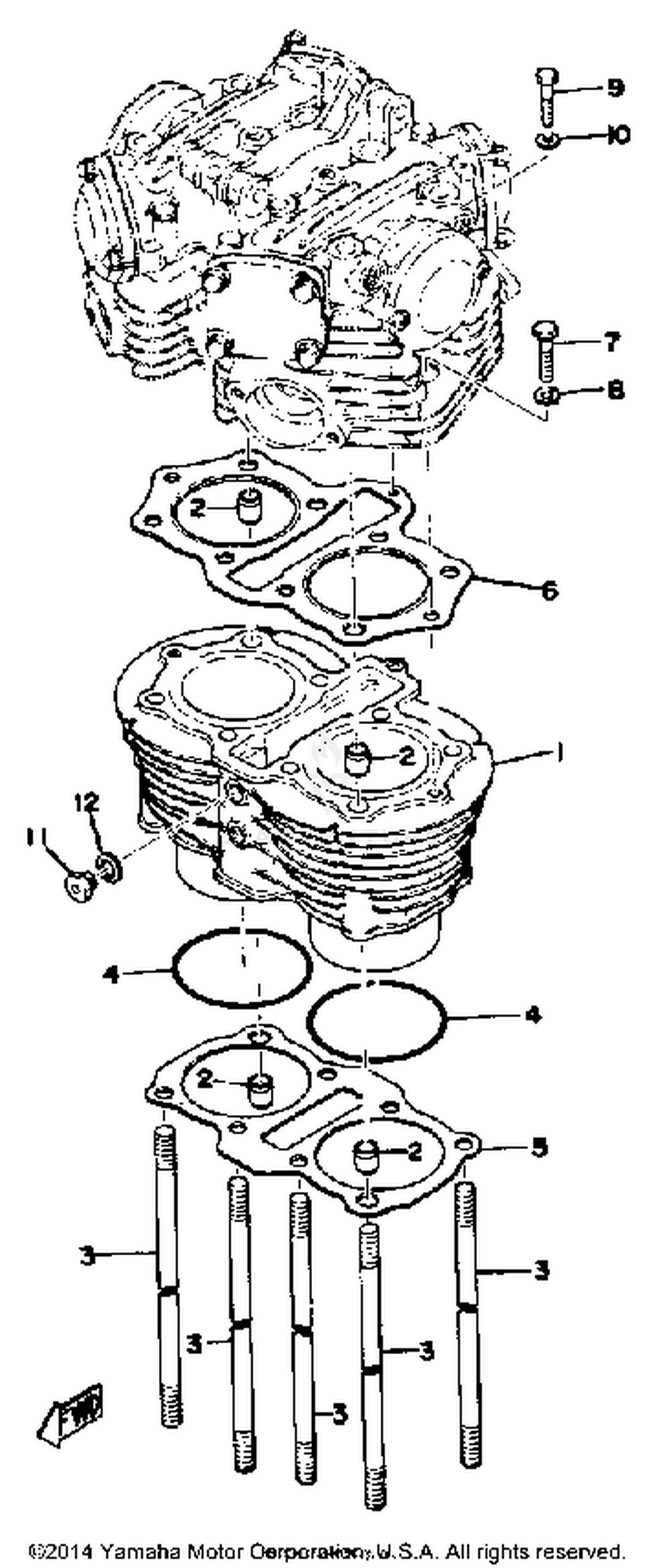

Cylinder Tx650a - Xs650b - C Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
306-11310-01-00
|
$416.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, STUD
90116-10108-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
O-RING
93210-81731-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER
256-11351-01-00
Superseded by 256-11351-11-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD 1
306-11181-09-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97313-08035-00
Superseded by 97013-08035-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON
97013-06035-00
Superseded by 97014-06035-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER
256-11395-02-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
GASKET
90430-11033-00
|
$6.49 | ||
|
Unavailable |
|||
