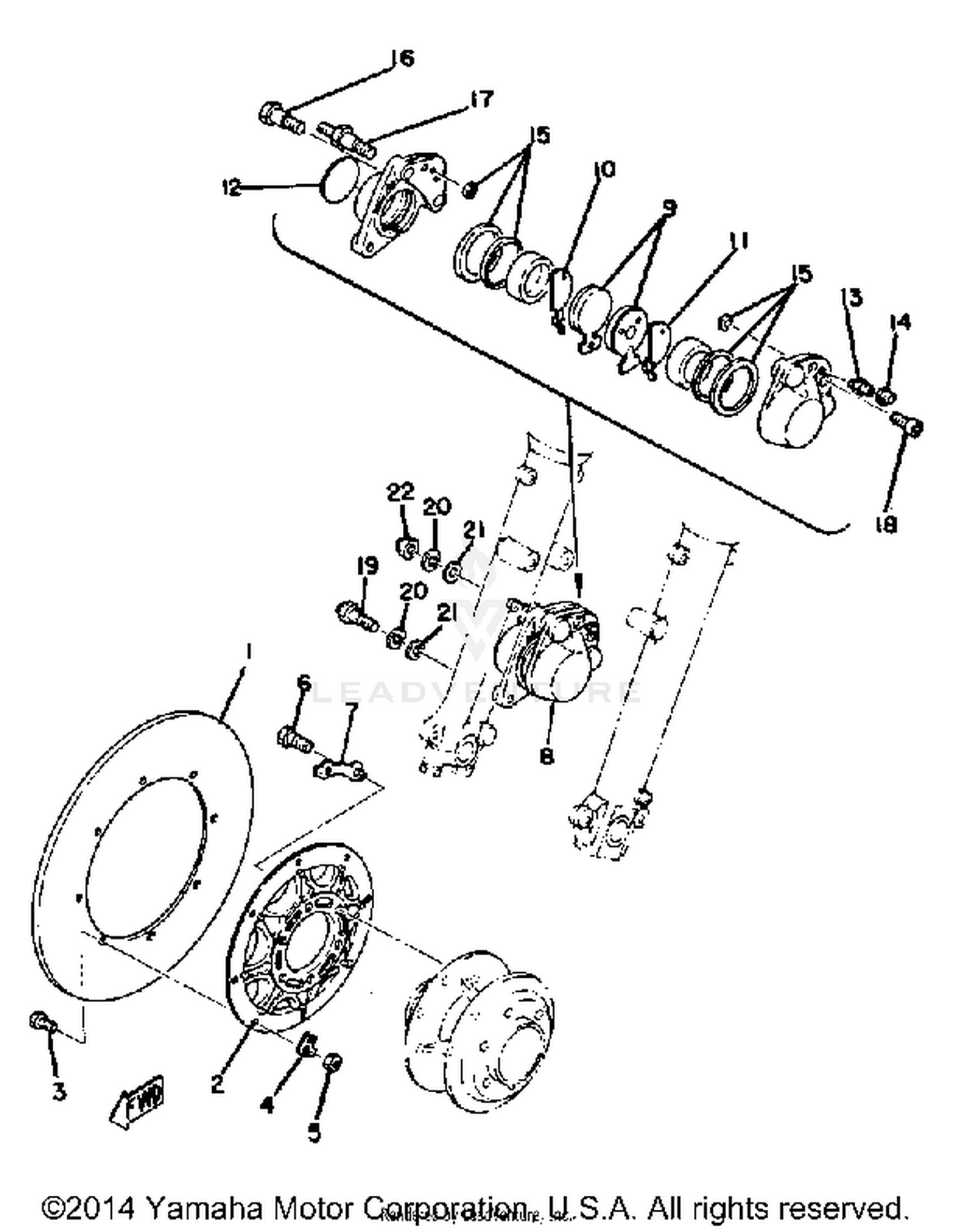

Front Brake-caliper Tx650a - Xs650b - C Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
306-25831-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, DISC
341-25832-01-00
|
$49.49 | ||
|
Unavailable |
|||
|
#3
BOLT
90109-06018-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, LOCK (306-25834-00)
90215-06106-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (341-25411-00)
90109-08367-00
|
$3.75 | ||
|
Unavailable |
|||
|
#7
WASHER
341-25412-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CALIPER ASSEMBLY (306-25810-09)
306-25810-0A-00
|
$362.99 | ||
|
Unavailable |
|||
|
#
CALIPER ASSEMBLY (C)
533-25810-12-00
|
$399.99 | ||
|
Unavailable |
|||
|
#9
BRAKE PAD KIT, FRNT
1A1-W0045-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#10
SHIM, CALIPER (306-25827-02)
306-25827-04-00
|
$7.99 | ||
|
Unavailable |
|||
|
#
SHIM, CALIPER
409-25827-50-00
|
$7.52 | ||
|
Unavailable |
|||
|
#11
SHIM, CALIPER (306-25828-02
409-25828-50-00
|
$8.49 | ||
|
Unavailable |
|||
|
#
SHIM, CALIPER
306-25828-04-00
|
$13.49 | ||
|
Unavailable |
|||
|
#12
EMBLEM, CALIPER
306-25829-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#13
SCREW, BLEED
306-25824-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#14
CAP
306-25825-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CALIPER SEAL KIT (856-20000-5
856-W0047-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT 1
306-25821-01-00
|
$14.84 | ||
|
Unavailable |
|||
|
#17
BOLT 2
306-25822-01-00
|
$19.72 | ||
|
Unavailable |
|||
|
#18
BOLT 3
306-25826-01-00
|
$7.06 | ||
|
Unavailable |
|||
|
#19
BOLT
90109-10041-00
|
$2.80 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95303-10800-00
Superseded by 95380-10800-00
|
$14.90 | ||
|
Available to order. Add to View Price |
|||
|
#
NUT, CROWN
90176-10013-00
Superseded by 90176-10073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
