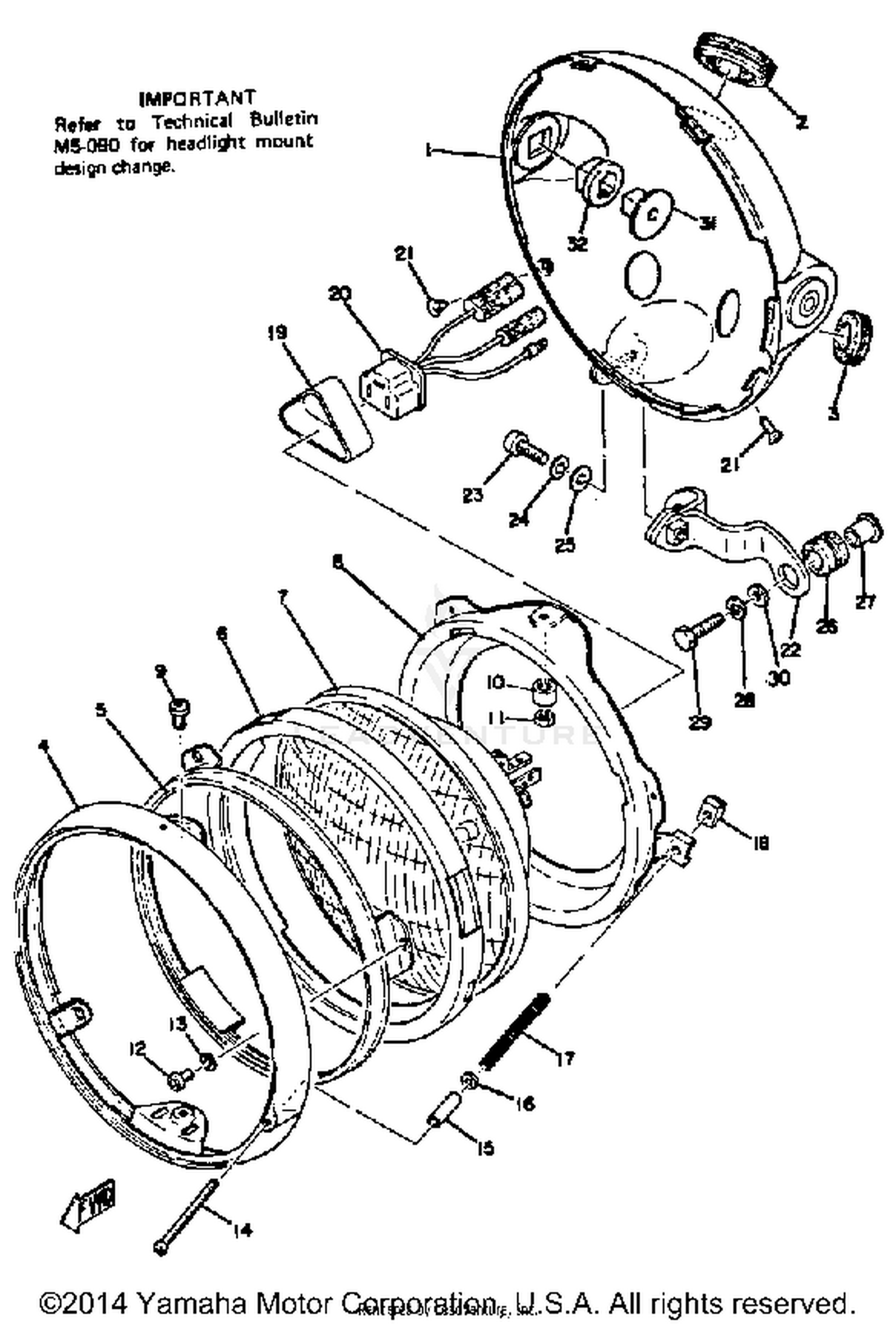

Headlight Tx650a - Xs650b Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSEMBLY
584-84330-61-93
|
$81.99 | ||
|
Unavailable |
|||
|
#
BODY ASSEMBLY
584-84330-62-N9
|
$41.99 | ||
|
Unavailable |
|||
|
#2
GROMMET, WIREHARNESS
214-84153-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET, WIRE HARNESS
150-84153-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RIM, HEADLIGHT
341-84315-40-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, RETAINING
447-84395-60-00
|
$77.99 | ||
|
Unavailable |
|||
|
#6
GASKET, LENS
447-84322-60-00
|
$21.99 | ||
|
Unavailable |
|||
|
#7
LENS ASSEMBLY
341-84320-60-00
|
$94.99 | ||
|
Unavailable |
|||
|
#8
RING, MOUNTING
447-84394-69-00
|
$62.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
447-84328-61-00
|
$3.57 | ||
|
Unavailable |
|||
|
#11
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, ADJUSTING
90157-04001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, SCREW
341-84333-60-00
|
$4.10 | ||
|
Unavailable |
|||
|
#16
WASHER
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, SCREW
341-84332-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, SOCKET
341-84397-61-00
|
$26.99 | ||
|
Unavailable |
|||
|
#20
SOCKET
371-84312-60-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, COUNTERSUNK
90152-05005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY, HEADLIGHT 1
447-84318-01-00
|
$6.86 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#29
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-06066-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR, BODY FTNG
214-84145-60-00
|
$21.99 | ||
|
Unavailable |
|||
|
#32
UNAVAILABLE IN PRICE BOOK
447-84345-00-00
|
|||
|
Unavailable |
|||
