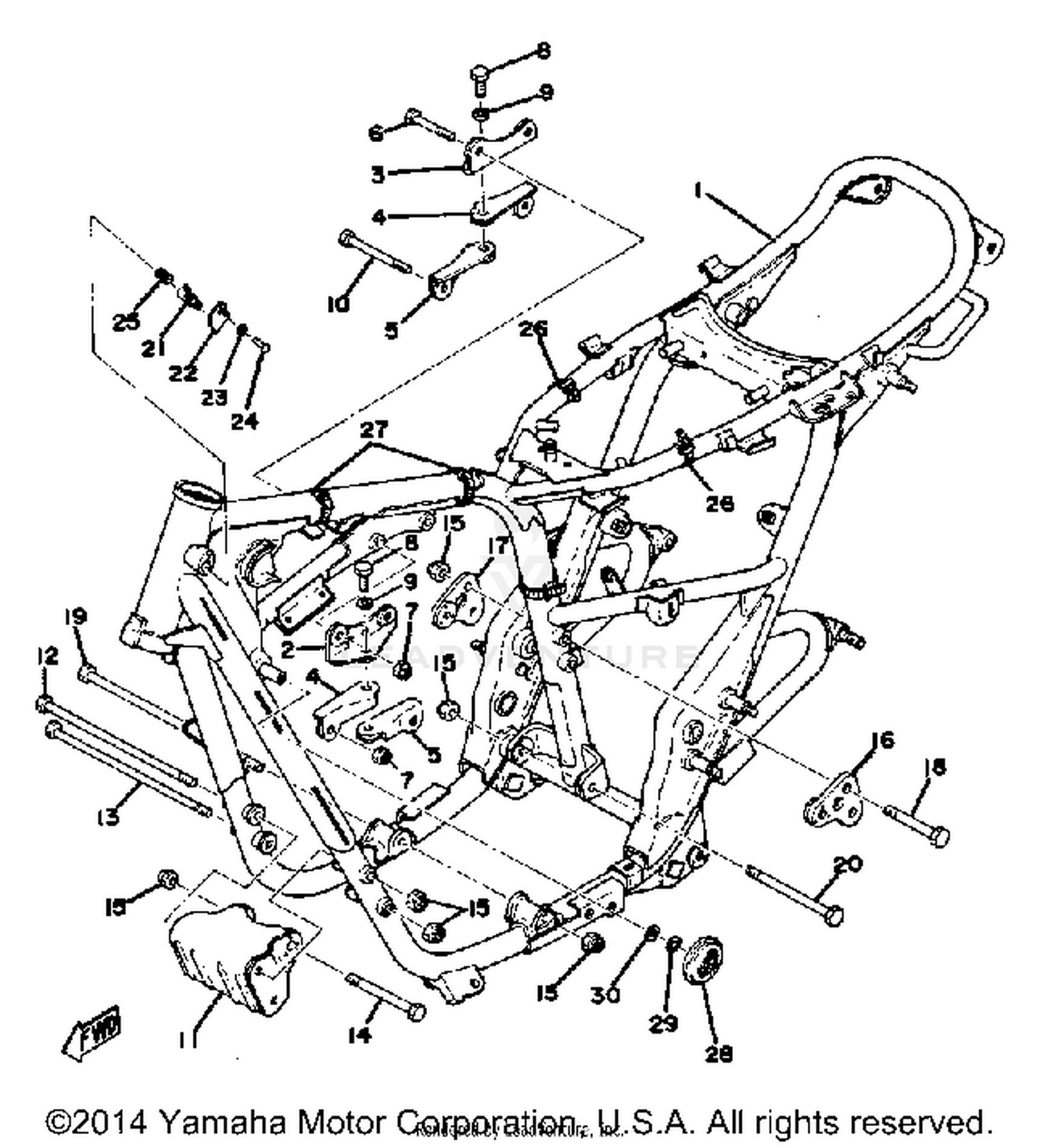

Frame Tx650a - Xs650b - C Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
584-21110-00-33
|
$497.99 | ||
|
Unavailable |
|||
|
#
FRAME
447-21110-04-33
|
$498.99 | ||
|
Unavailable |
|||
|
#2
STAY, ENGINE 1
447-21314-00-00
|
$11.84 | ||
|
Unavailable |
|||
|
#3
STAY, ENGINE 2
447-21315-00-00
|
$10.80 | ||
|
Unavailable |
|||
|
#4
STAY, ENGINE 4
256-21317-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#5
STAY, ENGINE 3
256-21316-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT (661)
97313-08055-00
Superseded by 97013-08055-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97011-10025-00
Superseded by 97017-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT, FLANGE
95811-10025-00
Superseded by 95817-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (97321-08090)
97023-08090-00
|
$3.40 | ||
|
Unavailable |
|||
|
#
BOLT, FLANGE
95811-08090-00
Superseded by 95817-08090-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, ENGINE 5
447-21318-00-98
|
$69.99 | ||
|
Unavailable |
|||
|
#12
BOLT, WASHER BASED
90105-10235-00
Superseded by 90105-10139-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-10044-00
Superseded by 90105-10N53-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-10039-00
Superseded by 90105-10747-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, ENGINE 6
447-21319-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#17
STAY, ENGINE 7
447-21387-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE
95811-10070-00
Superseded by 95817-10070-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, DOME HEAD
90106-10029-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
BOLT,WASHER BASED
90105-10119-00
Superseded by 90109-101A0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
STEERING LOCK ASSY
341-23408-01-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#
STEERING LOCK ASSY
2A6-23408-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, HANDLE LOCK
3DM-23484-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CAP, HANDLE LOCK
134-23484-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, WAVE
90206-04003-00
|
$8.49 | ||
|
Unavailable |
|||
|
#24
RIVET
90269-04003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, CONICAL
90502-09024-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SPRING, CONICAL
90502-08005-00
|
$5.99 | ||
|
Unavailable |
|||
|
#26
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BAND, SWITCH CORD
25G-83936-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
BAND, SWITCH CORD
25G-83936-01-00
|
$4.60 | ||
|
Unavailable |
|||
|
#
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
REFLECTOR, FRONT 1
355-85111-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
