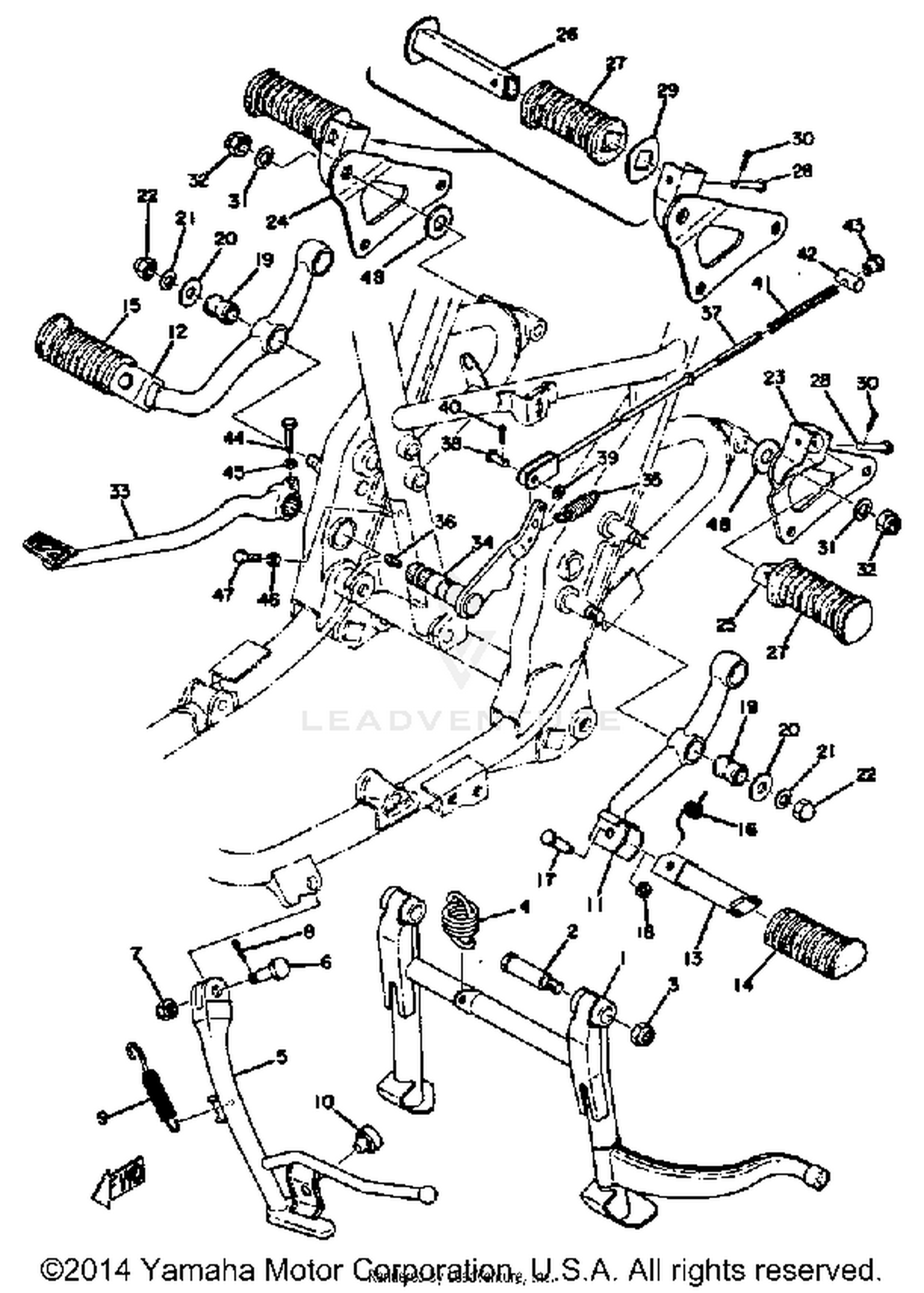

Stand Footrest Brake Pedal Tx650a - Xs650b Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
1T3-27111-02-00
|
$101.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-10268-00
|
$7.99 | ||
|
Unavailable |
|||
|
#3
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-50064-00
|
$6.99 | ||
|
Unavailable |
|||
|
#5
STAND, SIDE
447-27311-06-00
|
$52.99 | ||
|
Unavailable |
|||
|
#
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT
90109-08034-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SIDE STAND 447-03
99999-01242-00
|
$54.99 | ||
|
Unavailable |
|||
|
#
STAND, SIDE
341-27311-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
90-50623-14-70
|
|||
|
Unavailable |
|||
|
#6
BOLT
90109-08185-00
|
$2.65 | ||
|
Unavailable |
|||
|
#7
NUT, SLOTTED
95301-08900-00
Superseded by 95307-08900-00
|
$2.10 | ||
|
Unavailable |
|||
|
#8
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90507-25003-00
Superseded by 90506-25047-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SPRING, TENSION
90507-29009-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STOPPER
341-27314-02-00
|
$21.99 | ||
|
Unavailable |
|||
|
#
STOPPER, MAIN STAND
371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
FRT FOOTREST ASSEMBLY L
1T3-27410-00-33
Superseded by 1T3-27410-00-93
|
$70.99 | ||
|
Unavailable |
|||
|
#12
FRT FOOTREST ASSEMBLY R
1T3-27420-00-93
|
$73.99 | ||
|
Unavailable |
|||
|
#13
FOOTREST
341-27451-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#14
COVER, FOOTREST
341-27423-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#15
COVER, FOOTREST
341-27413-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#16
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN
90243-08006-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-06042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, FOOTREST
256-27414-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-10437-00
Superseded by 90201-105R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CROWN
90176-10013-00
Superseded by 90176-10073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
RR FOOTREST ASSEMBLY 1
447-27430-01-00
|
$29.99 | ||
|
Unavailable |
|||
|
#24
RR FOOTREST ASSEMBLY 2
447-27440-01-00
|
$29.99 | ||
|
Unavailable |
|||
|
#25
FOOTREST, REAR 1
447-27431-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
FOOTREST, REAR 2
447-27441-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, RR FOOTREST
447-27433-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, CLEVIS
91701-06035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPEC'L SHAPE
90209-18070-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
UNAVAILABLE IN PRICE BOOK
90201-13501-00
|
|||
|
Unavailable |
|||
|
#32
NUT, SELF-LOCKING
90185-12046-00
Superseded by 90185-12134-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PEDAL, BRAKE
533-27211-01-93
|
$157.99 | ||
|
Unavailable |
|||
|
#34
SHAFT, BRAKE PEDAL
447-27212-01-00
|
$25.04 | ||
|
Unavailable |
|||
|
#35
SPRING, TENSION
90506-23046-00
Superseded by 90506-20380-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#37
ROD, BRAKE
447-27231-02-00
|
$14.49 | ||
|
Unavailable |
|||
|
#38
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#41
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
UNAVAILABLE IN PRICE BOOK (156-
90259-12008-00
|
|||
|
Unavailable |
|||
|
#43
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT
90170-06184-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
SCREW, HEXAGON
90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER, PLATE
90201-13502-00
Superseded by 90201-13645-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
