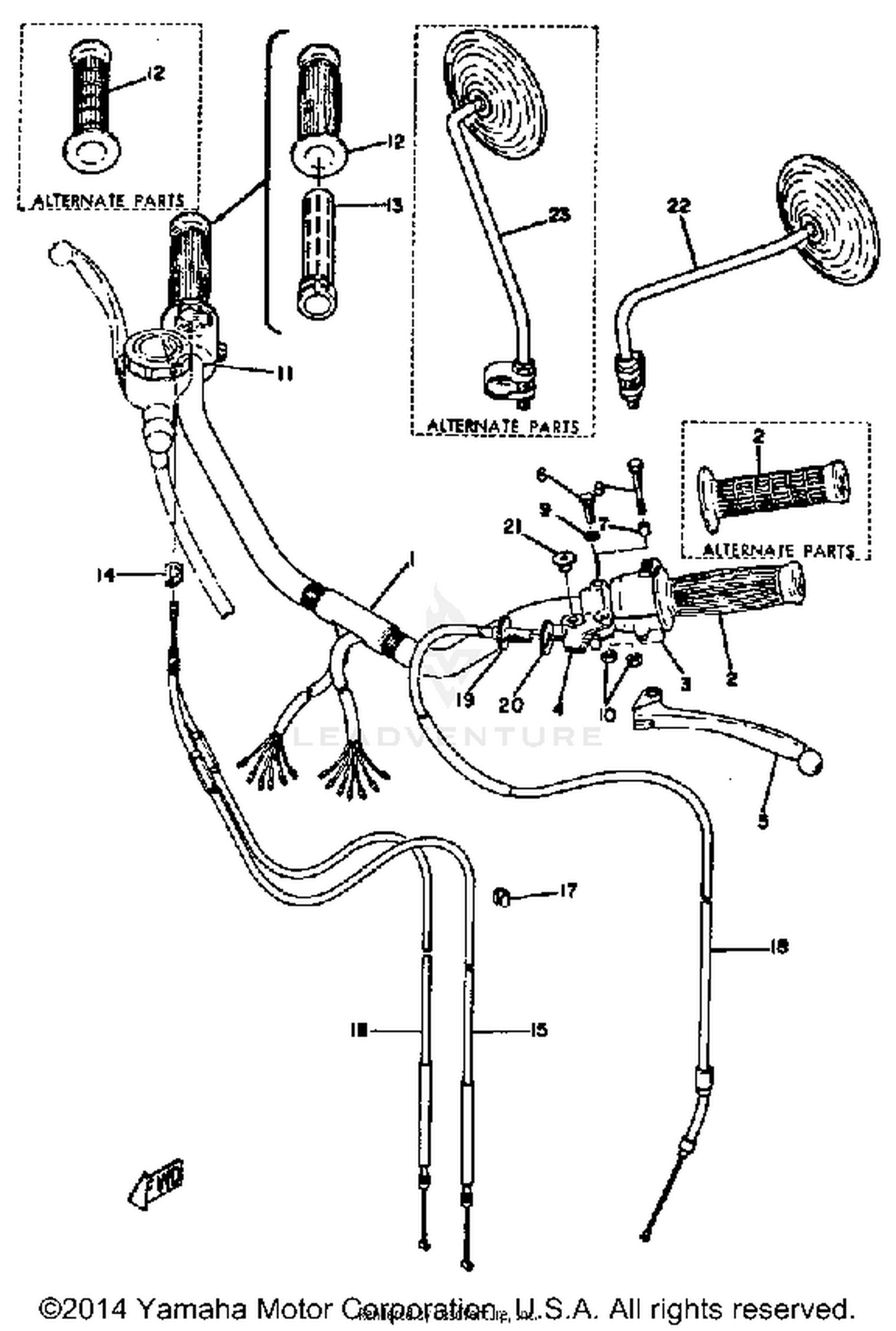

Steering Handle Cable Tx650a - Xs650b Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
447-26111-00-00
|
$72.94 | ||
|
Unavailable |
|||
|
#
LEVER HOLDER ASSEMBLY 1
447-82910-00-00
|
$32.12 | ||
|
Unavailable |
|||
|
#2
GRIP LH
341-26241-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#3
SWITCH, HANDLE 3
371-83973-01-00
|
$93.99 | ||
|
Unavailable |
|||
|
#4
HOLDER, LEVER LEFT
341-82911-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEVER, LEFT
214-83912-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, LEVER 1
214-83913-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (306-83925-00)
90109-06103-00
|
$5.99 | ||
|
Unavailable |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH, HANDLE 3
447-83963-01-00
|
$108.99 | ||
|
Unavailable |
|||
|
#12
GRIP RH
341-26242-01-00
|
$14.49 | ||
|
Unavailable |
|||
|
#
GRIP RH
306-26242-10-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#
GRIP RH
306-26242-00-00
|
$10.40 | ||
|
Unavailable |
|||
|
#13
TUBE, THRTL GUIDE
256-26243-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#14
HOLDER
341-26393-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#15
CABLE, THROTTLE 1
447-26311-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#16
CABLE, THROTTLE 2
447-26312-00-00
|
$22.03 | ||
|
Unavailable |
|||
|
#17
CLIP
90468-15009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE, CLUTCH (256-26335-02)
447-26335-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
MIRROR ASSEMBLY LH
256-26290-10-00
|
$31.61 | ||
|
Unavailable |
|||
|
#23
MIRROR ASSEMBLY RH
256-26290-00-00
|
$31.61 | ||
|
Unavailable |
|||
