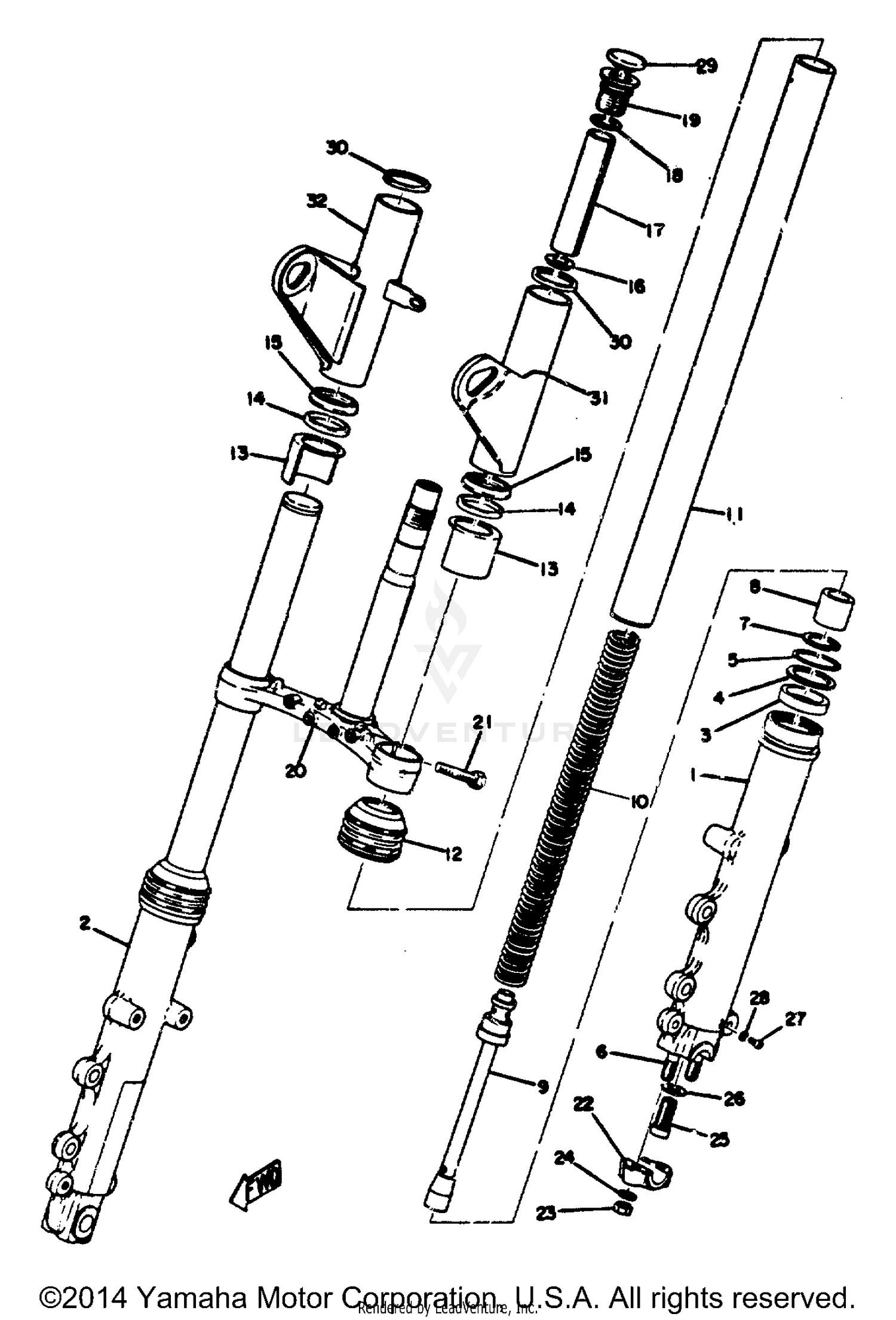

Front Fork Tx650a - Xs650b Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
447-23101-53-00
|
$369.99 | ||
|
Unavailable |
|||
|
#
TUBE, OUTER 1
366-23126-60-00
|
$139.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
366-23136-60-00
|
$139.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
278-23145-51-00
Superseded by 584-23145-50-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#5
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#
CLIP, OIL SEAL
371-23156-60-00
|
$3.76 | ||
|
Unavailable |
|||
|
#6
BOLT, STUD
90116-08261-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP, INNER
93450-30033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#8
PISTON, FRONT FORK
371-23171-60-00
|
$8.06 | ||
|
Unavailable |
|||
|
#
PISTON, FRONT FORK
278-23171-50-00
|
$9.28 | ||
|
Unavailable |
|||
|
#9
CYLINDER, FRTFRK
447-23170-52-00
|
$58.99 | ||
|
Unavailable |
|||
|
#10
SPRING, FRONT FORK
447-23141-52-00
|
$41.99 | ||
|
Unavailable |
|||
|
#11
TUBE, INNER 1
371-23124-62-00
|
$96.49 | ||
|
Unavailable |
|||
|
#
TUBE, INNER 1
533-23124-31-00
|
$118.99 | ||
|
Unavailable |
|||
|
#12
SEAL, DUST
278-23144-50-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, OUTER 1
447-23122-52-00
|
$11.46 | ||
|
Unavailable |
|||
|
#14
GASKET (LAMP STAY)
291-23163-61-00
|
$7.99 | ||
|
Unavailable |
|||
|
#15
GUIDE, COVER LOWER
447-23116-52-00
|
$24.99 | ||
|
Unavailable |
|||
|
#16
SEAT, SPRING UPPER
304-23142-50-00
|
$4.60 | ||
|
Unavailable |
|||
|
#
SEAT, SPRING UPPER
256-23142-60-00
|
$21.99 | ||
|
Unavailable |
|||
|
#17
SPACER
306-23118-60-00
|
$3.76 | ||
|
Unavailable |
|||
|
#18
GASKET
214-23114-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#19
BOLT, CAP
341-23111-51-00
|
$36.99 | ||
|
Unavailable |
|||
|
#20
UNDER BRACKET
447-23340-53-33
|
$127.99 | ||
|
Unavailable |
|||
|
#21
BOLT, WITH WASHER
18G-23128-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER, AXLE
341-23167-50-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, OUTER TUBE
447-23127-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CAP, FRONT FORK
371-23168-60-00
|
$8.49 | ||
|
Unavailable |
|||
|
#30
GUIDE, COVER UPPER
168-23115-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#31
COVER, UPPER 1
447-23121-51-R7
|
$68.99 | ||
|
Unavailable |
|||
|
#
COVER, UPPER 1
447-23121-51-N9
|
$68.99 | ||
|
Unavailable |
|||
|
#32
COVER, UPPER 2
447-23131-51-N9
|
$68.99 | ||
|
Unavailable |
|||
|
#
COVER, UPPER 2
447-23131-51-R7
|
$68.99 | ||
|
Unavailable |
|||
