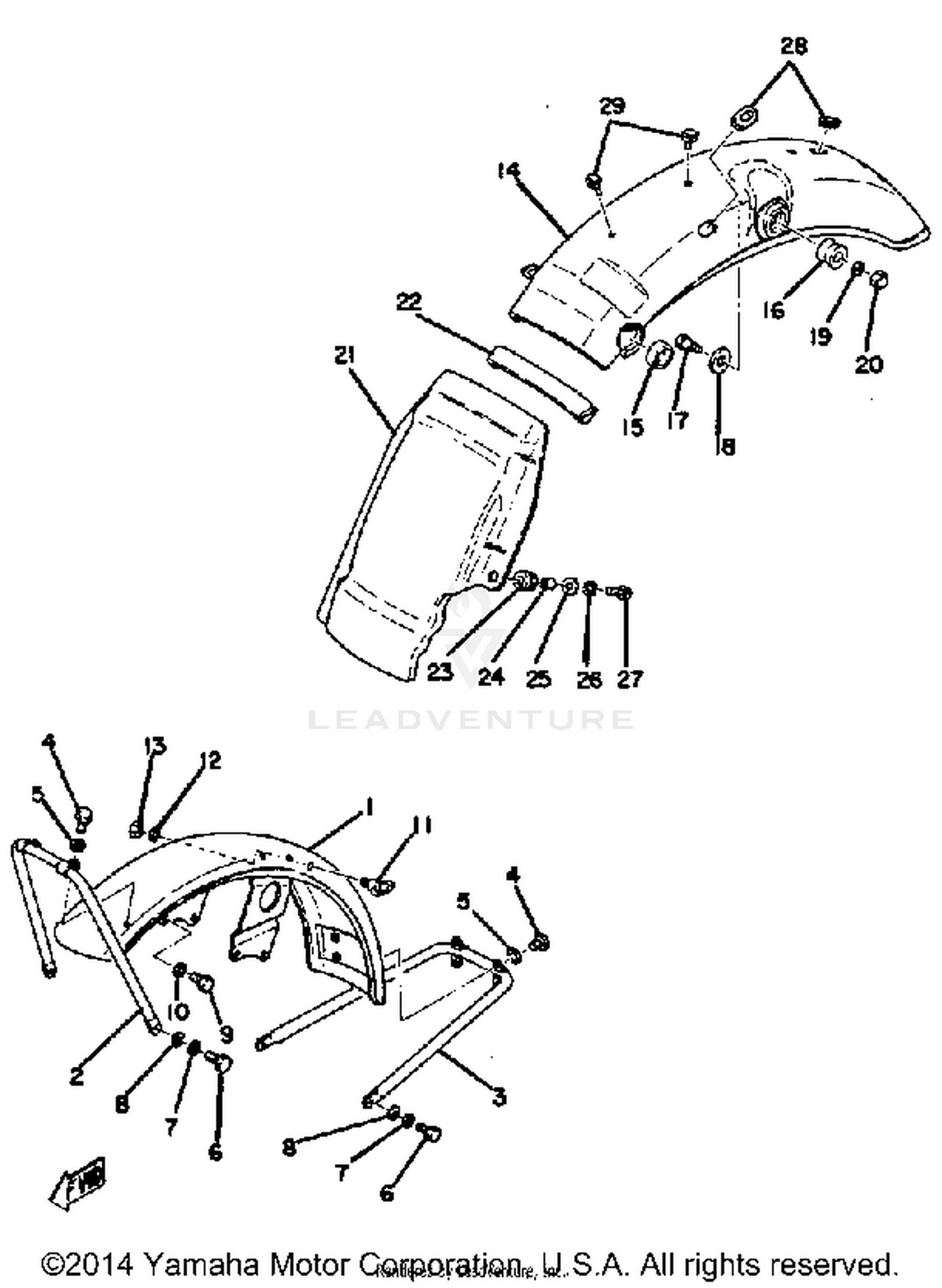

Front Fender Rear Fender Tx650a - Xs650b - C Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT (341-21511-01-93)
447-21511-00-93
|
$114.99 | ||
|
Unavailable |
|||
|
#2
STAY, FENDER 1
341-21513-01-00
|
$29.99 | ||
|
Unavailable |
|||
|
#3
STAY, FENDER 2
341-21514-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#4
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEX
97313-06018-00
Superseded by 97013-06018-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#8
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, CABLE
174-21518-00-00
|
$3.20 | ||
|
Unavailable |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#13
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
FENDER, REAR
447-21610-02-93
|
$173.99 | ||
|
Unavailable |
|||
|
#15
DAMPER, LOCATING 1
122-24181-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
DAMPER, LOCATING 1
447-21638-00-00
Superseded by 122-24181-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
DAMPER 2
168-21639-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-15239-00
|
$6.49 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90109-10349-00
|
$5.63 | ||
|
Unavailable |
|||
|
#
BOLT (8J7)
97013-10030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CROWN
90176-10013-00
Superseded by 90176-10073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
NUT, SPEC''L SHAPE
90179-10123-00
|
$5.99 | ||
|
Unavailable |
|||
|
#21
GUARD, MUD
447-21629-01-00
|
$21.78 | ||
|
Unavailable |
|||
|
#22
SEAL
447-21268-01-00
|
$15.99 | ||
|
Unavailable |
|||
|
#23
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
GROMMET
90480-15061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90464-04014-00
|
$1.65 | ||
|
Unavailable |
|||
