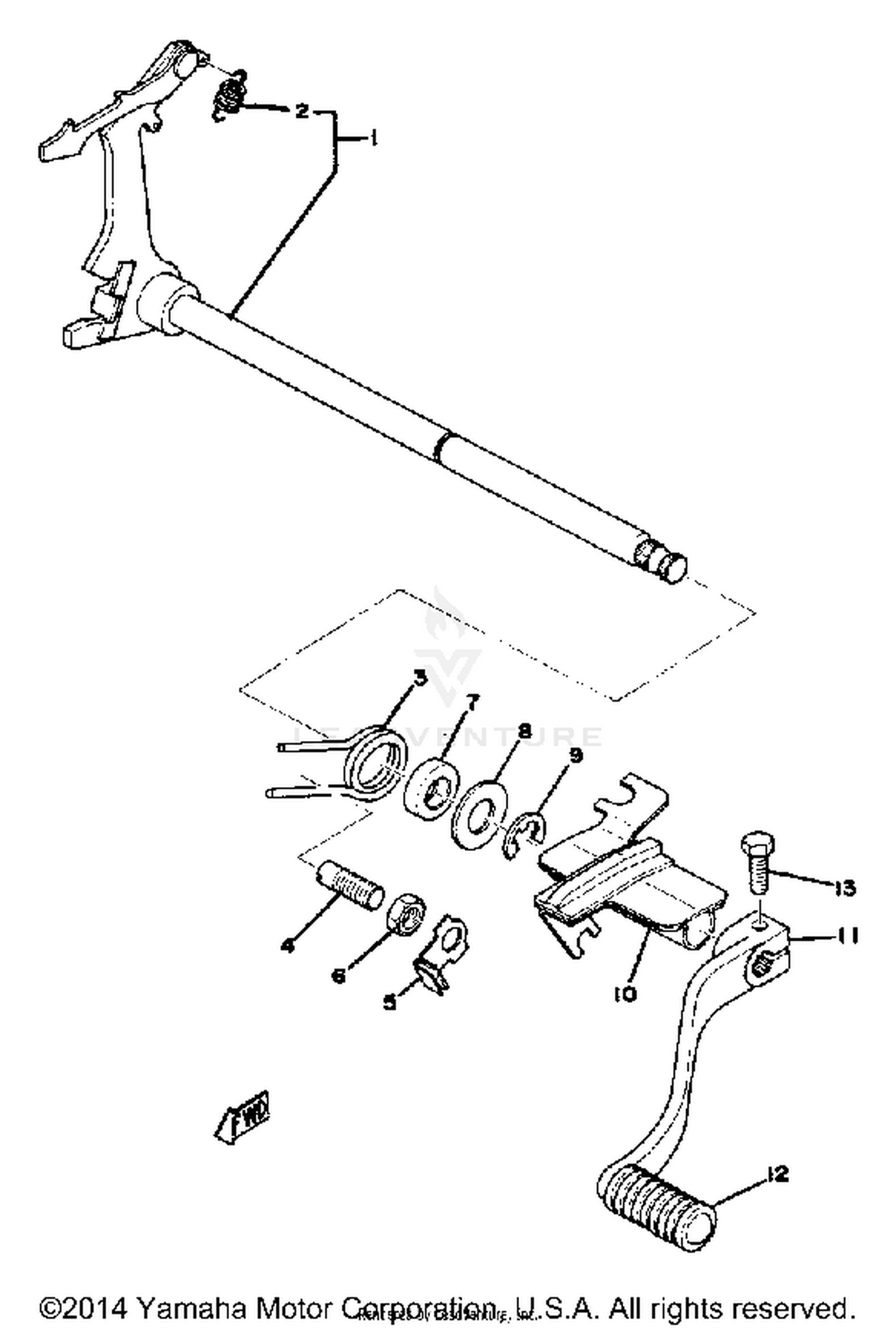

Shift Shaft Tx650a - Xs650b - C Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT SHAFT ASSEMBLY. 1
256-18101-03-00
|
$197.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90506-08007-00
|
$3.40 | ||
|
Unavailable |
|||
|
#3
SPRING, TORSION
90508-32559-00
|
$2.70 | ||
|
Unavailable |
|||
|
#4
SCREW, SPEC''L SHAPE
90149-10018-00
|
$1.75 | ||
|
Unavailable |
|||
|
#5
WASHER, LOCK
90215-10105-00
|
$3.95 | ||
|
Unavailable |
|||
|
#6
NUT, HEXAGON
90170-10038-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93109-14010-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-14220-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
99001-12600-00
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, CHAIN 1
447-17467-02-00
|
$44.99 | ||
|
Unavailable |
|||
|
#11
PEDAL, SHIFT
2J2-18111-01-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, SHIFT PEDAL
132-18113-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
