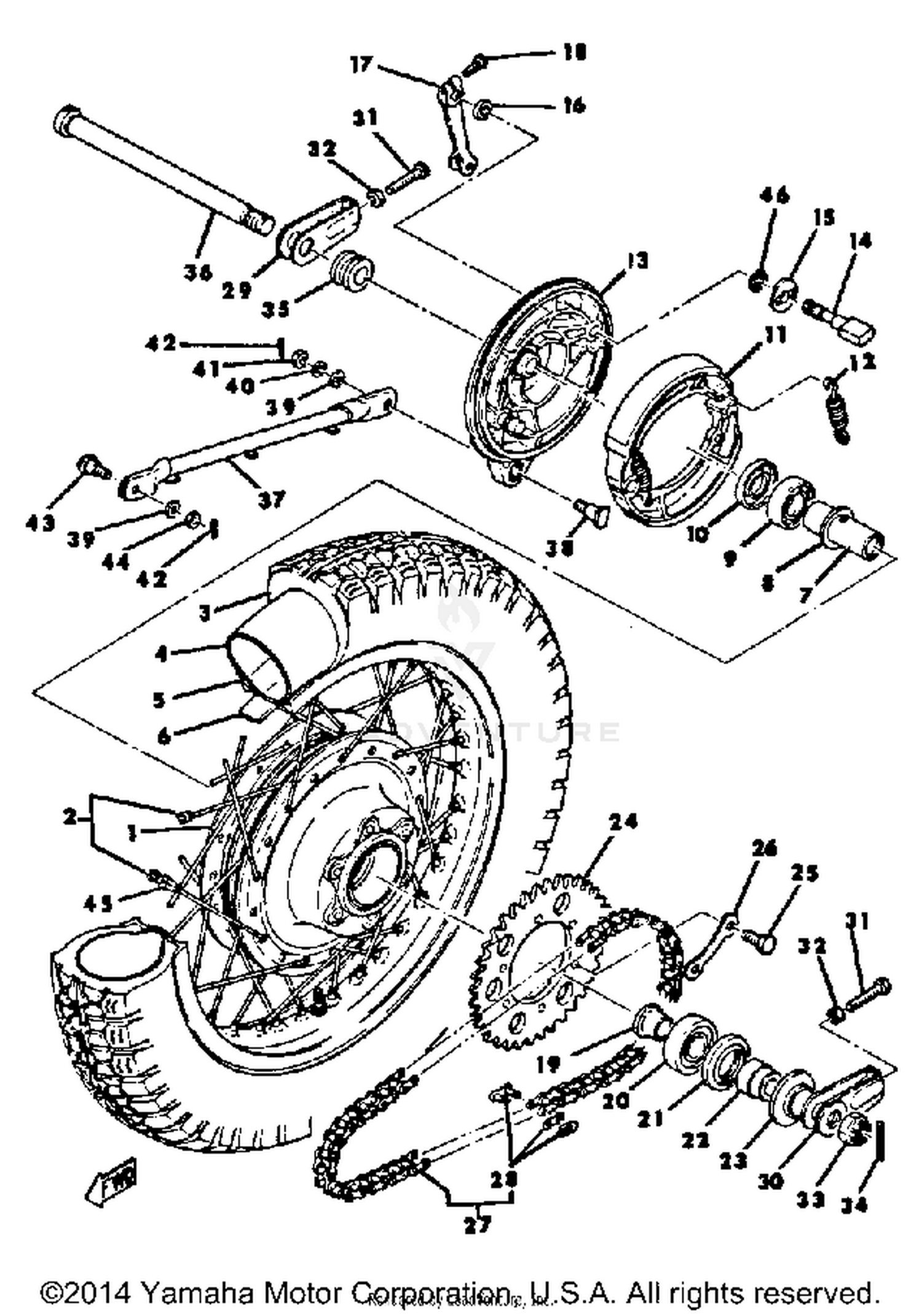

Rear Wheel Tx650a - Xs650b - C Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
256-25311-00-00
|
$119.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
256-25304-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#
SPOKE SET, REAR (A/B)
256-25304-01-00
|
$142.99 | ||
|
Unavailable |
|||
|
#3
TIRE 400H18 Y987 YOKO
94140-18340-00
|
$57.99 | ||
|
Unavailable |
|||
|
#4
TUBE (110-140/80-100-18 M/C)
94237-18120-00
Superseded by 94212-18188-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM 2.15X18
94421-18146-00
|
$155.99 | ||
|
Unavailable |
|||
|
#
RIM 2.15X18
94421-18106-00
|
$140.99 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (2.50-18)
94340-18022-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
90560-20135-00
|
$11.99 | ||
|
Unavailable |
|||
|
#8
FLANGE, SPACER
4V4-25315-00-00
|
$3.10 | ||
|
Unavailable |
|||
|
#9
BEARING
93306-30417-00
Superseded by 93306-30437-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL, SO-TYPE
93104-27026-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE SHOE KIT
4L0-W2536-00-00
Superseded by 5R3-W253E-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, BRAKE SHOE
447-25321-00-00
|
$66.62 | ||
|
Unavailable |
|||
|
#14
CAMSHAFT
341-25351-00-00
|
$24.39 | ||
|
Unavailable |
|||
|
#15
SHIM, CAMSHAFT
447-25353-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#16
SEAL, CAMSHAFT
148-25359-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, CAMSHAFT
341-25355-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#18
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-20166-00
|
$19.99 | ||
|
Unavailable |
|||
|
#20
BRG,R-B 6305ZZ 62MM
93306-30507-00
Superseded by 93306-305U0-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL, SD-TYPE
93102-35065-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-20176-00
|
$8.49 | ||
|
Unavailable |
|||
|
#23
COVER, HUB DUST
256-25367-00-00
|
$7.78 | ||
|
Unavailable |
|||
|
#24
SPROCKET, DRIVN 36T (36T)
256-25436-20-33
|
$68.99 | ||
|
Unavailable |
|||
|
#
SPROCKET,DRIVN 34T
256-25434-20-33
Superseded by 256-25434-20-00
|
$60.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 32T (32T)
256-25432-20-33
|
$57.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 33T
256-25433-20-33
|
$36.01 | ||
|
Unavailable |
|||
|
#25
BOLT
90105-10007-00
Superseded by 90101-10303-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
256-25412-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CHAIN 50HDS-104L
94580-05104-00
|
$110.99 | ||
|
Unavailable |
|||
|
#28
CHAIN JOINT
94680-05011-00
|
$3.60 | ||
|
Unavailable |
|||
|
#29
PULLER, CHAIN 2
341-25389-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#30
PULLER, CHAIN 1
341-25388-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#31
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, HEXAGON
90170-08158-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, CASTLE
90171-18043-00
|
$21.99 | ||
|
Unavailable |
|||
|
#34
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR
90387-20444-00
|
$8.49 | ||
|
Unavailable |
|||
|
#36
AXLE, WHEEL
341-25381-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#37
BAR, TENSION (341-25371-00)
1T3-25371-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#38
BOLT
90109-08338-00
|
$4.20 | ||
|
Unavailable |
|||
|
#39
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, HEXAGON
90170-08158-00
|
$2.20 | ||
|
Unavailable |
|||
|
#42
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT
90109-08374-00
|
$5.49 | ||
|
Unavailable |
|||
|
#44
NUT, SPECIAL SHAPE (30)
90179-08639-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BALANCER, WHEEL (15G)
156-25398-00-00
Superseded by 3HT-25398-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, WAVE (648-42188-00)
90206-14020-00
|
$3.90 | ||
|
Unavailable |
|||
