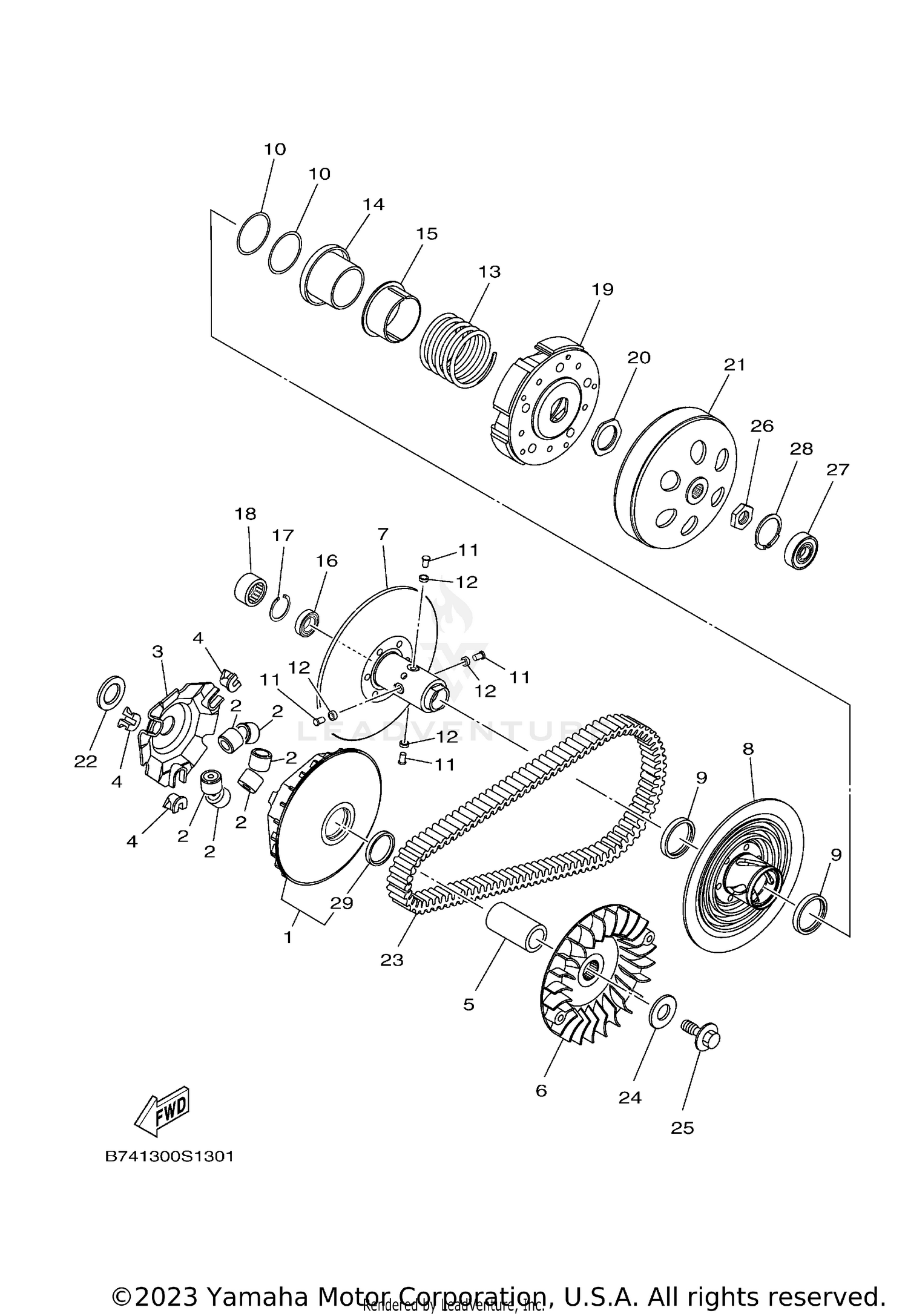

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY SLIDING SHEAVE COMP.
B74-E7620-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WEIGHT
B74-E7632-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAM
B74-E7623-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SLIDER
B74-E7653-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, GUIDE
B74-E7674-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHEAVE, PRIMARY FIXED
B74-E7611-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SECONDARY FIXED SHEAVE COMP.
B74-E7660-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SECONDARY SLIDING SHEAVE
B74-E7670-00-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL
B74-E7465-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL
B74-E7465-10-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, GUIDE
B74-E7664-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, GUIDE
B74-E7674-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, SECONDARY
B74-E7683-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT, SECONDARY SPRING
B74-E7684-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAT,SPRING
B74-E7644-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
B74-E7678-01-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
B74-E5744-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
B74-E7678-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLUTCH CARRIER ASSY
B74-E6620-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
B74-E7668-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLUTCH HOUSING COMP.
B74-E6611-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-23015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
V-BELT
B74-E7641-00-00
Superseded by B5X-E7641-00-00
|
$96.99 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-19014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-12807-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90170-14802-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
JOURNAL
B74-E7412-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP
99009-40700-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
SEAL
B74-E7465-20-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
