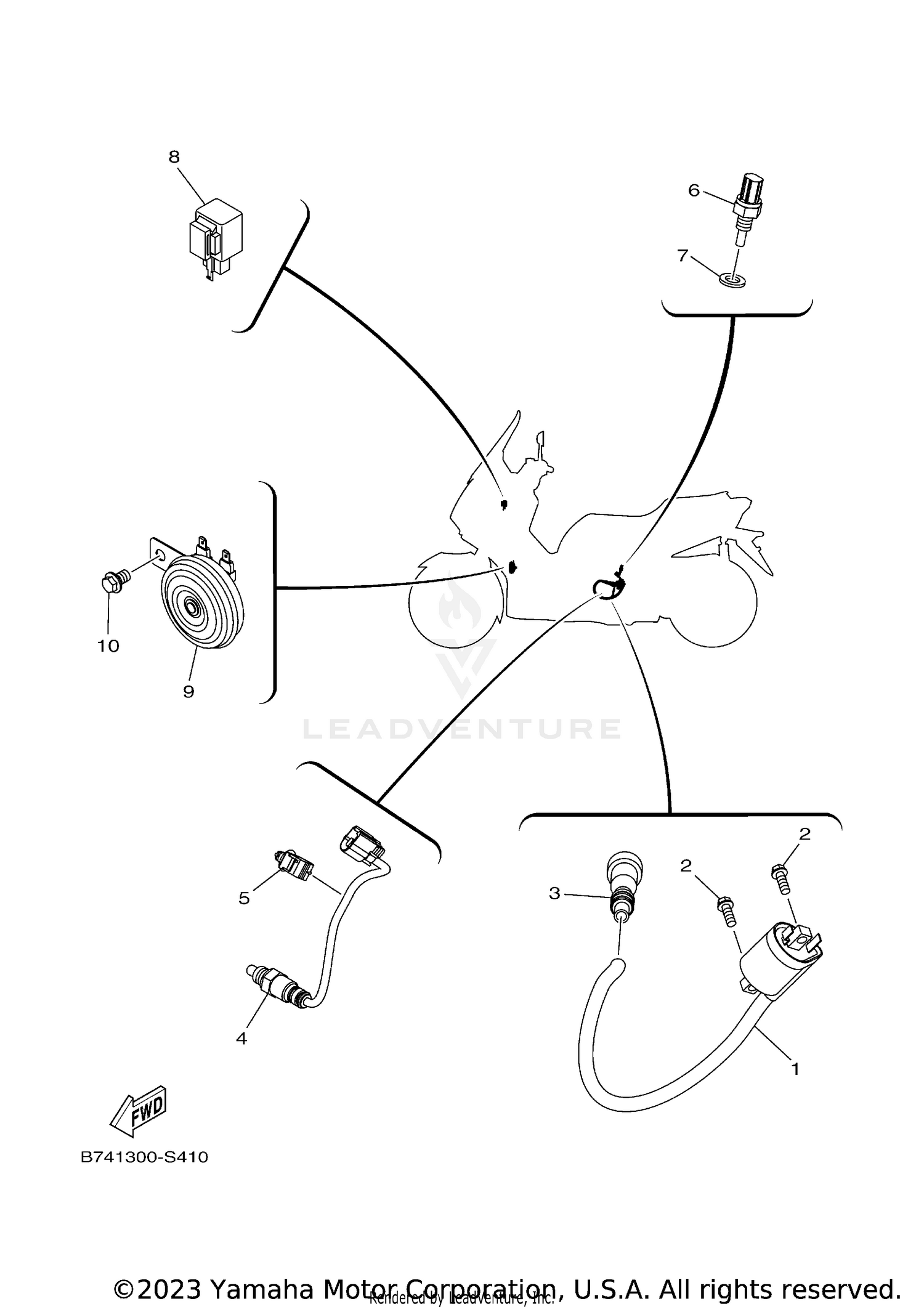

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSY
B74-H2310-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG CAP ASSY
B74-H2370-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SENSOR, OXYGEN
B74-H592A-10-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
90464-12018-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
THERMO UNIT
54P-H3591-00-00
Superseded by 52B-H3591-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-10804-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLASHER RELAY ASSY
4MY-83350-01-00
Superseded by 4MY-83350-03-00
|
$49.99 | ||
|
Unavailable |
|||
|
#9
HORN
1WD-H3371-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95022-08012-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
