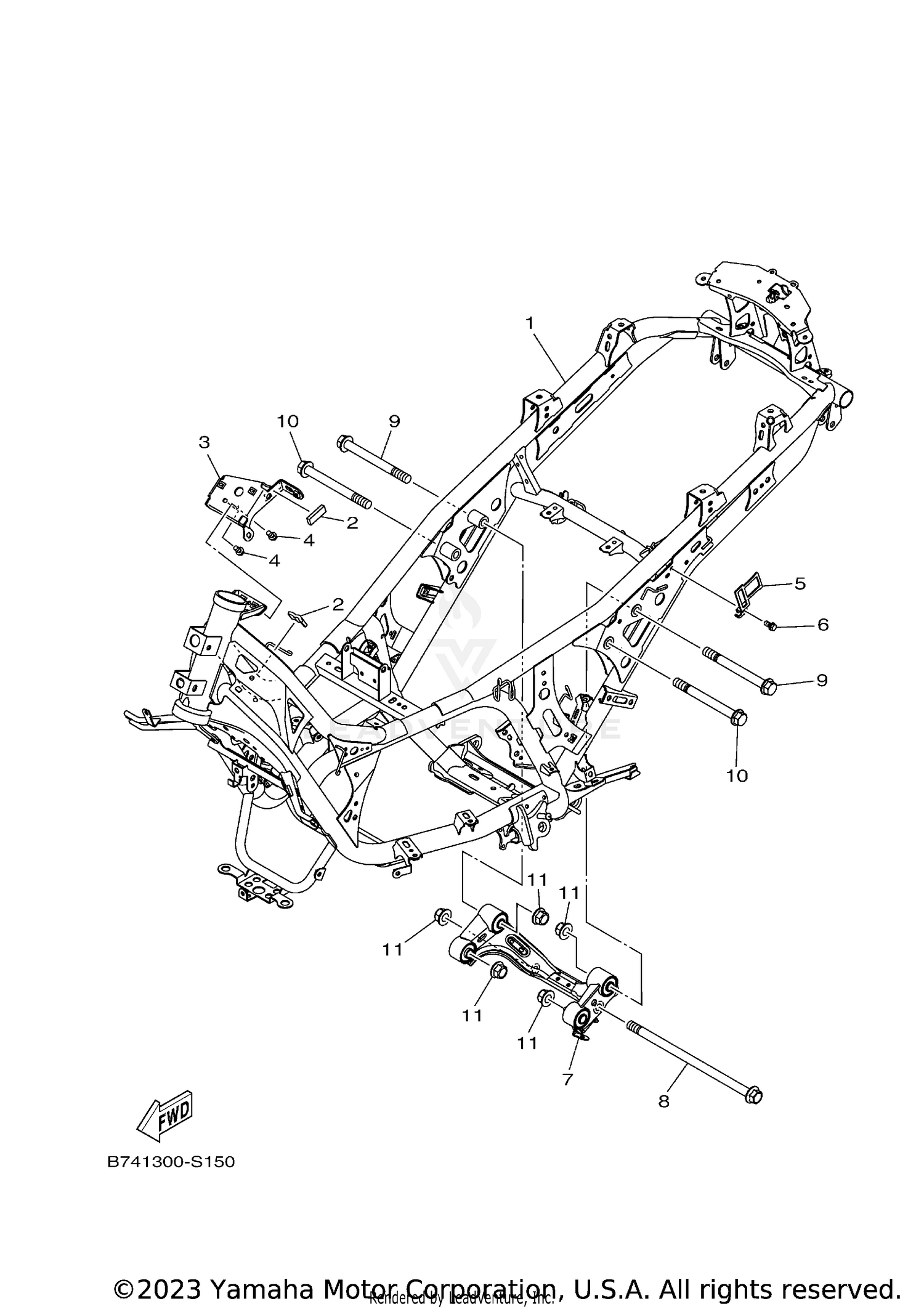

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
B74-F1110-20-00
Superseded by B74-F1110-21-00
|
$560.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, PLATE
90520-04015-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, MAIN SWITCH
B74-H251P-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95022-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET 5
B74-F149S-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95022-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#7
ENGINE BRACKET COMP.
B74-F1400-01-00
Superseded by B74-F1400-02-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, PIVOT
B74-F2141-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-12806-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-12805-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
95602-12200-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
