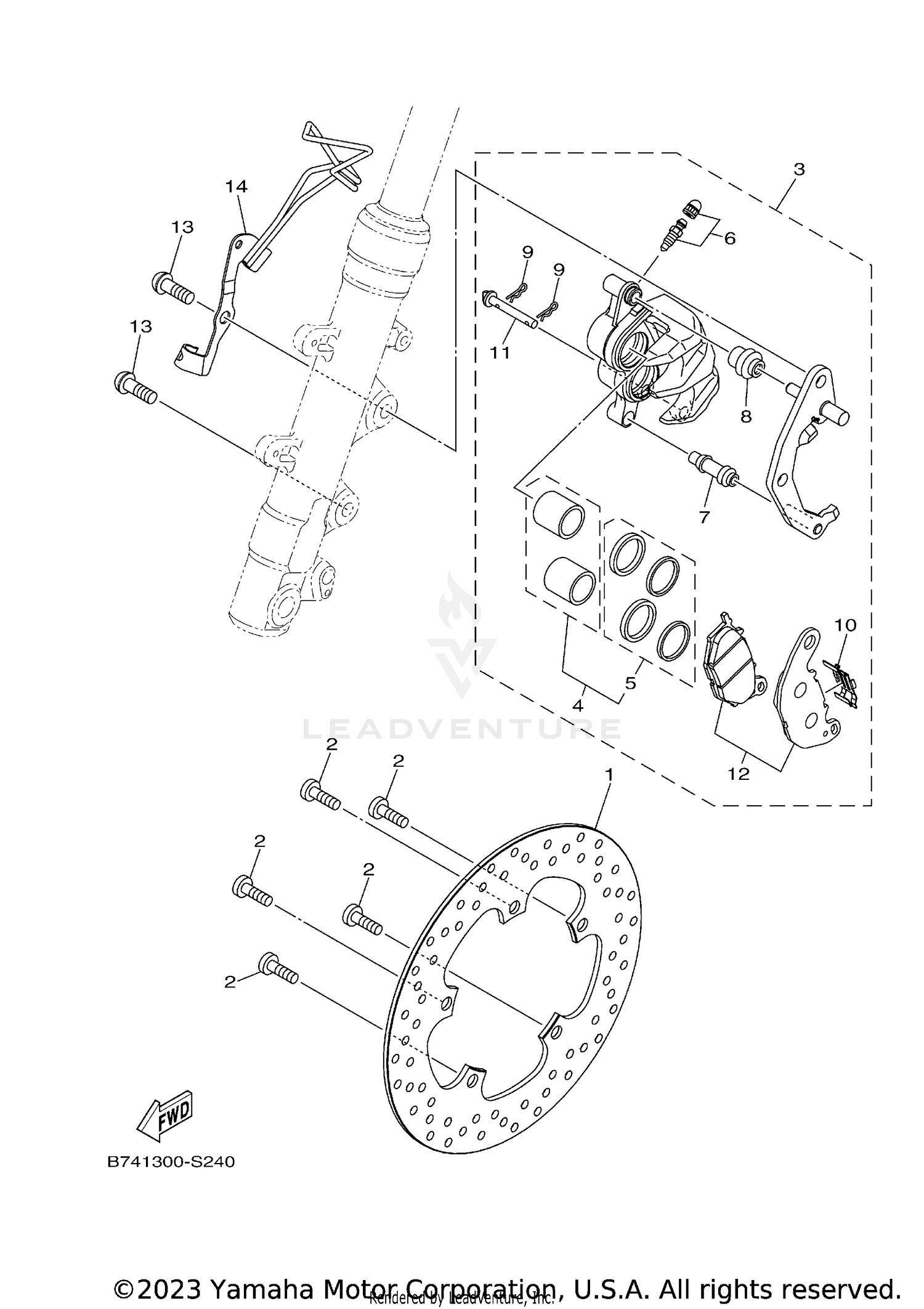

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE (RIGHT)
B74-F582U-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-08232-00
|
$4.05 | ||
|
Unavailable |
|||
|
#3
CALIPER ASSY (RIGHT)
B74-F580U-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
1WD-F5802-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
1WD-F5803-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BLEED SCREW KIT
4C9-W0048-00-00
Superseded by 15B-W0048-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT 2
5YP-F5937-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, CALIPER
5YP-F5917-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
5YP-F5925-01-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUPPORT, PAD
1WD-F5919-00-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PAD
5YP-F5924-00-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRAKE PAD KIT
B74-F5805-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
90149-10804-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, CABLE
B74-F3317-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
