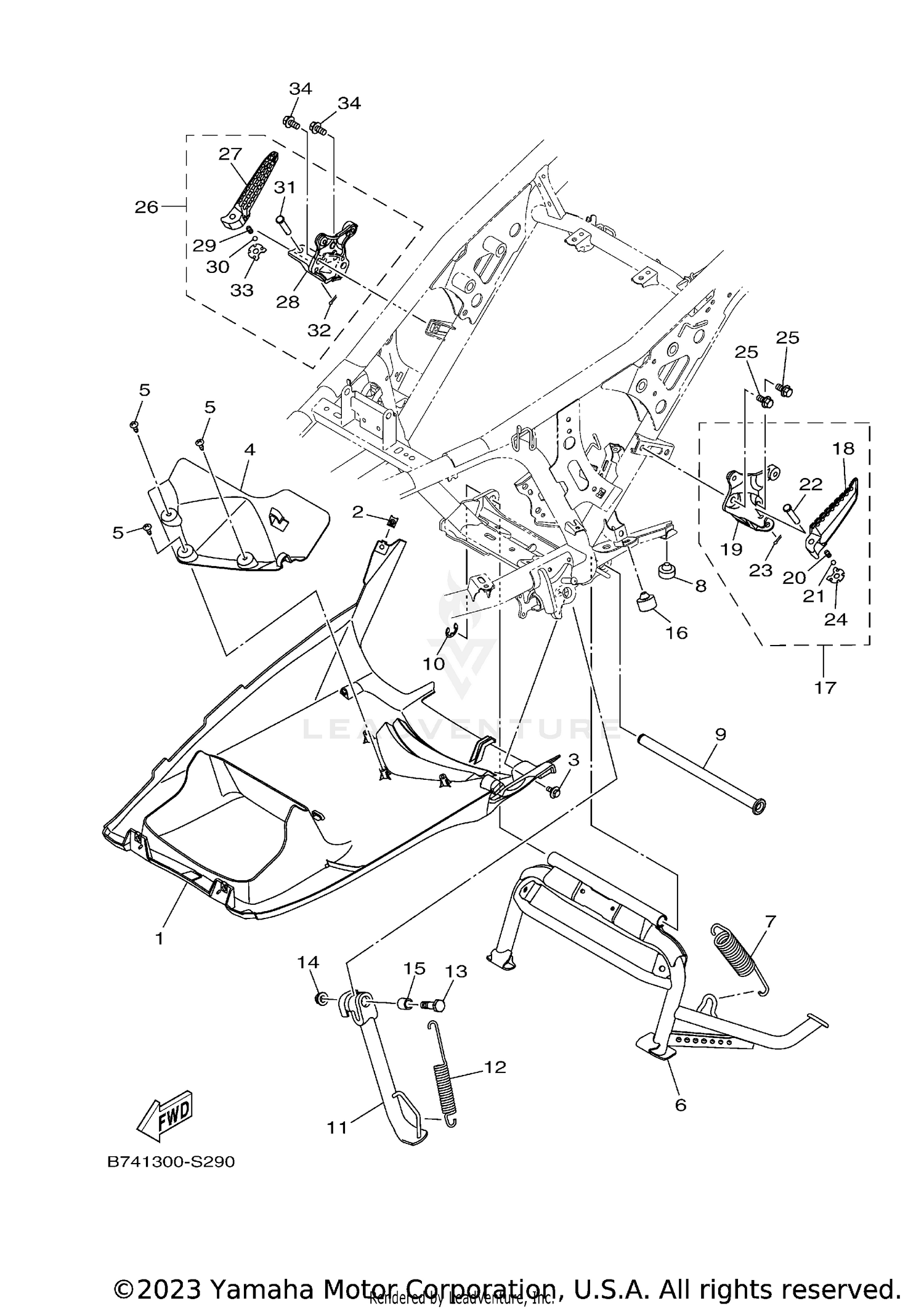

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, UNDER
B74-F8385-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90109-06887-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
DUCT 1
B74-F838N-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
97702-50016-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAND, MAIN
B74-F7111-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, TENSION
90506-40805-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
STOPPER, MAIN STAND
45P-F7114-00-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT
B74-F7261-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
93430-12809-00
Superseded by 93430-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAND, SIDE
B74-F7311-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TENSION
90506-32813-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-10830-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-10849-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOPPER, MAIN STAND
4YY-F7114-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
REAR FOOTREST ASSY 1
B74-F7430-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTREST, REAR 1
2DP-F7431-01-00
Superseded by 2DP-F7431-10-00
|
$6.49 | ||
|
Unavailable |
|||
|
#19
BRACKET 4
B74-F741L-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
93501-04830-00
Superseded by 93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
91702-08038-00
Superseded by 91701-08038-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPECIAL
B74-F7437-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
REAR FOOTREST ASSY 2
B74-F7440-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
FOOTREST, REAR 2
2DP-F7441-01-00
Superseded by 2DP-F7441-10-00
|
$6.49 | ||
|
Unavailable |
|||
|
#28
BRACKET 5
B74-F742L-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Unavailable |
|||
|
#30
BALL
93501-04830-00
Superseded by 93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
PIN
91702-08038-00
Superseded by 91701-08038-00
|
$3.90 | ||
|
Unavailable |
|||
|
#32
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#33
WASHER, SPECIAL
B74-F7437-00-00
|
$2.05 | ||
|
Unavailable |
|||
|
#34
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Unavailable |
|||
