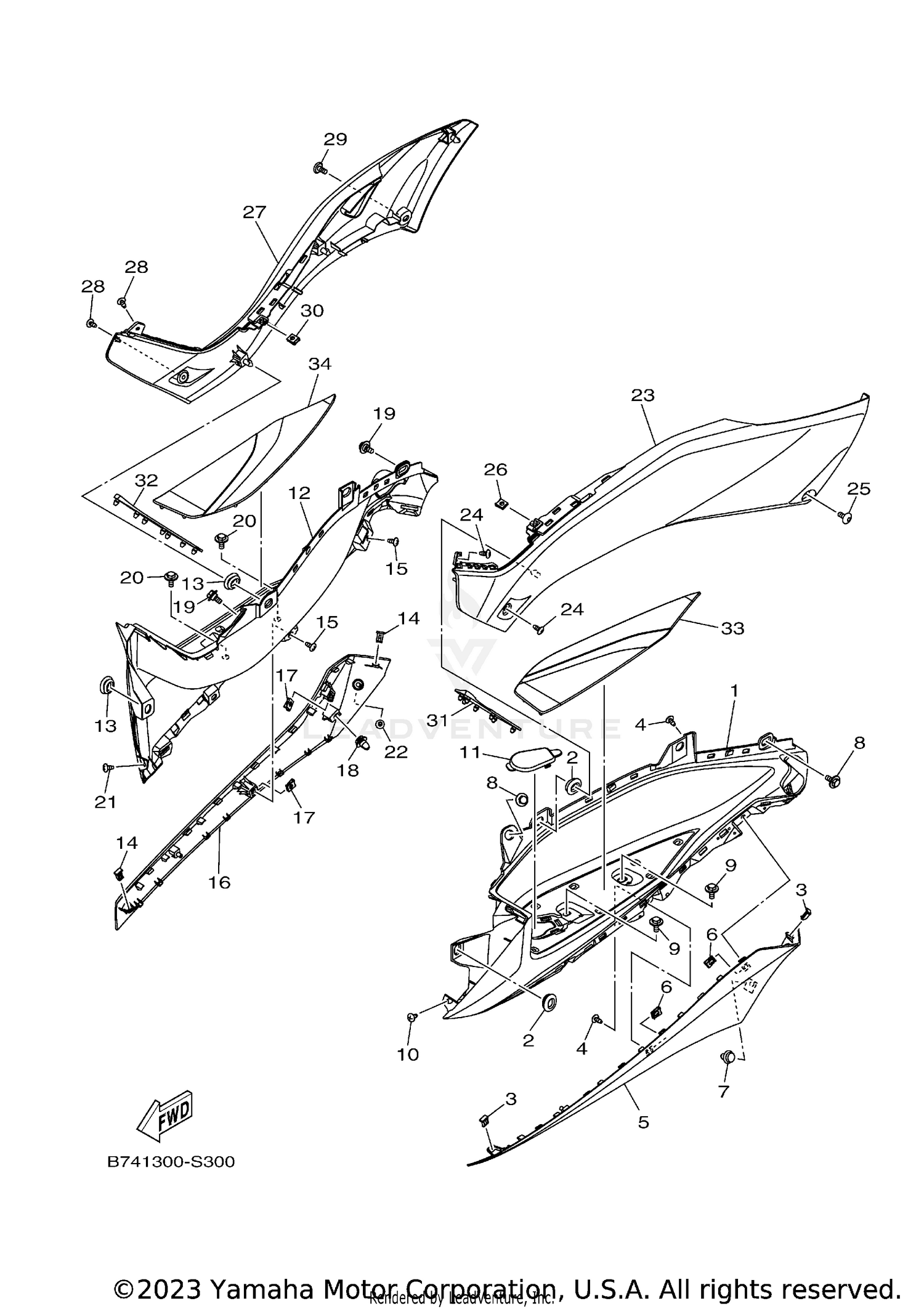

Stand Footrest 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOARD, FOOTREST
B74-F7481-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET
90480-01559-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
90464-04004-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
MOLE, SIDE COVER 1
B74-F171L-00-P1
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIVET
90269-09005-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-06887-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06051-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.45 | ||
|
Unavailable |
|||
|
#11
COVER
2DP-F172W-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOARD, FOOTREST 2
B74-F7488-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-01559-00
|
$4.95 | ||
|
Unavailable |
|||
|
#14
CLAMP
90464-04004-00
|
$0.50 | ||
|
Unavailable |
|||
|
#15
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.45 | ||
|
Unavailable |
|||
|
#16
MOLE, SIDE COVER 2
B74-F171M-00-P1
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#18
RIVET
90269-09005-00
|
$0.60 | ||
|
Unavailable |
|||
|
#19
BOLT
90109-06887-00
|
$1.75 | ||
|
Unavailable |
|||
|
#20
BOLT, WITH WASHER
90119-06051-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.45 | ||
|
Unavailable |
|||
|
#22
SCREW, ROUND TAPPING
90160-05808-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, SIDE 1
B74-F1711-00-P0
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, ROUND TAPPING
90160-05808-00
|
$3.15 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. SOCKET BUTTON
90111-06839-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#27
COVER, SIDE 2
B74-F1721-00-P0
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, ROUND TAPPING
90160-05808-00
|
$3.15 | ||
|
Unavailable |
|||
|
#29
BOLT, HEX. SOCKET BUTTON
90111-06839-00
|
$0.40 | ||
|
Unavailable |
|||
|
#30
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#31
MAT 1
B74-F7483-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
MAT 2
B74-F7484-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
MAT 3
B74-F7493-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
MAT 4
B74-F7494-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
