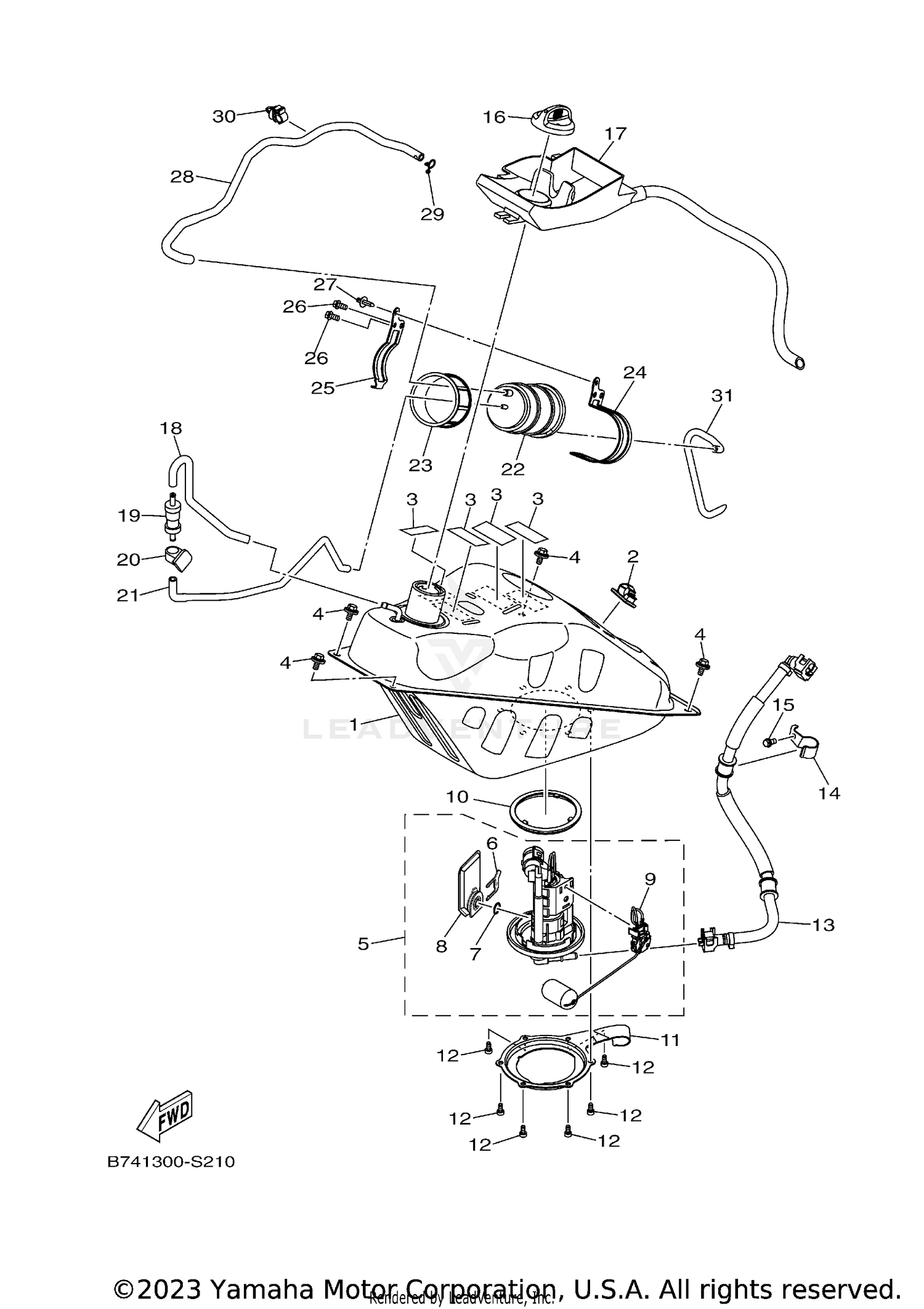

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
B74-F4110-00-00
Superseded by B74-F4110-03-00
|
$47.99 | ||
|
Unavailable |
|||
|
#2
CLAMP
90464-13185-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL
5D9-F414G-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, WITH WASHER
90119-068A2-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUEL PUMP COMP.
B74-E3907-00-00
Superseded by B74-E3907-01-00
|
$222.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP
3C1-F4519-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
3C1-24512-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FILTER
3C1-E3915-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENDER UNIT ASSY, FUEL METER
B74-H5752-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
3C1-F4486-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, FUEL PUMP 1
B74-F4425-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91312-05010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, FUEL 1
B74-E3971-00-00
Superseded by B74-E3971-01-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER
B74-F419A-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95022-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP ASSY
B74-F4610-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, FILLER
B74-F414A-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE 3
B74-F4313-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROLL OVER VALVE ASSY
1DW-F4180-02-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP 1
B74-F4135-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE 4
B74-F4314-10-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CANISTER ASSY
B74-F4170-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND
B74-F483H-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAY
B74-F452E-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY 2
B74-F454E-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95022-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#27
RIVET
90269-06816-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE 5
B74-F4315-10-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-10008-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIPE 6
B74-F4316-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
