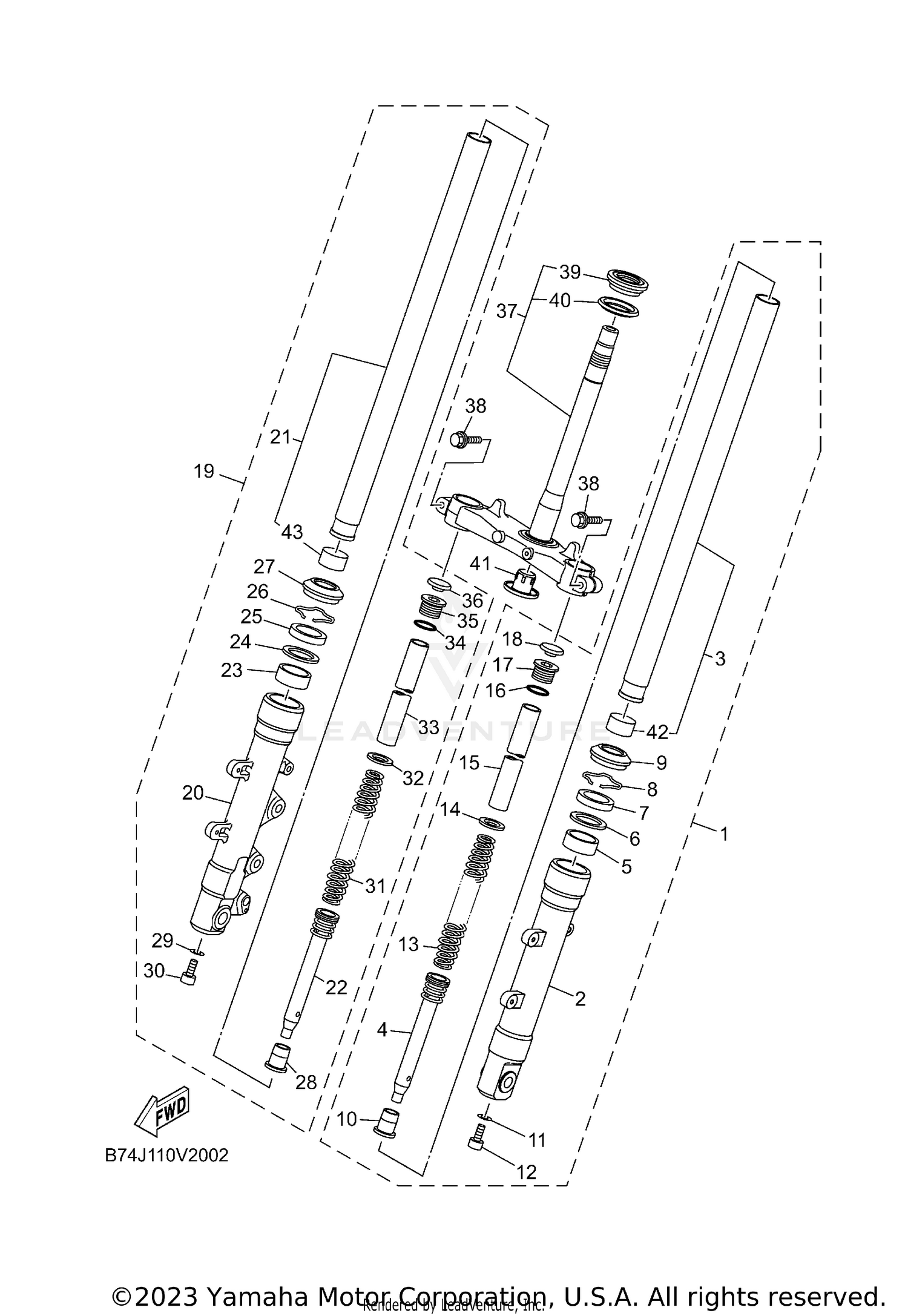

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
B74-F3102-00-00
|
$230.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER (L.H)
B74-F3126-00-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
INNER TUBE COMP.1
B74-F3110-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CYLINDER COMP., FRONT FORK
B74-F3170-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
4HC-23125-20-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
22W-23146-L0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
5BP-F3145-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SNAP
22W-F3156-L0-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
5BP-F3144-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, OIL LOCK
2CM-F3166-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
2BU-F3158-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
31B-F3181-00-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, FRONT FORK
B74-F3141-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING UPPER
2JK-F3149-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
B74-F3118-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
2JK-F3114-00-00
|
$2.65 | ||
|
Unavailable |
|||
|
#17
BOLT, CAP
5BP-F3111-10-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, FRONT FORK
2N4-23168-00-00
Superseded by 1X0-23168-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
FRONT FORK ASSY (R.H)
B74-F3103-00-00
|
$197.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, OUTER 2
B74-F3136-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
INNER TUBE COMP.1
B74-F3110-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#22
CYLINDER COMP., FRONT FORK
B74-F3170-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#23
METAL, SLIDE 1
4HC-23125-20-00
|
$14.99 | ||
|
Unavailable |
|||
|
#24
WASHER, OIL SEAL
22W-23146-L0-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
OIL SEAL
5BP-F3145-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#26
RING, SNAP
22W-F3156-L0-00
|
$11.49 | ||
|
Unavailable |
|||
|
#27
SEAL, DUST
5BP-F3144-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#28
SPACER, OIL LOCK
2CM-F3166-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#29
GASKET
2BU-F3158-00-00
|
$3.20 | ||
|
Unavailable |
|||
|
#30
BOLT, HEXAGON SOCKET HEAD
31B-F3181-00-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
SPRING, FRONT FORK
B74-F3141-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING UPPER
2JK-F3149-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#33
SPACER
B74-F3118-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#34
GASKET
2JK-F3114-00-00
|
$2.65 | ||
|
Unavailable |
|||
|
#35
BOLT, CAP
5BP-F3111-10-00
|
$32.99 | ||
|
Unavailable |
|||
|
#36
CAP, FRONT FORK
2N4-23168-00-00
Superseded by 1X0-23168-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#37
UNDER BRACKET COMP.
B74-F3340-00-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT 1
2JK-F3346-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING
93399-99932-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SEAL, STEERING
3FV-23462-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
COVER, UNDER 1
B65-F3123-00-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#42
PISTON, FRONT FORK
1B7-23171-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#43
PISTON, FRONT FORK
1B7-23171-00-00
|
$18.99 | ||
|
Unavailable |
|||
